Lapp 0036921 / 5M Multi-Conductor Cable
Used
In stock1 unitReady to ship
SSI Encoder Cable
LAPP pre-assembled SSI encoder cable, 5 m length, 8 conductors, 24 AWG, PUR jacket, braided shielding, 10-pin female to 15-pin male connectors, UL and CE approved.24approvedAssembledAWGCableCEConductorEncoderIndustrialLappMultiOlflexprePURServoShieldedSignalSSIUL
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
LAPP Pre-Assembled SSI Encoder Cable “ Part No. 0036921
The LAPP pre-assembled SSI encoder cable is a high-quality multi-conductor cable designed for reliable signal transmission in motion control and feedback systems. Compatible with OLFLEX SERVO FD 798 CP, this cable features durable PUR insulation, braided shielding, and tinned copper conductors to ensure stable performance in industrial environments.
Manufacturer: LAPP
Type: Multi-Conductor Cable
Product Type: Pre-assembled SSI Encoder Cable
Compatible With: OLFLEX SERVO FD 798 CP
Part No.: 0036921

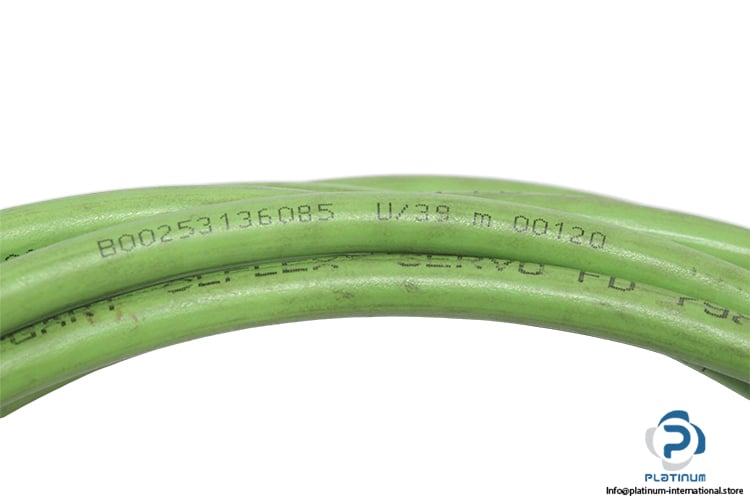

Code: B00253136085 / 00120
Cable Length: 5 m

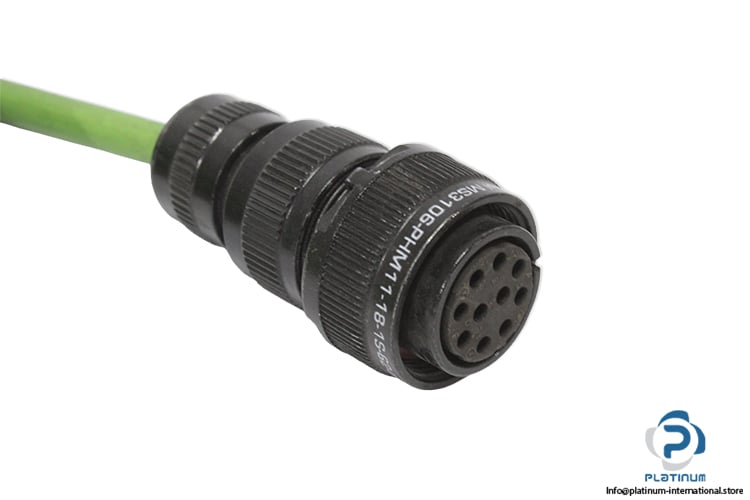

Connector 1: 10-Pins Female

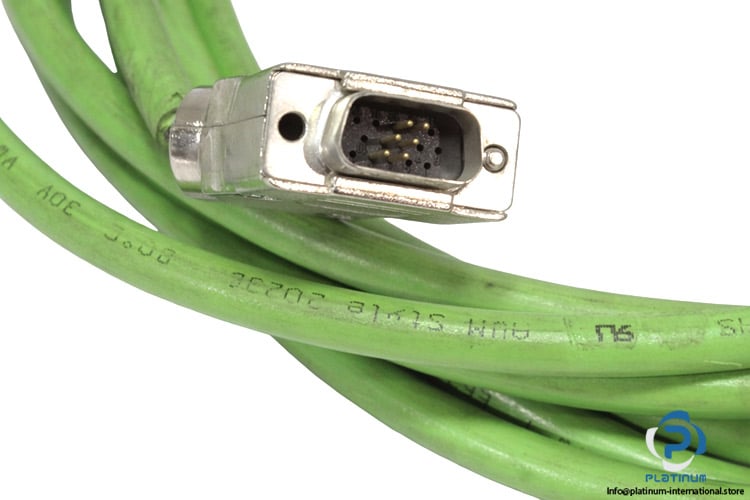

Connector 2: 15-Pins Male

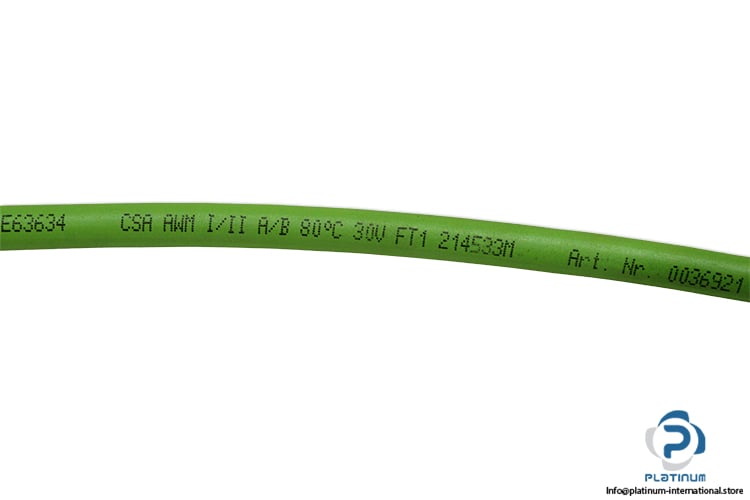

| Cable Information | AWM STYLE 20236, 30 V, 80 C |
| AWG / Gauge | 24 |
| Number Of Conductors | 8 |
| Conductor Material | Tinned Copper |
| Conductor Stranding | Stranded |
| Shielding | Braid |
| Jacket Color | Green |
| Jacket Material | Polyurethane (PUR) |
| Nominal Outer Diameter (Inch) | 0.299 in |
| Nominal Outer Diameter (mm) | 7.6 mm |
| Voltage | 30 V |
| Temperature Range (°F) | -40°F to +176°F |
| Temperature Range (°C) | -40°C to +80°C |
| Attributes | Multi-Conductor |
| Standards / Approvals | UL Approved, CE Approved |
