Lapp AB-C3-M8MS-10,0PVC Sensor/Actuator Cable
New
In stock1 unitReady to ship
Sensor/Actuator Cable
LAPP AB-C3-M8MS-10,0PVC 10-meter sensor/actuator cable with M8 male connectors, PVC insulation, IP65/IP67/IP68 protection, and 60 V DC / 48 V AC rating for industrial automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

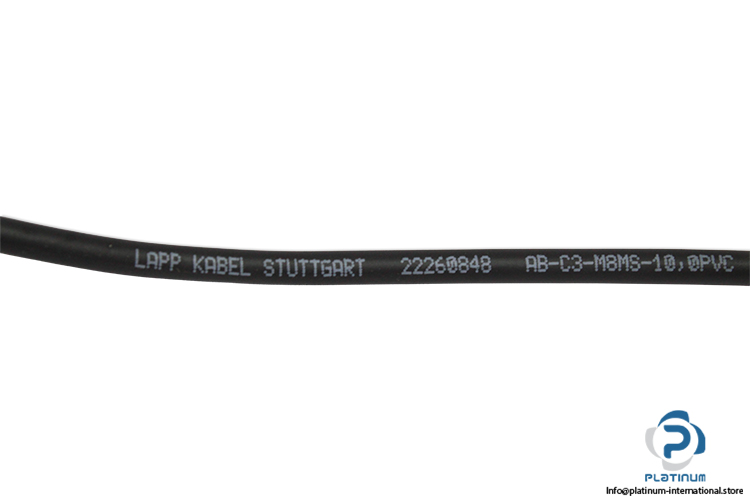

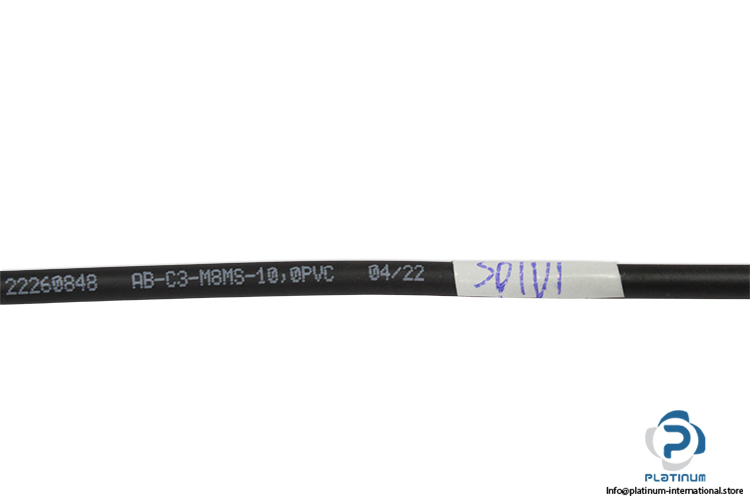

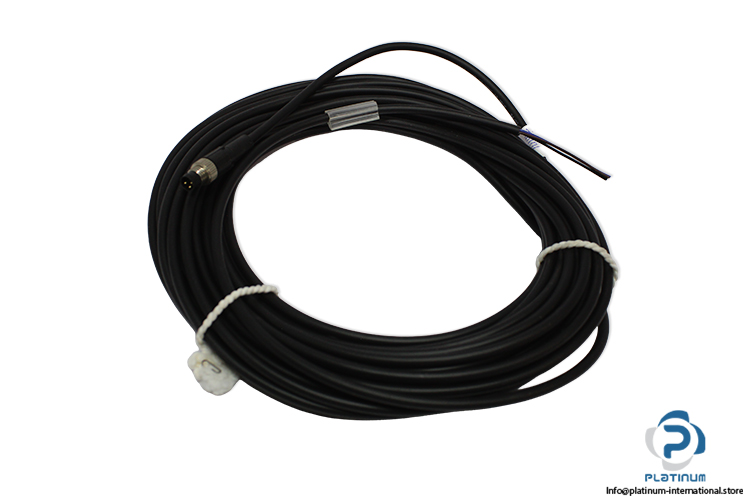

LAPP AB-C3-M8MS-10,0PVC Sensor/Actuator Cable
The LAPP AB-C3-M8MS-10,0PVC is a high-quality sensor/actuator cable designed for reliable signal and power transmission in industrial automation systems. With M8 male connectors, durable PVC insulation, and multi-level IP protection, this cable ensures stable performance in demanding environments.
Manufacturer: LAPP
Type: Sensor / Actuator Cable
Model: AB-C3-M8MS-10,0PVC
Part No.: 22260848
Mechanical Properties (Plug):
Ambient Temperature:
-25 °C To +90 °C (Plug / Jack)
-25 °C To +80 °C (-13°F To 176°F) (Cable, Fixed Installation)
-10 °C To +80 °C (14°F To 176°F) (Cable, Movable Installation)
| Cable Length | 10 M |
| Connector 1 | 3-Pins | Male |
| Connector 2 | 3-Wires / Male |
| Rated Voltage | 60 V DC / 48 V AC |
| Rated Current | 4 A |
| Overvoltage Category | II |
| Pollution Degree | 3 |
| Inflammability Class | In Accordance With UL 94 HB |
| Contact Material | CuSn |
| Contact Carrier Material | TPU GF |
| Contact Surface Material | Ni/Au |
| Degree Of Protection | IP65 / IP67 / IP68 |
| Coding | A-Standard |
| Tightening Torque | 0,2 Nm (M8-Connector) |
| Outer Coating Material | PVC |
| Wire Insulation Material | PVC |
| Insulation Resistance | 100 MΩ*km |
| Conductor Resistance | Max. 79 Ω/km |
| Flame Resistance | Acc. To UL-Style 2464 |
| Oil Resistance | Acc. To DIN EN 60811-2-1 |
| Standards / Approvals | IEC 61076-2-104 E249137 |
