LDK UCP 205 Pillow Block Ball Bearing Unit
New
Available on request
Pillow Block Bearing Unit
LDK UCP205 pillow block ball bearing unit with 25 mm bore, UC205 insert bearing, cast iron housing, and set screw locking for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

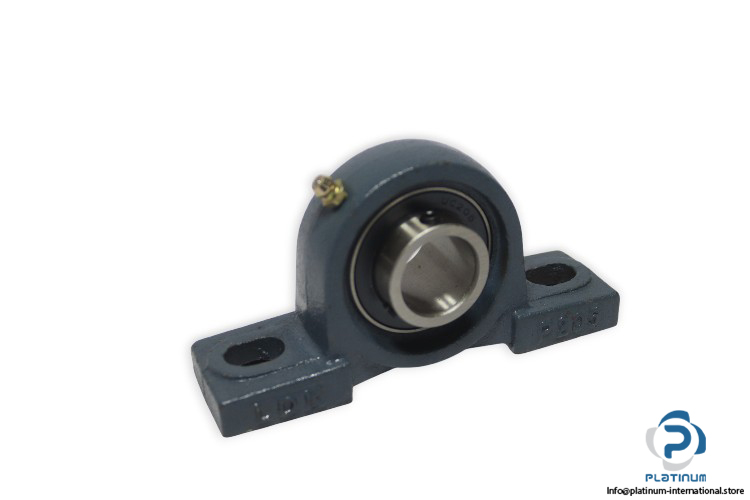

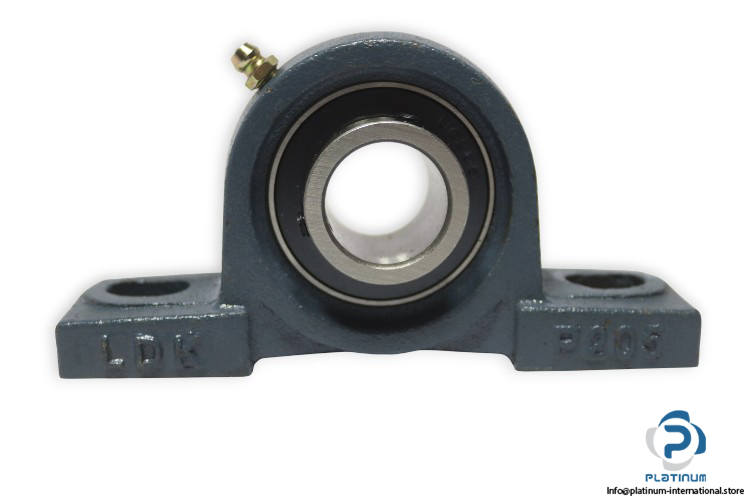

LDK UCP205 Pillow Block Ball Bearing Unit
The LDK UCP205 pillow block bearing unit is a robust and reliable mounted bearing solution designed for industrial applications requiring stable shaft support and easy installation. It combines a UC205 insert bearing with a P205 cast iron housing for long service life and dependable performance.
Manufacturer: LDK
Type: Pillow Block Ball Bearing Unit
Model: UCP205

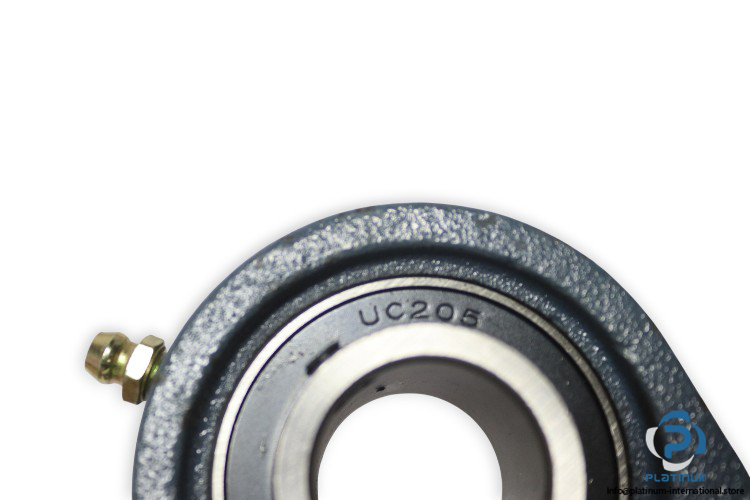

Bearing Number: UC205
Housing Number: P205

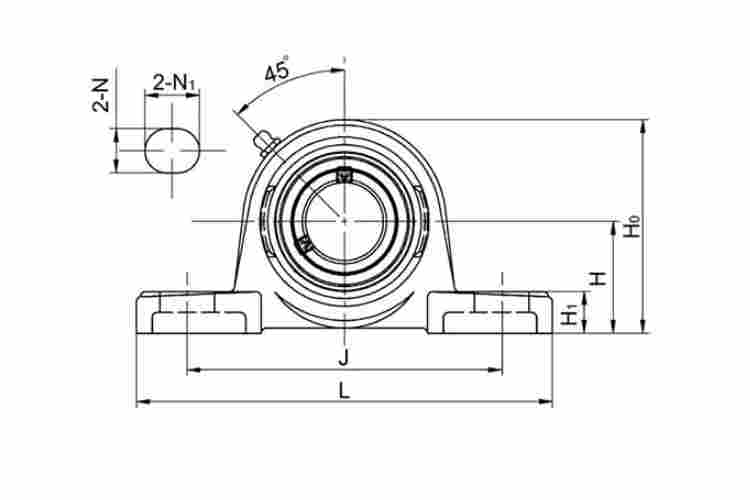

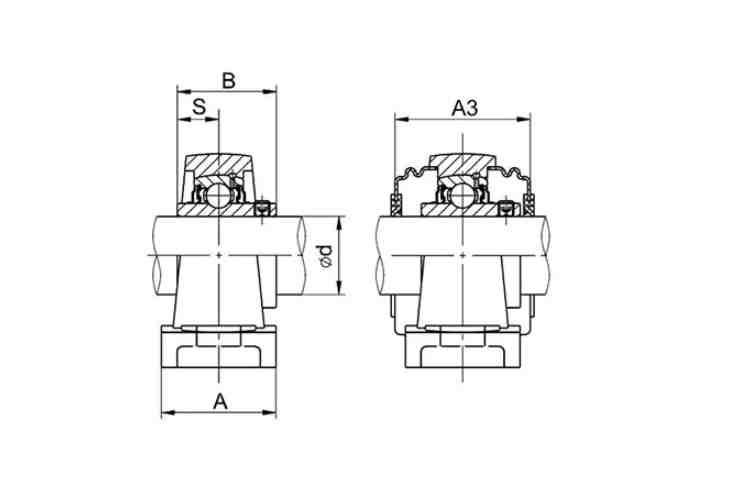

| Bore Diameter (d) | 25 mm |
| H | 36.5 mm |
| L | 140 mm |
| J | 105 mm |
| A | 38 mm |
| N | 13 mm |
| N1 | 19 mm |
| H1 | 15 mm |
| Ho | 71 mm |
| B | 34.1 mm |
| S | 14.3 mm |
| A3 | 48 mm |
| Bolt Size | M10 |
| Locking Device | Set Screw |
| Material | Cast Iron |
