Leeson M71-12 Permanent Magnet Motor

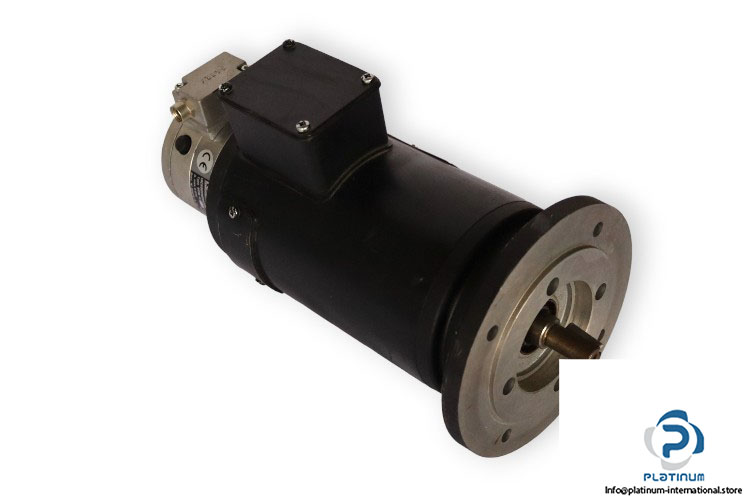

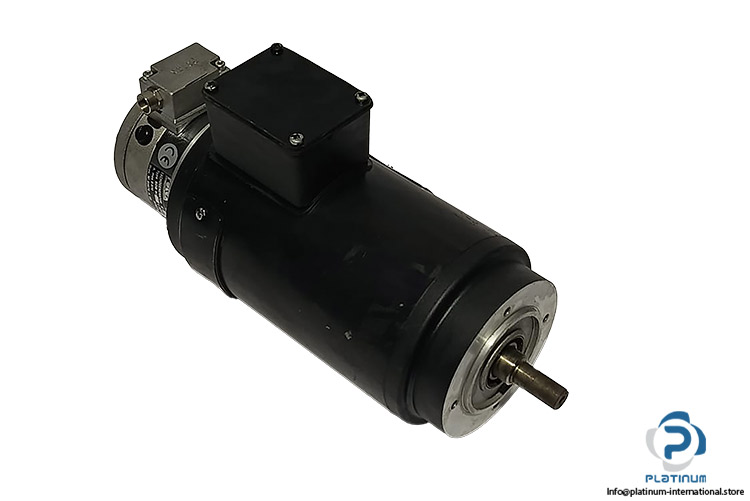

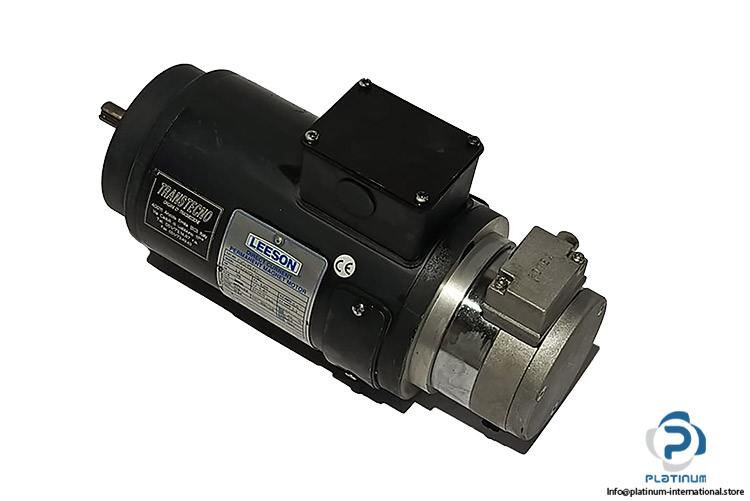

LEESON C142D28NZ5A Permanent Magnet Motor with ROTEX SDB60 Tachogenerator

This assembly combines a high-performance permanent magnet DC motor from LEESON with a precision ROTEX tachogenerator. It is designed for applications requiring accurate speed control, stable torque output, and reliable feedback in industrial drive systems.

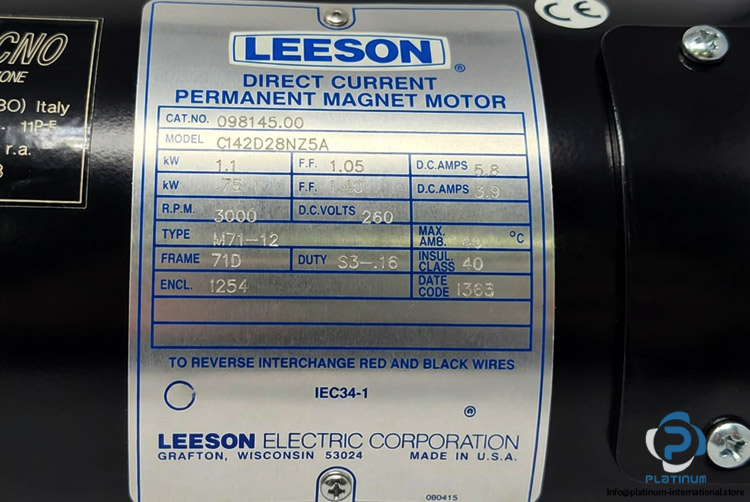

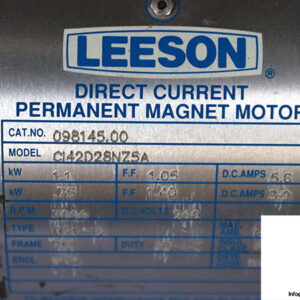

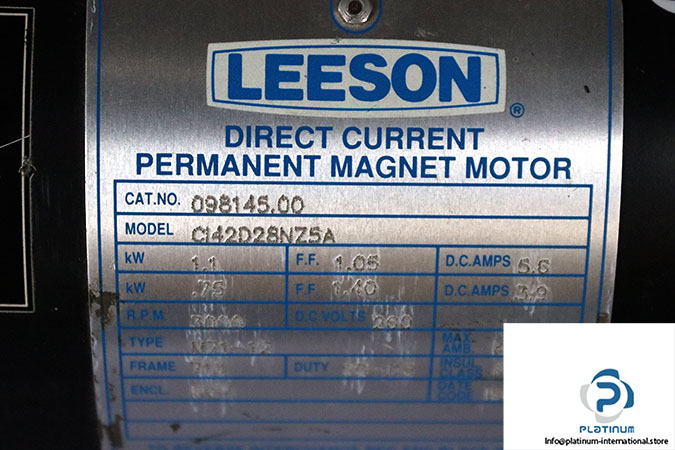

Manufacturer: LEESON
Type: Permanent Magnet Motor
Model: C142D28NZ5A (M71-12)
Cat. No.: 098145.00

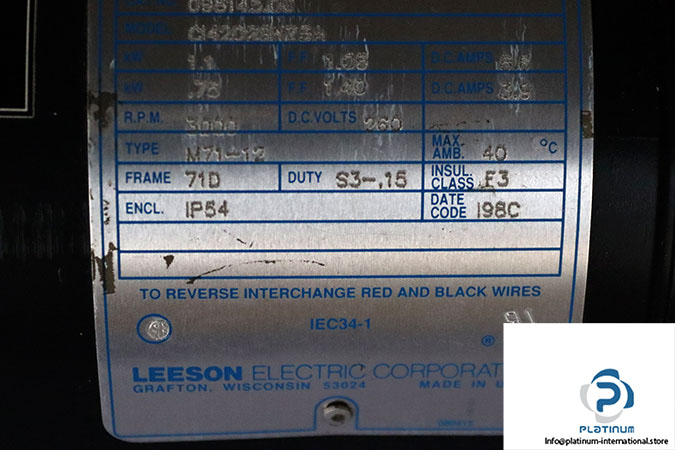

Motor Technical Information

Frame: 71D
Rated Voltage: 260 VDC
Rated Current: 5.8 / 3.9 ADC
Rated Power: 1.1 / 0.75 kW
Rated Speed: 3000 r/min
Inclination: 1254
Max. Temperature: 40°C
Form Factor: 1.05 / 1.40
Duty: S3-0.16
Insulation Class: F3

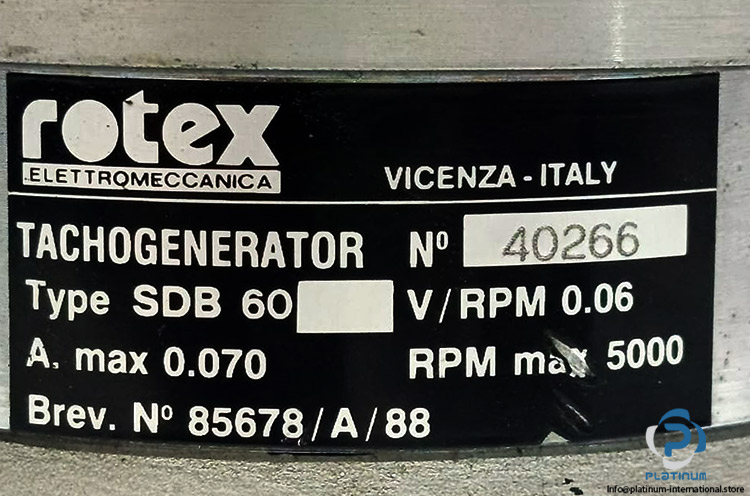

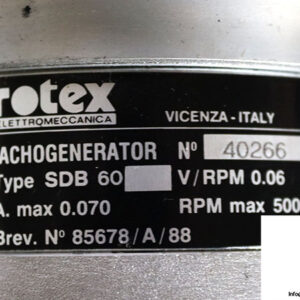

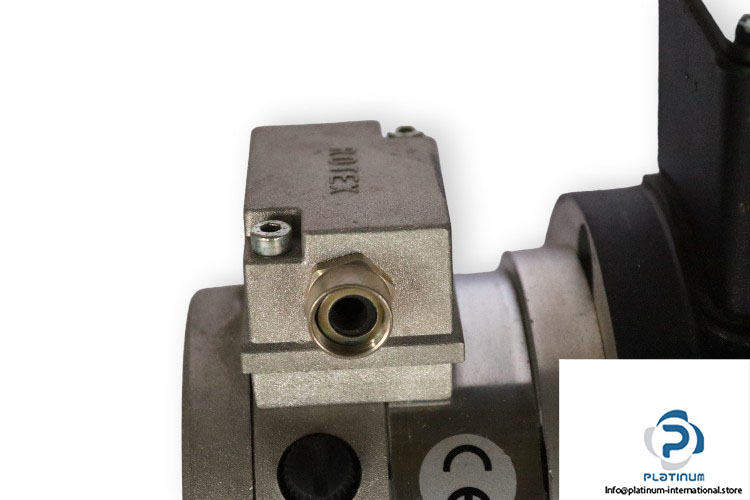

Attached Device: ROTEX Tachogenerator

Manufacturer: ROTEX
Type: Tachogenerator
Model: SDB60
No.: 40266
Code: 85678/A/88

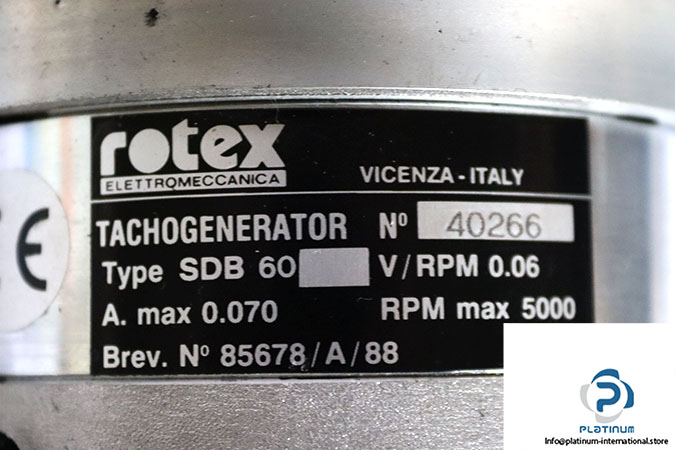

Tachogenerator Technical Information

Output Voltage: 60 V
Max. Speed: 5000 RPM
Max. Current: 0.070 A
Nominal Current: 5 mA
Isolation Class: B
Protection Class: IP54
Number of Poles: 2
