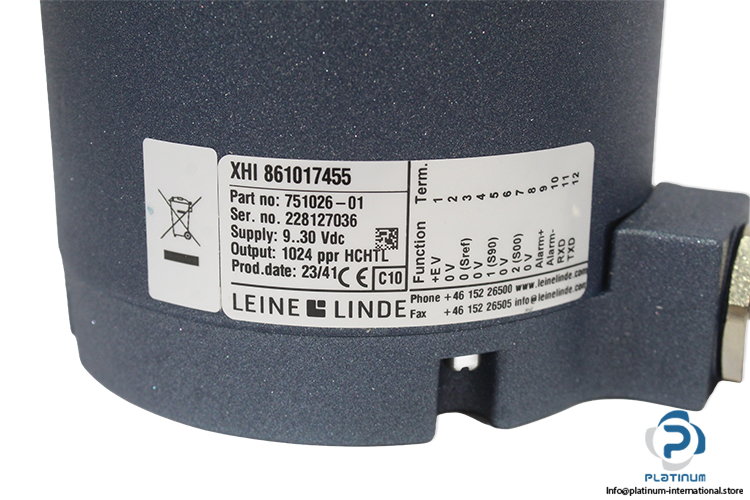

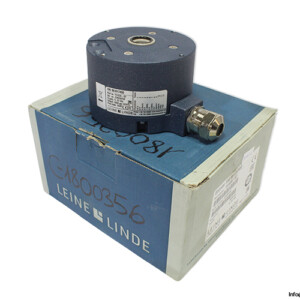

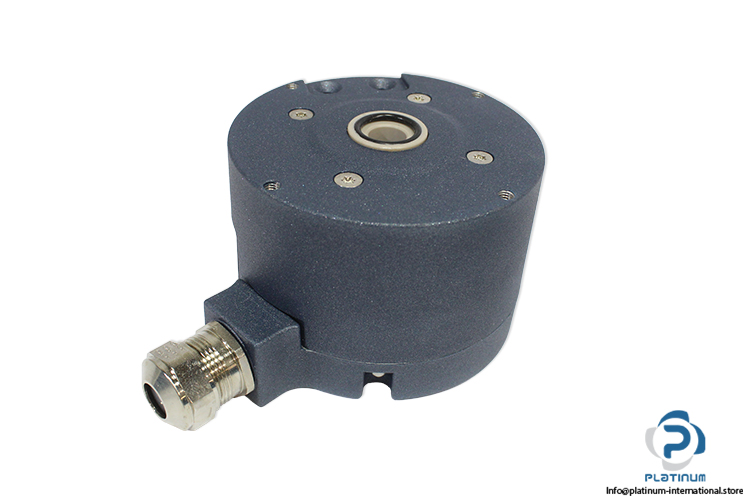

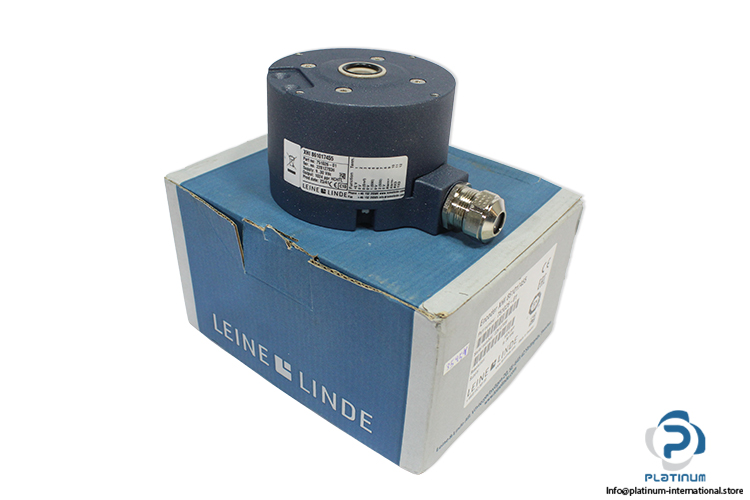

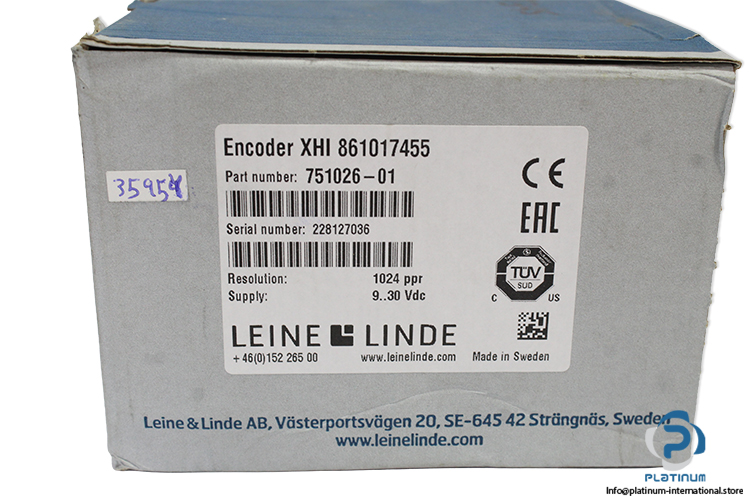

Leine Linde XHI 861017455 Incremental Encoder
New
In stock2 unitsReady to ship
1 333,33$
Incremental Encoder Leine Linde incremental encoder with 1024 ppr resolution, HTL output, blind hollow shaft, and IP66 protection for reliable industrial feedback applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 751026-01 |
| Serial number | 228127036 |
| Cover material | Aluminium (coated) |
| Shaft load (axial/radial) | 100 N / 300 N |
| Rotational speed max | 6000 rpm |
| Shaft material | Stainless steel with insulated peek insert |
| Short circuit protected | Yes |
| Polarity protected | Yes |
| Operating temperature | 20 °C .. +85 °C |
| Ingress protection class | [IEC 60529] IP67 (IP66 at shaft inlet) |
| Vibration [IEC 6006826] | 200 m/s² |
| Shock [IEC 60068227] | 1500 m/s² |
| Current consumption | 60 mA at 24 Vdc (Max. 80 mA) |
| Output load | ± 40 Ma |
| Output frequency max | 200 kHz |
| Cable length max | 350 m at 100 kHz |
| Channel separation | 90° el ± 25° el |
| Dividing error | ±50° el |
| Shaft type | dia 12 mm blind hollow shaft |
| Flange type | 86 flange |
| Resolution | 1024 ppr |
| Power supply | 9 - 30 Vdc |
| Output signal | HCHTL |
| Connection type | Cable gland + ADS Classic |
| Connecting direction | Radial Cable gland dimension M20 for Ø8 11 mm cables |
| Number of channels | 3 |
| Advanced Diagnostic System | ADS Classic |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100668 |
| Weight | 1,15 |
