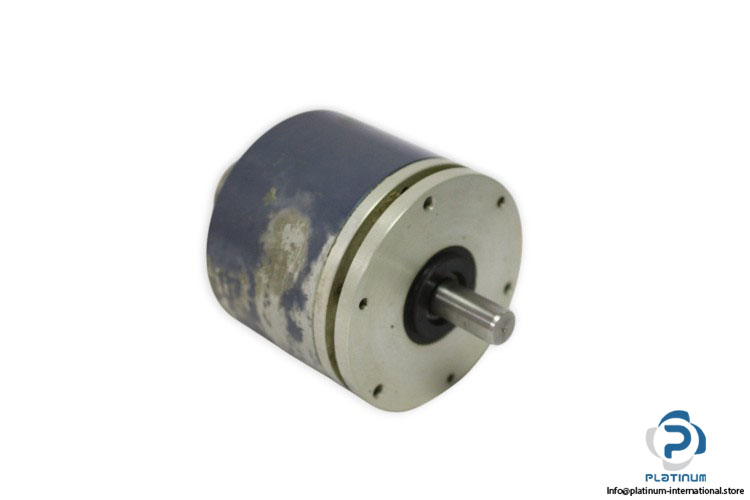

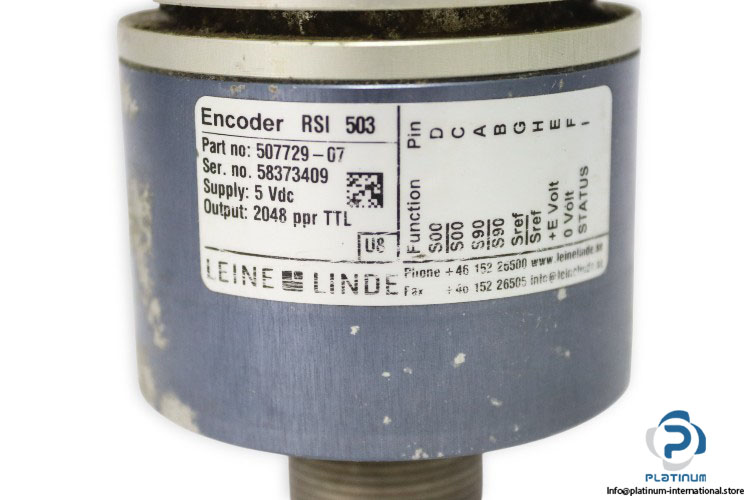

Leine Linde RSI 503 507729-07 Incremental Encoder
Used
In stock1 unitReady to ship
333,33$
INCREMENTAL ENCODER
Leine Linde RSI 503 incremental encoder with 2048 PPR resolution, 10 mm shaft, TTL output, IP67 protection, and high durability for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
LEINE LINDE RSI503 INCREMENTAL ENCODER
The Leine Linde RSI 503 is a high-performance incremental encoder designed for precise speed and position feedback in demanding industrial environments. Built for durability and accuracy, it ensures reliable operation even under challenging conditions.
Manufacturer: LEINE LINDE
Type: Incremental Encoder
Model: RSI 503
Part No.: 507729-07
| Series | RSI |
| Shaft Diameter | 10 mm |
| Lines Per Resolution No. | 2048 PPR |
| Operating Voltage | 5 V DC |
| Load Current Max. | 20 mA |
| Rotational Speed Max. | 6000 rpm |
| Shaft Load (Axial/Radial) | 50 N / 60 N |
| Output Signal | TTL |
| Flange Diameter | 68 mm |

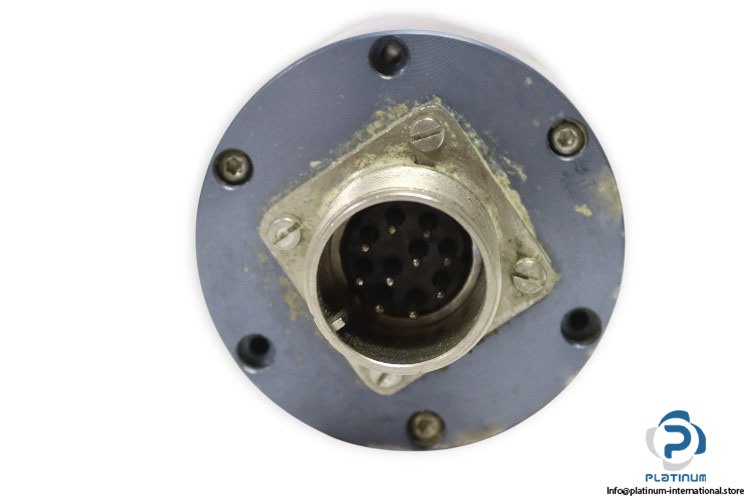

| Connection | MS Connector, 10-Pin, Axial |
| Protection Class | IP67 |
| Temperature Range | -40 / 70 °C |
| Length x Diameter | 76.5 x 60 mm |
