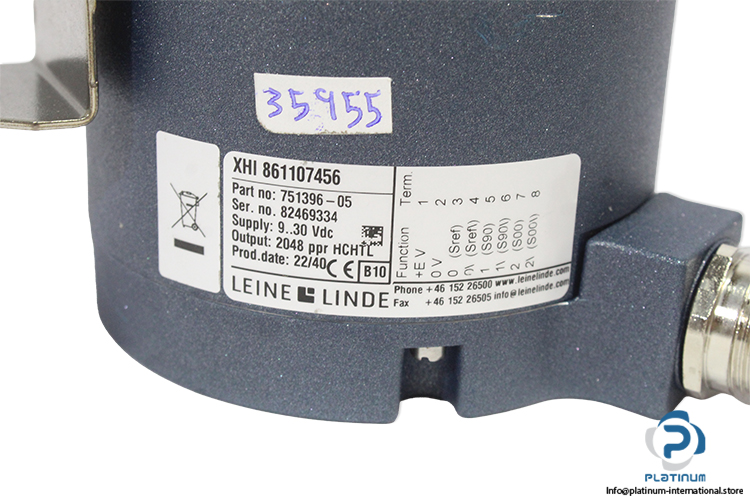

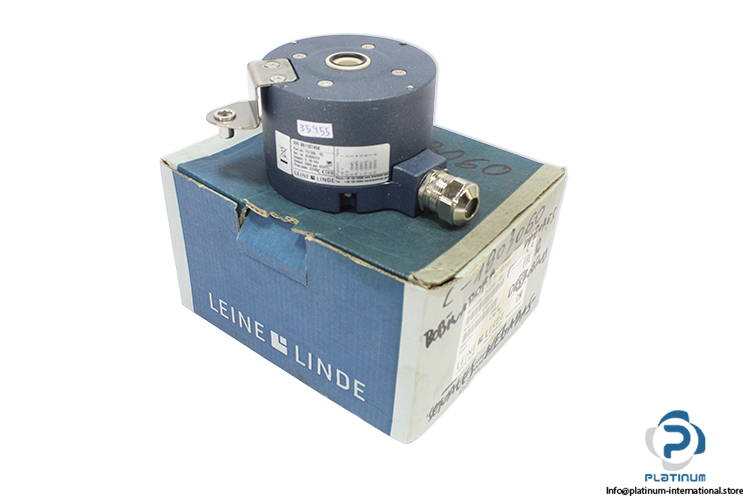

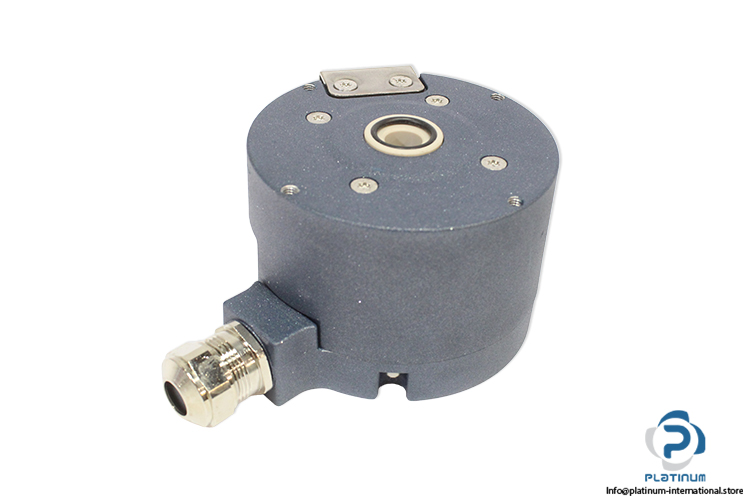

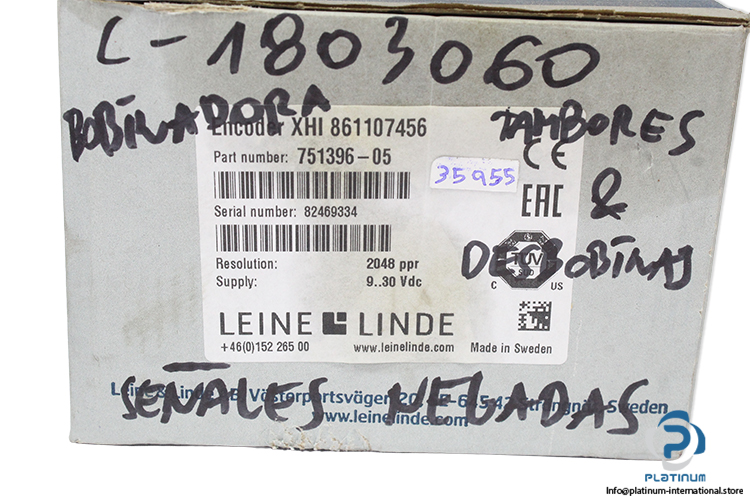

Leine Linde XHI 861107456 Incremental Encoder

In stock3 unitsReady to ship

1 333,33$

Incremental Encoder Leine Linde incremental encoder with 2048 ppr resolution, HTL output, blind hollow shaft, and IP66 protection for reliable industrial feedback applications.

Manufacturer
LEINE LINDE
SKU
1100669
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Part No.751396-05
Serial number82469334
Cover materialAluminium (coated)
Shaft load (axial/radial)100 N / 300 N
Rotational speed max6000 rpm
Shaft materialStainless steel with insulated peek insert
Short circuit protectedYes
Polarity protectedYes
Operating temperature20 °C .. +85 °C
Ingress protection class[IEC 60529] IP67 (IP66 at shaft inlet)
Vibration [IEC 6006826]200 m/s²
Shock [IEC 60068227]1500 m/s²
Current consumption60 mA at 24 Vdc (Max. 80 mA)
Output load± 40 Ma
Output frequency max200 kHz
Cable length max350 m at 100 kHz
Channel separation90° el ± 25° el
Dividing error±50° el
Shaft typedia 12 mm blind hollow shaft
Flange type86 flange
Resolution2048 ppr
Power supply9 - 30 Vdc
Output signalHCHTL
Connection typeCable gland
Number of channels6
Stock keyCON003
ConditionNew
SKU1100669
Weight1,17
