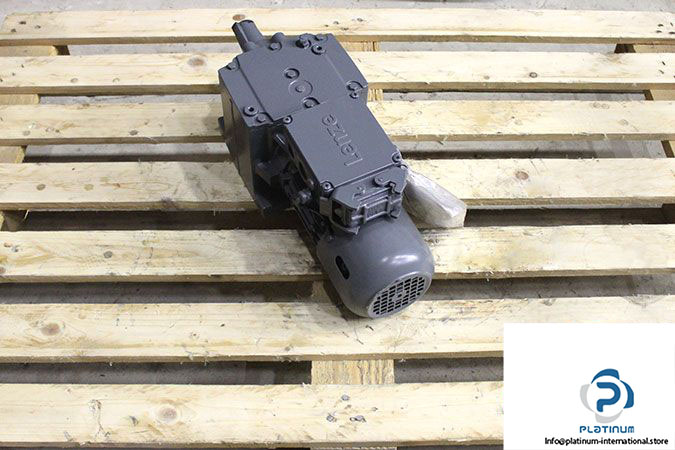

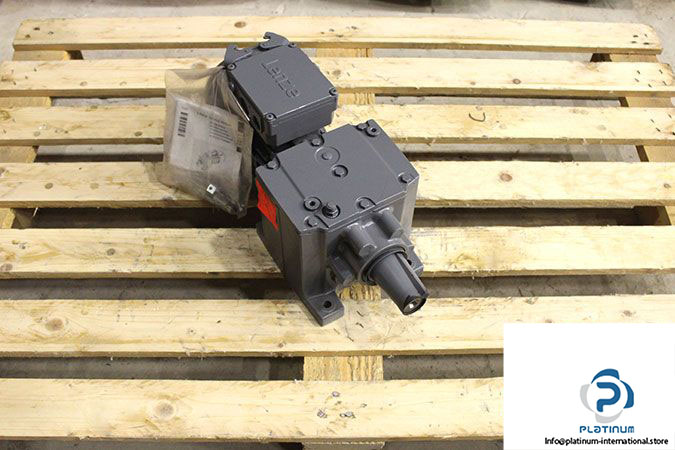

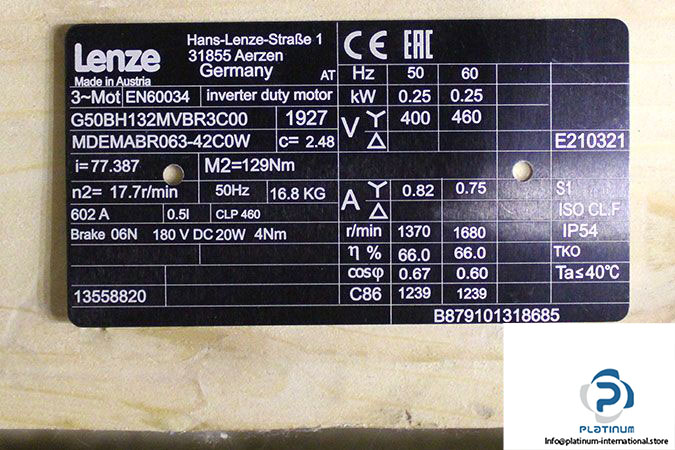

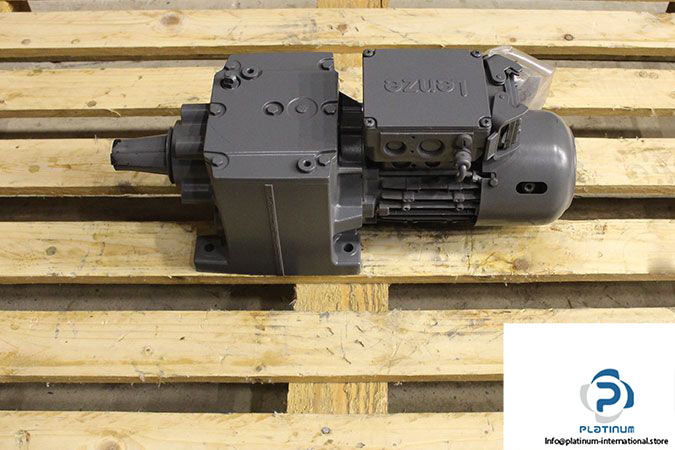

Lenze G50BH132MVBR3C00 Helical Gear Motor
Manufacturer: Lenze
Type: Helical Gear Motors
Model: G50BH132MVBR3C00
Total Ratio [i]: 77.387
Rated Speed [r/min]: 17.7
Rated Torque [Nm]: 129
Load Capacity: 2.48
Lubricant Type: CLP460
Lubricant Amount [L]: 0.5
Motor Model: MDEMABR063-42C0W
Frequency [Hz]: 50/60
Rated Power [kW]: 0.25/0.25
Motor Voltage [V] / Conn. Type: 400/460 Star
Motor Current [A]: 0.82/0.75
Rated Speed [r/min]: 1370/1680
Efficiency [ ]: 66.0/66.0
Power Factor: 0.67/0.60
Brake Type: 06N
Brake Voltage [VDC]: 180
Brake Power [W]: 20
Brake Torque [Nm]: 4
Ambient Temperature [°C]: 40
Duty: S1
Insulation Class: F
Protection Class [IP]: 54
Weight [kg]: 15.7
