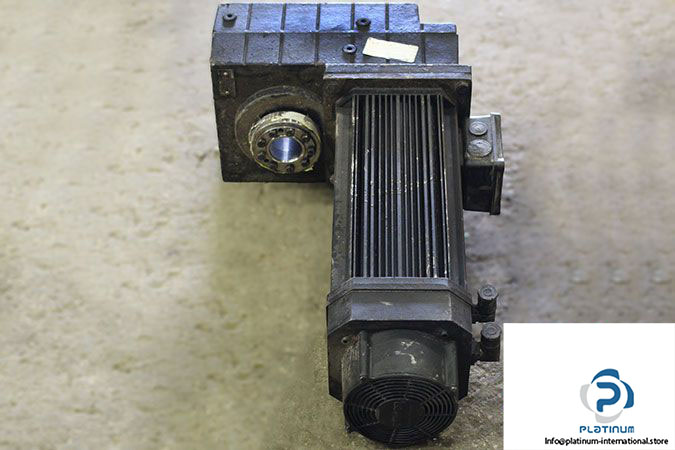

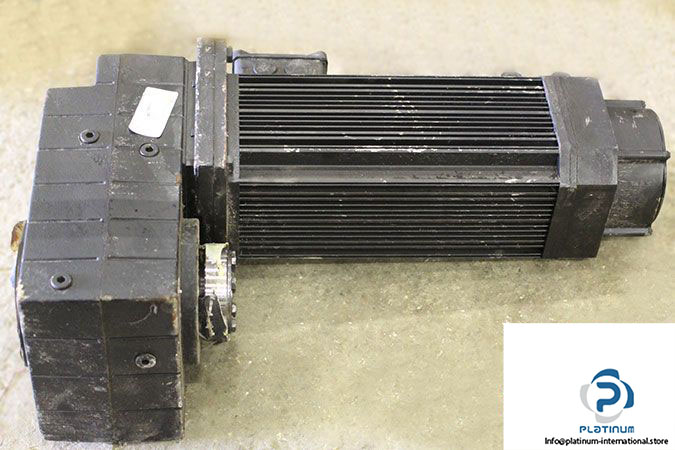

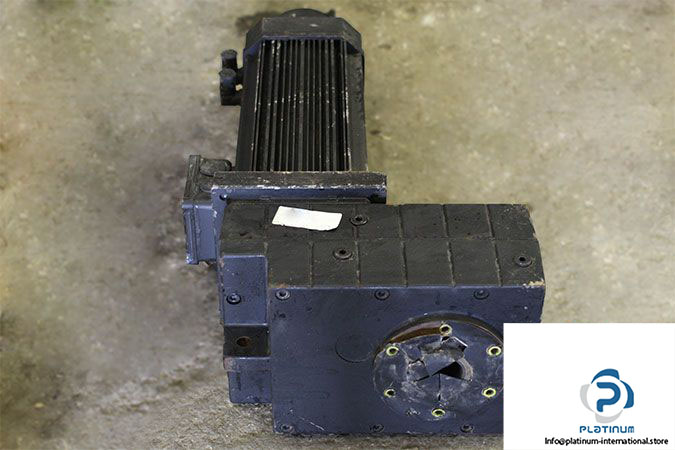

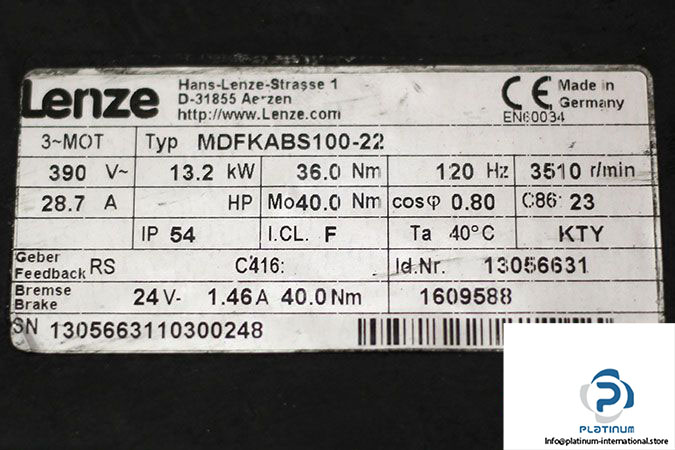

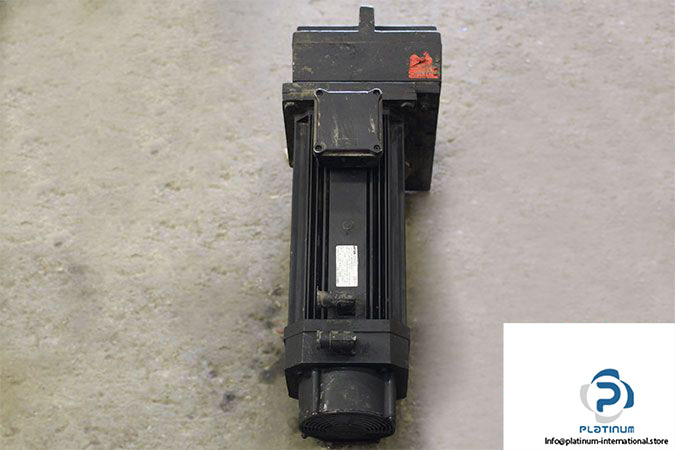

Lenze MDFKABS100-22 Geared Servo Motor

Manufacturer: LENZE

Type: GEARED SERVO MOTOR

Model: MDFKABS100-22

ID. Nr: 13056631

Input Voltage: 390 V

Input Current: 28.7 A

Speed: 3510 r/min

Output Power: 13.2 kw

Frequency: 120 Hz

Torque: 36.0 Nm

Temperature: 40 °C

Voltage Brake: 24 V

Current Brake: 1.46 A

Max. Torque Brake: 40 Nm

Protection Class: IP 54

Insulation Class: F

Weight: 110 kg

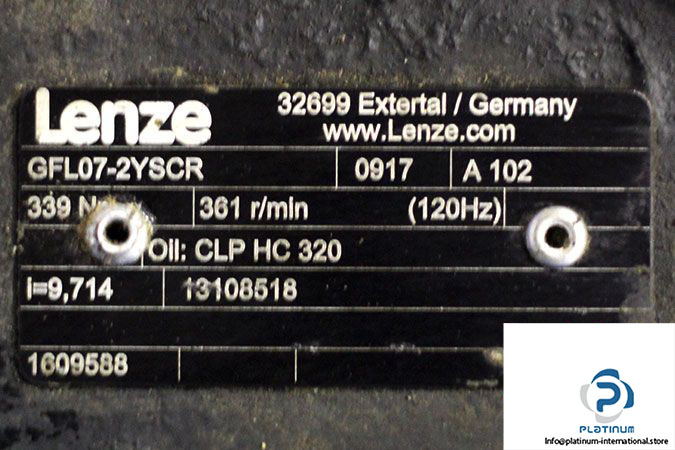

LENZE GFL07-2YSCR 0917 A 102 SERVO GEARBOX

Applications: High Positioning Accuracy, Cyclic / Highly Dynamic Applications

Stages: 2-stage

Size: 07

Frequency: 120 Hz

Torque: 339 Nm

Speed: 361 r/min

Ratio: 9.714
