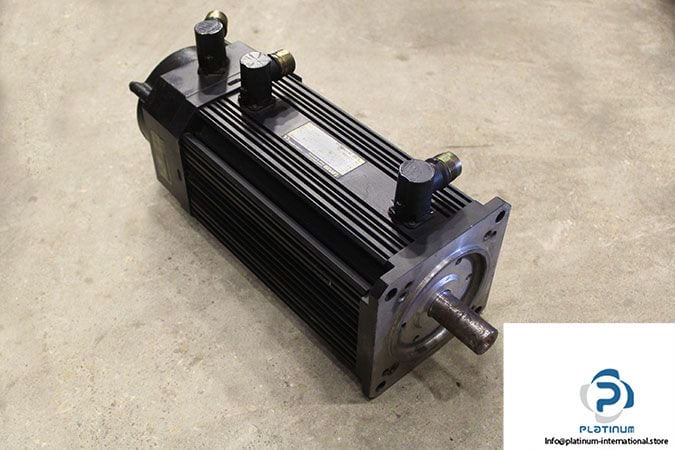

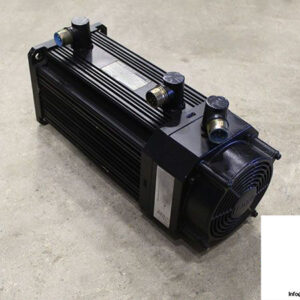

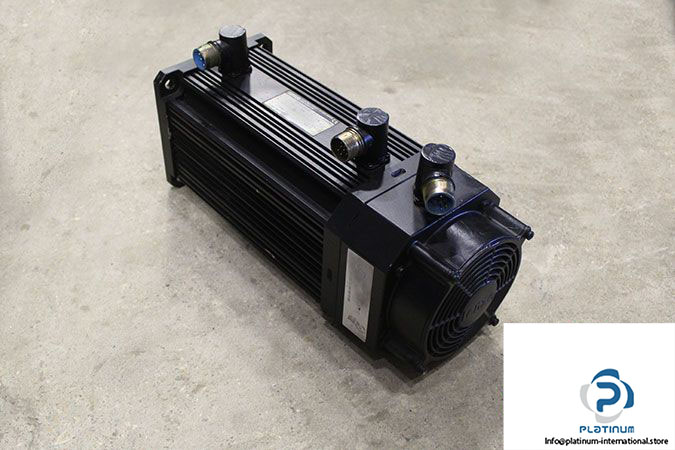

Lenze MDFKARS080-22 Synchronous Servo Motor

Manufacturer: Lenze

Type: Synchronous Servomotor

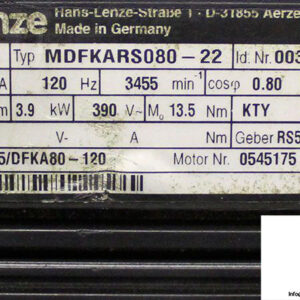

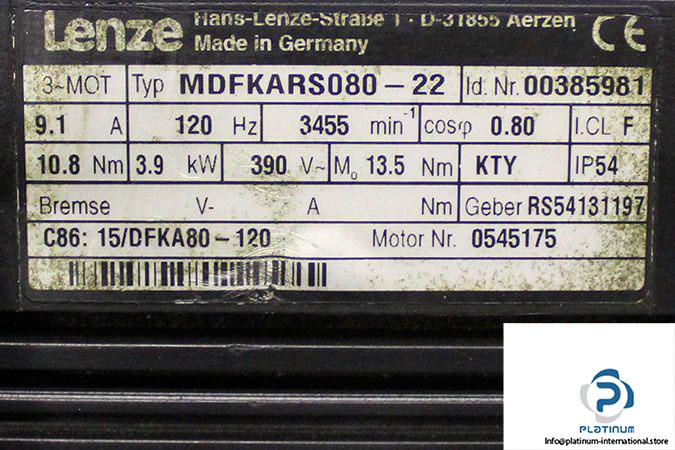

Model: MDFKARS08022

Rated Voltage [V]: 390

Rated Current [A]: 9.1

Rated Torque [Nm]: 10.8

Stall Torque [Nm]: 13.5

Rated Power [kW]: 3.9

Rated Speed [min^-1]: 3455

Rated Frequency [Hz]: 120

Power Factor: 0.80

Insulation Class: F

Protection Class [IP]: 54

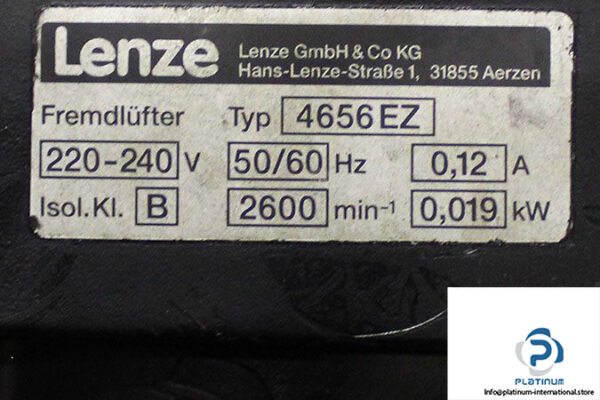

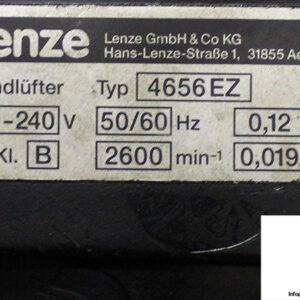

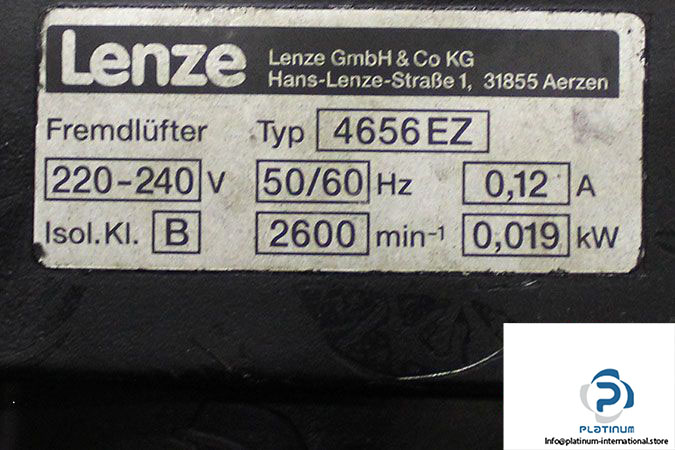

Attachment: LENZE 4656EZ MOTOR FAN

Manufacturer: Lenze

Type: Motor Fan

Model: 4656 EZ

Rated Voltage[V]: 220/240

Rated Current [A]: 0.12

Rated Speed [min^-1]: 2600

Rated Power [kW]: 0.019

Frequency [Hz]: 50/60

Isolation Class: B

Protection Class [IP]: 55

Gross Weight [kg]: 16.4
