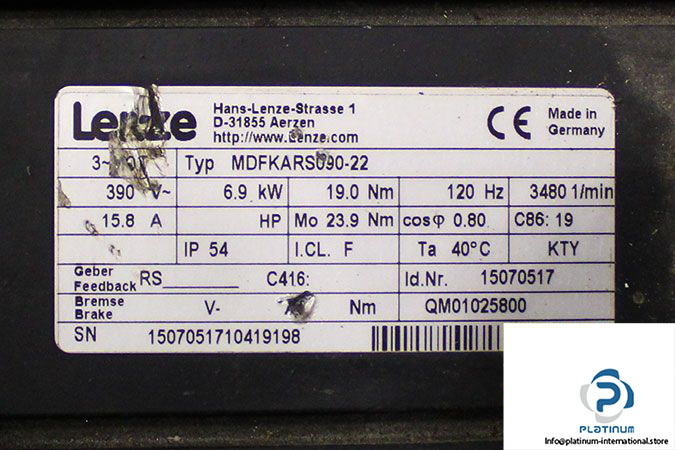

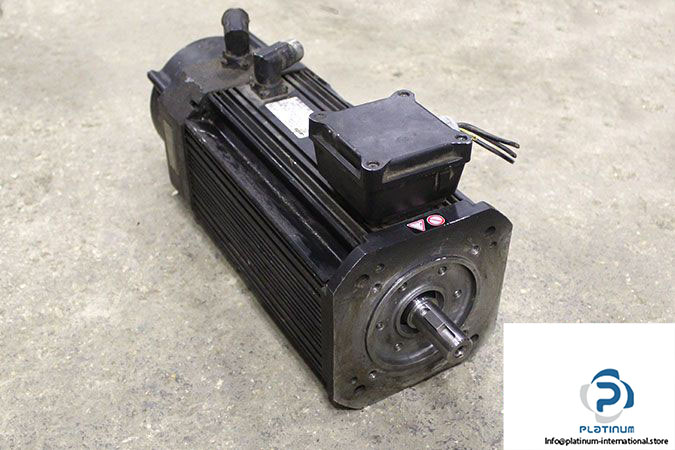

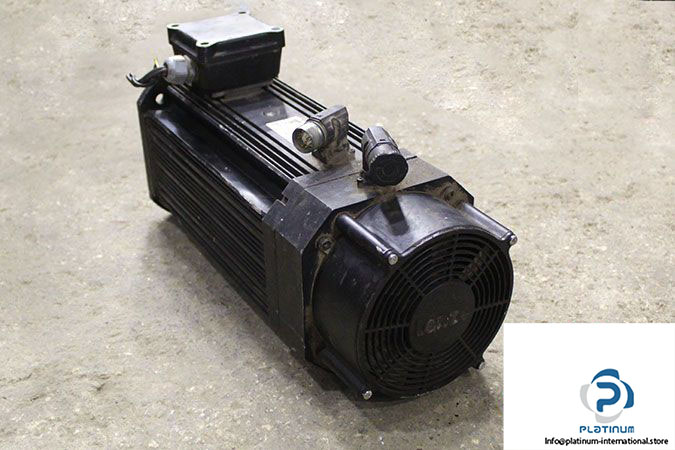

Lenze MDFKARS09-22 Synchronous Servo Motor

Manufacturer: Lenze

Type: Synchronous Servomotor

Model: MDFKARS0922

Rated Voltage: 390 V

Rated Current: 15.8 A

Rated Torque: 19 Nm

Stall Torque: 23.9 Nm

Rated Power: 6.9 kW

Rated Speed: 3480 min^-1

Rated Frequency: 120 Hz

Power Factor: 0.8

Ambient Temperature: 40 °C

Insulation Class: F

Protection Class: IP54

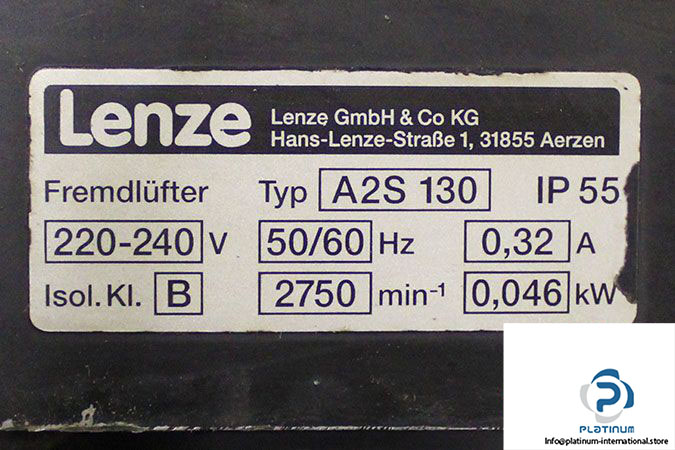

Attachment: LENZE A2S130 MOTOR FAN

Manufacturer: Lenze

Type: Motor Fan

Model: A2S130



Rated Voltage: 220…240 V

Rated Current: 0.32 A

Rated Speed: 2750 min^-1

Rated Power: 0.046 kW

Frequency: 50/60 Hz

Isolation Klasser: B

Protection Class: IP55

Gross Weight: 24.5 kg
