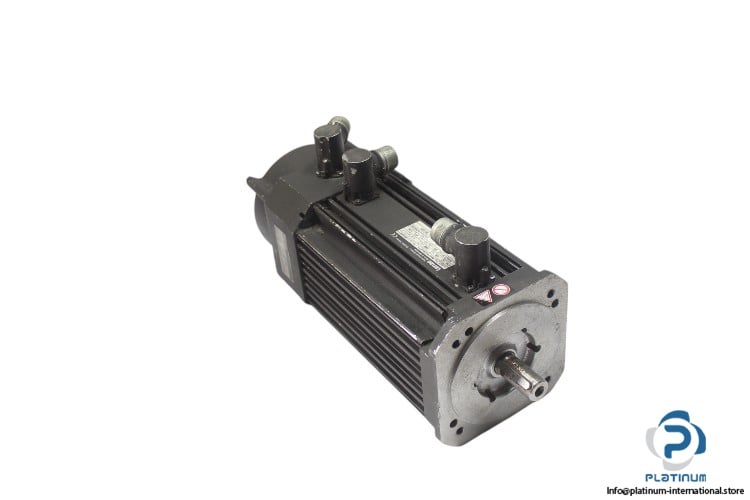

Lenze MDFKSRS071-13 Servo Motor

Lenze MDFKSRS071-13 Servo Motor with Lenze 4656EZ Fan

The Lenze MDFKSRS071-13 Servo Motor is a high-performance motor designed for precision control in industrial automation. With a rated power of 4.1 kW and a rated speed of 3600 RPM, it ensures efficient and reliable operation in demanding environments. Featuring an IP54 protection class and insulation class F, this motor is built for durability and high-performance applications.

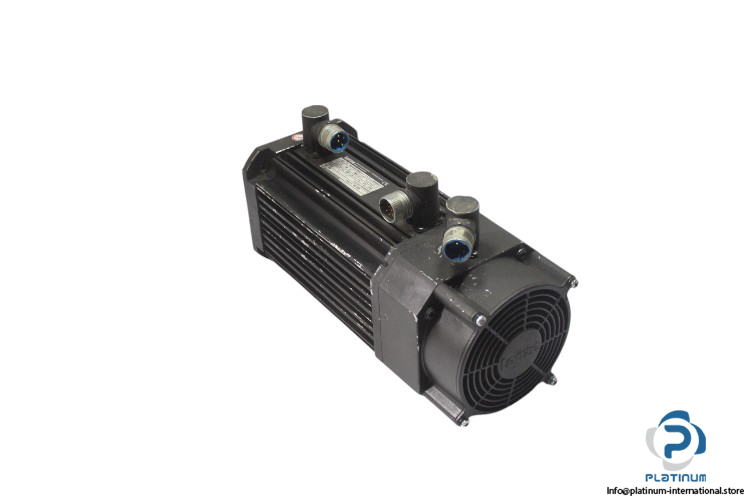

Attached with the Lenze 4656EZ Fan, this setup enhances cooling efficiency, ensuring optimal thermal management and extended service life.

• Manufacturer: Lenze
• Type: Servo Motor
• Model: MDFKSRS071-13
• ID No.: 00400411

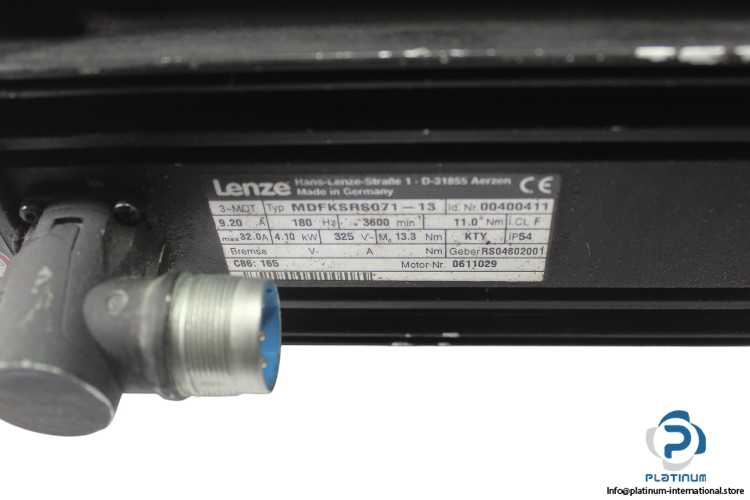

Technical Specifications

• Rated Voltage: 325 VAC
• Rated Speed: 3600 RPM
• Rated Torque: 11 Nm
• Rated Power: 4.1 kW
• Rated Frequency: 180 Hz
• Stall Torque: 13.8 Nm
• Rated Current: 9.2 A
• Max Current: 82 A
• Insulation Class: F
• Protection Class: IP54

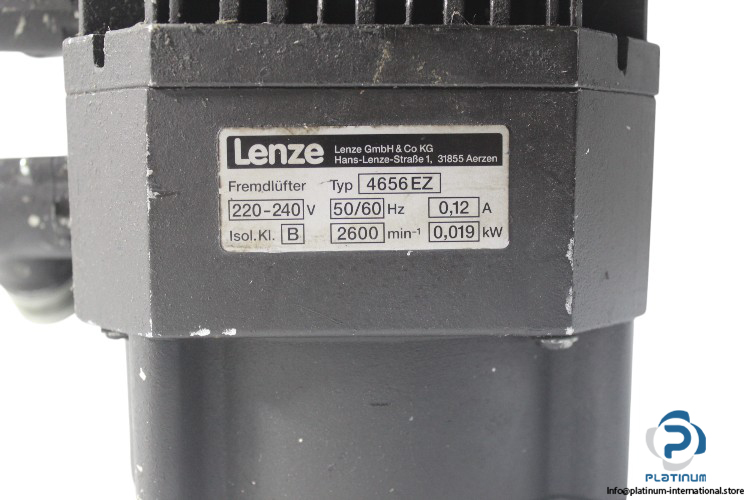

Attached Fan “ Lenze 4656EZ

• Manufacturer: Lenze
• Type: Fan
• Model: 4656 EZ
• Rated Voltage: 220-240 V
• Rated Power: 0.019 kW
• Rated Current: 0.12 A
• Frequency: 50/60 Hz
• Rated Speed: 2600 RPM
• Insulation Class: B
