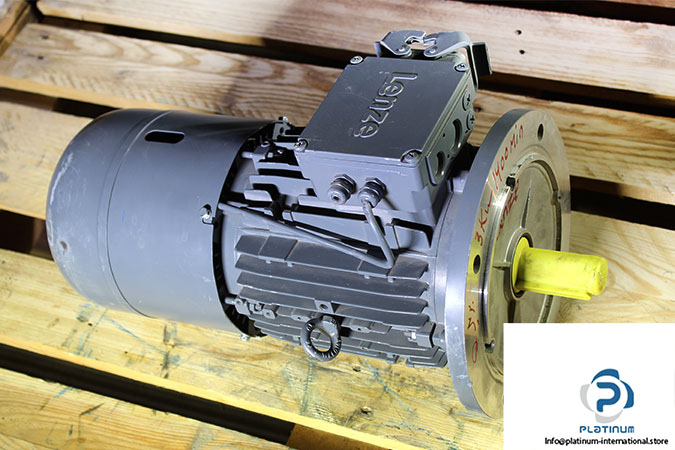

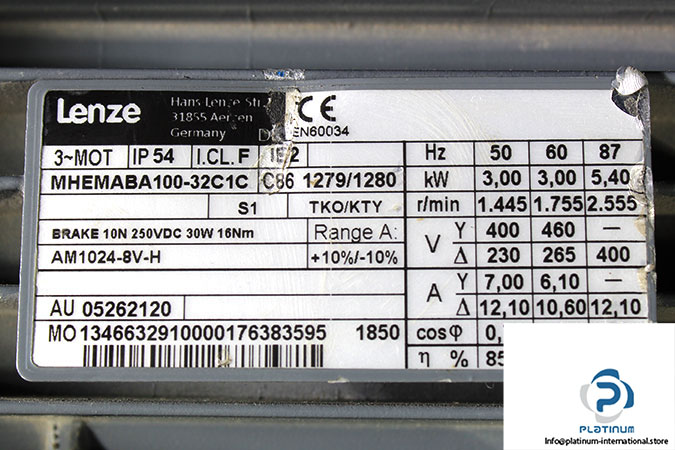

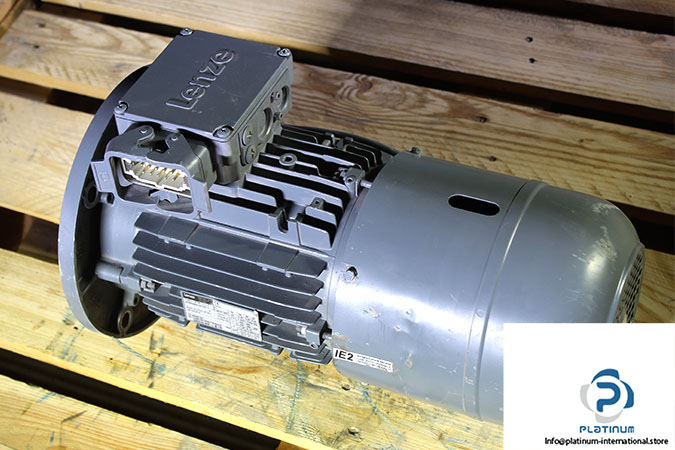

Lenze MHEMABA100-32C1C Brake Motor

Manufacturer: Lenze
Type: Brake Motors
Model: MHEMABA100-32C1C

Motor Speed [r/min]: 1455/1755/2555
Motor Power [kW]: 3.0/3.0/5.4
Rated Voltage [V]: 230/265/400 Delta
Rated Voltage [V]: 400/460 Star
Nominal Current [A]: 12.1/10.6/12.1 Delta
Nominal Current [A]: 7.0/6.1 Star
Motor Frequency [Hz]: 50/60/87
Duty: S1
Cos Phi: 0.73/0.71/0.76
Thermal Class: F
Protection Class [IP]: 54
Brake Model: AM1024-8V-H
Brake Voltage [VDC]: 250
Brake Power [W]: 30
Brake Torque [Nm]: 16
Weight [kg]: 30,6
