Leuze Electronic CR30-600/CT30-600 Safety Light Curtain Receiver/Transmitter
New
Available on request
499,99$
Safety Light Curtain
LEUZE ELECTRONIC CT30-600 / CR30-600 safety light curtain with 30 mm resolution, 600 mm beam distance, 24 V DC supply, and IP65 protection for industrial machine safety applications.24vAutomationCR30-600CT30-600CurtaindcIndustrialIP65LeuzeLightMachineReceiverSafetySensorSystemTransmitter
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

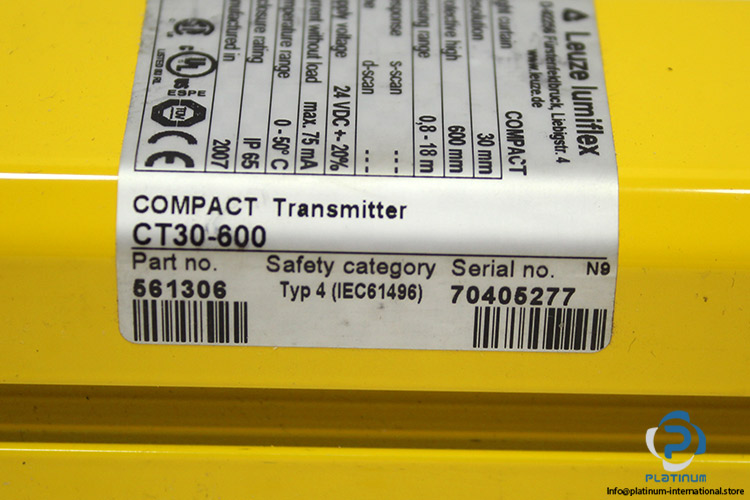

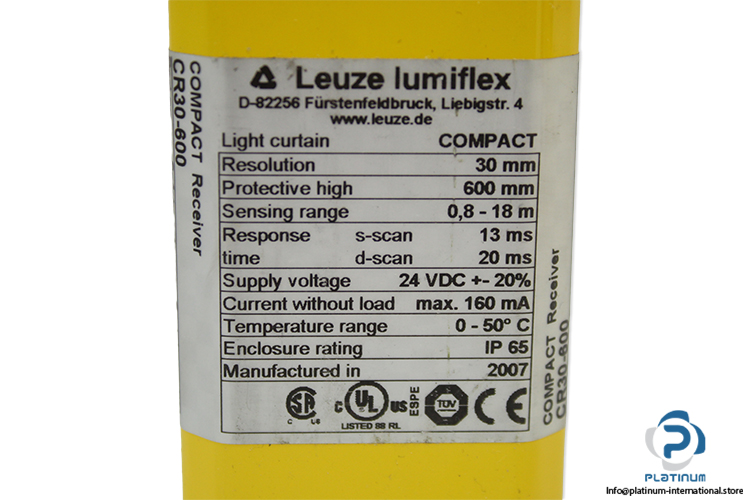

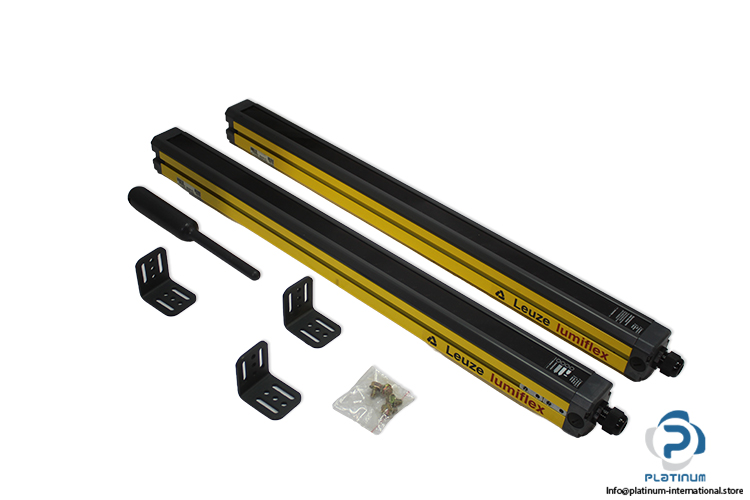

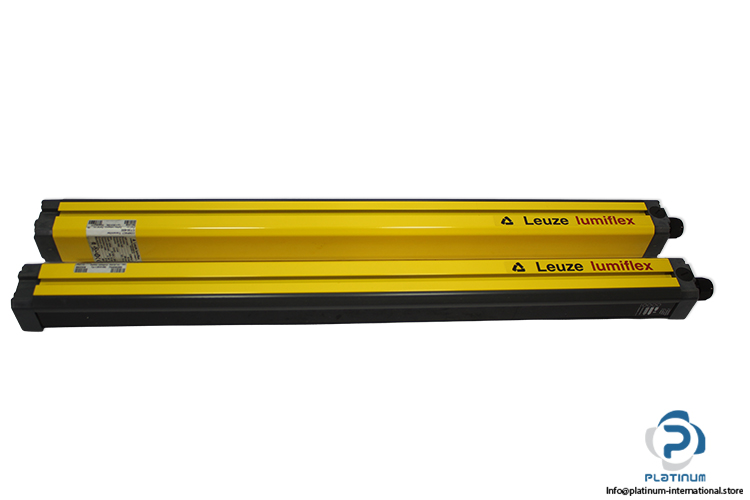

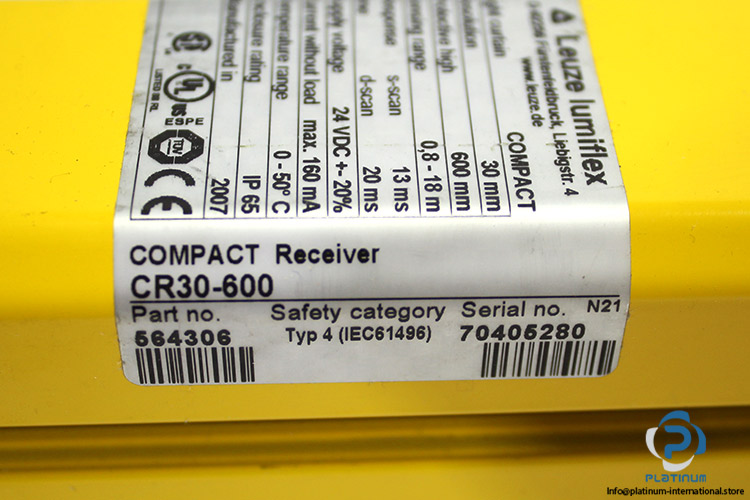

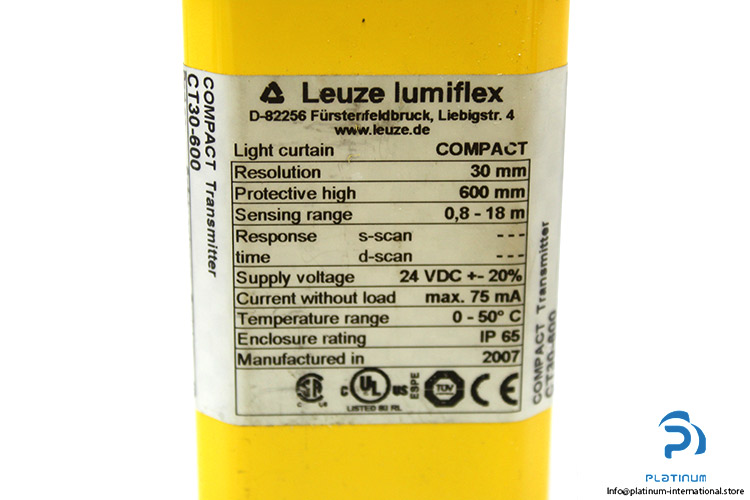

LEUZE ELECTRONIC CT30-600 / CR30-600 Safety Light Curtain
The LEUZE ELECTRONIC CT30-600 transmitter and CR30-600 receiver form a compact and reliable safety light curtain system designed for personnel protection and machine safeguarding. With a 30 mm resolution and robust aluminum housing, this unit ensures dependable performance in industrial automation environments.
Manufacturer: LEUZE ELECTRONIC
Type: Safety Light Curtain Receiver / Transmitter
Receiver Model: CR30-600
Transmitter Model: CT30-600
Part No.: 561306
Serial No.: 70405277 / 70405280
Series: CT30
| Resolution | 30 mm |
| Beam Distance | 600 mm |
| Number Of Beams | 2 |
| Operating Range | 0.8 “ 18 m |
| Supply Voltage | 24 V DC |
| Maximum Current Consumption | 75 mA |
| Material | Aluminum |
| Connection Type | Connector M12 5-Pin |
| Protection Class | IP65 |
| Ambient Temperature | 0 “ 50 °C |
| Dimensions | 52 x 600 x 64.7 mm |
