Leuze Electronic CSL505-R50-1550-M8 / CSL505-T50-1550-M8 Safety Light Curtain Receiver/Transmitter
New
In stock1 unitReady to ship
766,66$
Safety Light Curtain
LEUZE ELECTRONIC CSL505 safety light curtain system with 32 beams, 1,550 mm protection height, 24 V DC supply, and IP65 protection for precise industrial object detection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

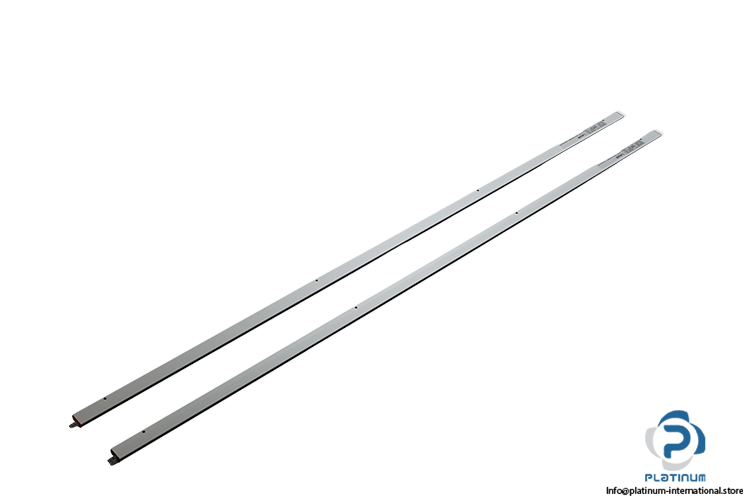

LEUZE ELECTRONIC CSL505 Safety Light Curtain Receiver & Transmitter
The LEUZE ELECTRONIC CSL505 Safety Light Curtain system consists of receiver model CSL505-R50-1550-M8 and transmitter model CSL505-T50-1550-M8. Designed for precise object detection, this system ensures reliable and accurate monitoring in industrial automation and safety applications.
Manufacturer: LEUZE ELECTRONIC
Type: Safety Light Curtain Receiver / Transmitter

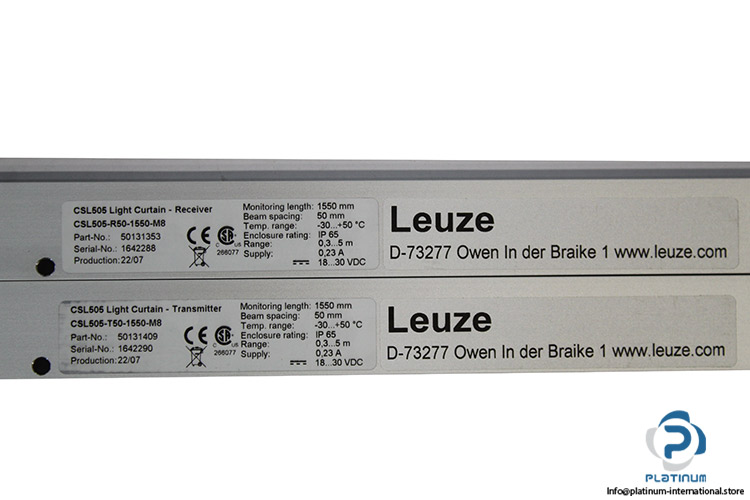

Receiver Model: CSL505-R50-1550-M8
Transmitter Model: CSL505-T50-1550-M8
Order No.: 50131353 / 50131409
Serial No.: 1642288 / 1642290
| Series | 505 |
| Application | Precise Object Detection |
| Beam Spacing | 50 mm |
| Number of Beams | 32 |
| Protection Height | 1,550 mm |
| Operating Range | 0.3 ... 5 m |
| Light Source | LED, Infrared |
| Wavelength | 860 nm |
| Transmitted-Signal Shape | Pulsed |
| Min. Object Diameter | 52.5 mm |
| Output Type | Digital Switching Output |
| Switching Device | Transistor, Push-Pull |
| Switching Principle | Light / Dark Switchable |
| Supply Voltage | 24 V DC |
| Material | Aluminum |

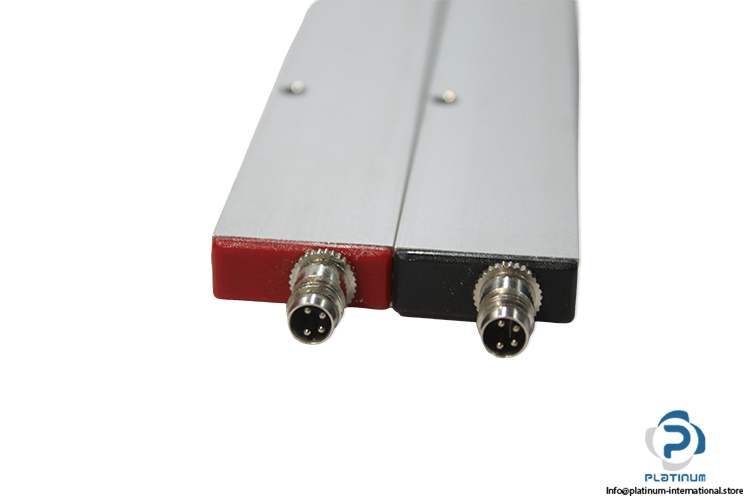

| Connection Type | Male Connector M8 4-Pin |
| Protection Class | IP65 |
| Ambient Temperature | -30 ... 50 °C |
| Dimensions | 10 x 1,630 x 27 mm |
