Leuze Electronic MLD530-RT2M / MLD500-T2L Safety Device Transceiver/Transmitter
New
In stock1 unitReady to ship
499,99$
Multiple Light Beam Safety Device
LEUZE ELECTRONIC MLD500 series safety light beam system with 2 beams, 0.5“8 m operating range, PNP transistor output, 24 V DC supply, and IP67 protection for industrial machine safety applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

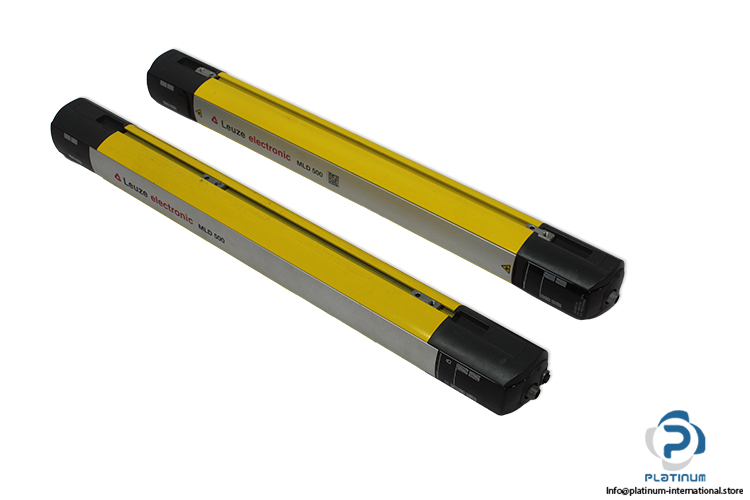

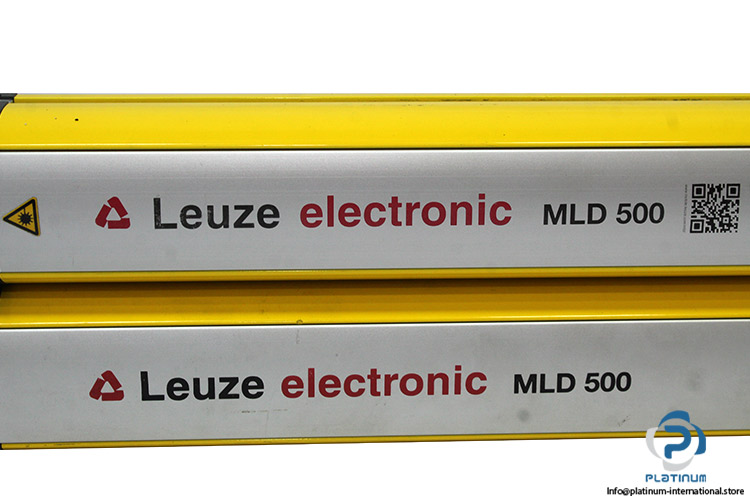

LEUZE ELECTRONIC MLD530RT2M / MLD500T2L Multiple Light Beam Safety Device
The LEUZE ELECTRONIC MLD500 series multiple light beam safety device is designed for reliable area guarding and access protection in industrial automation environments. This system consists of a transceiver and transmitter unit, ensuring precise detection performance and high operational safety.
Manufacturer: LEUZE ELECTRONIC
Type: Multiple Light Beam Safety Device Transceiver / Transmitter

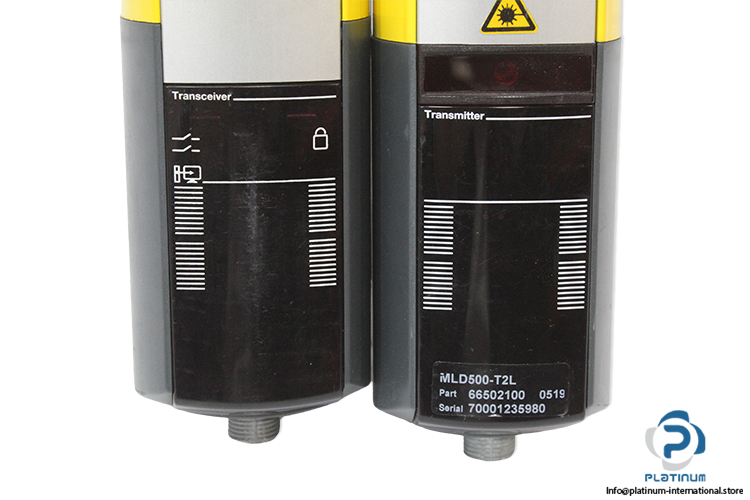

Transceiver Model: MLD530-RT2M
Transmitter Model: MLD500-T2L
Part No.: 66502100
Serial No: 110650235 / 70001235980

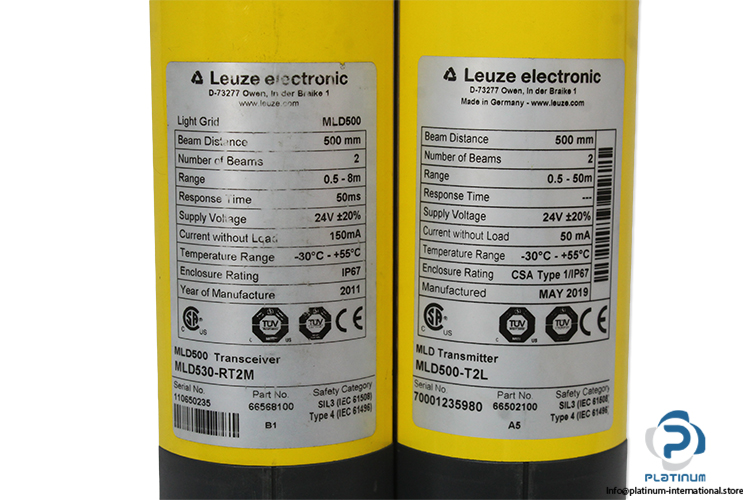

| Series | MLD500 |
| Beam Distance | 500 mm |
| Number of Beams | 2 |
| Operating Range | 0.5 ... 8 m |
| Switching Element | Transistor, PNP |
| Supply Voltage | 24 V DC |
| Current Consumption Max. | 50 / 150 mA |
| Material | Aluminum |

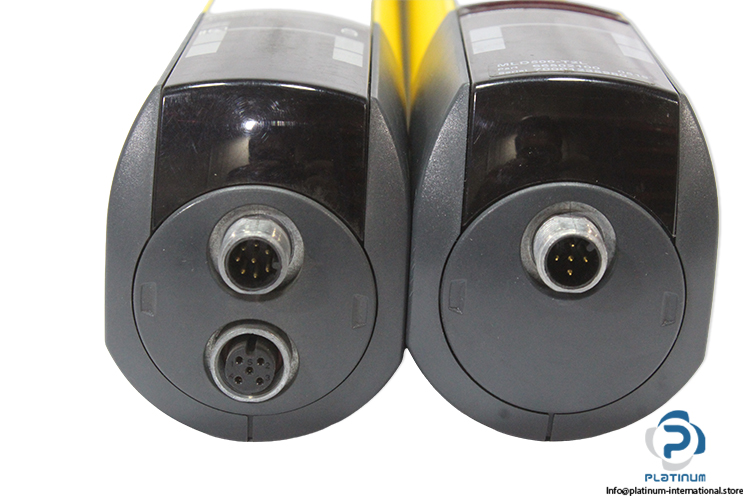

| Connection Type | Connector M12 5-Pin |
| Protection Class | IP67 |
| Ambient Temperature | -30 ... 55 °C |
| Dimensions | 52 x 600 x 64.7 mm |
