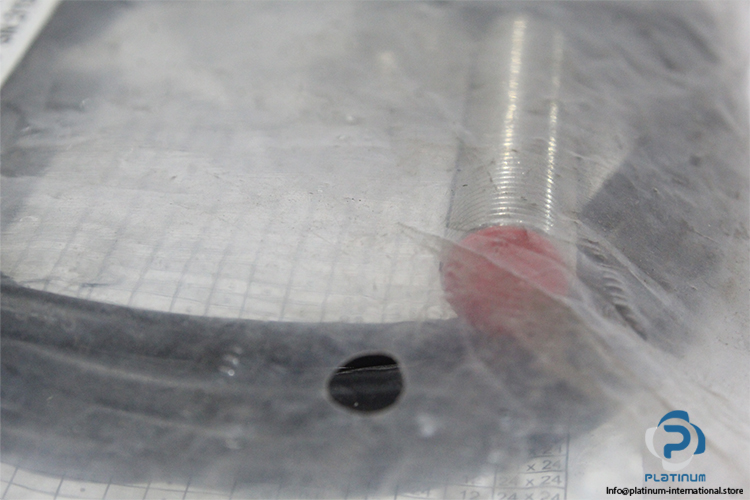

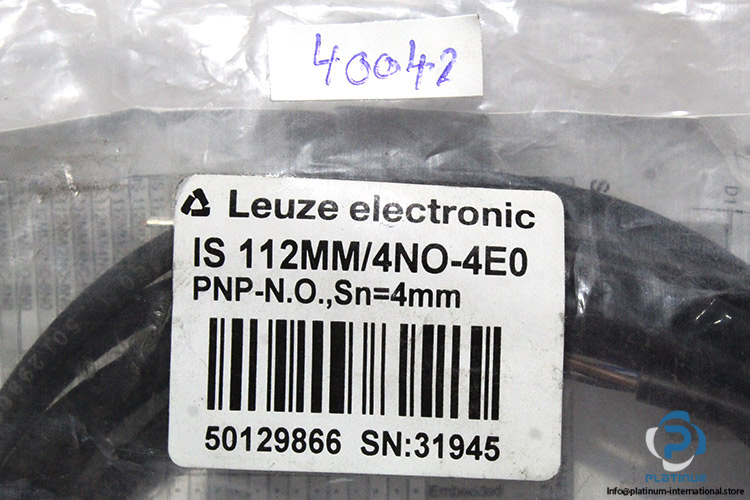

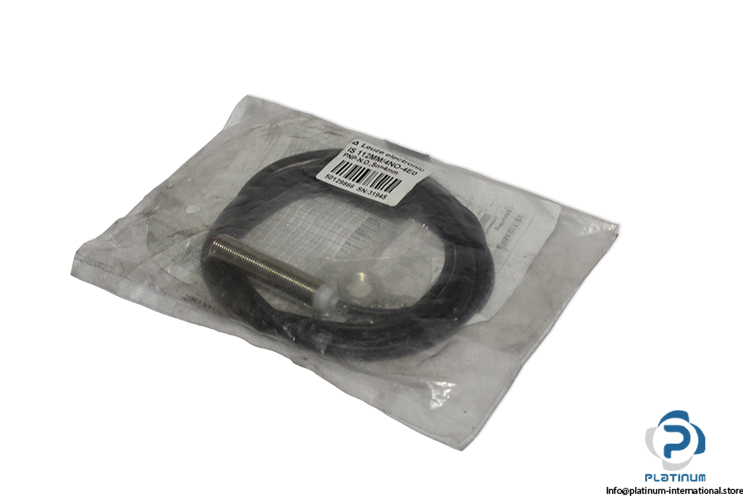

Leuze IS 112MM/4NO-4E0 Inductive Switch Sensor
New
In stock8 unitsReady to ship
39,99$
Inductive Switch Sensor Leuze Electronic IS 112 MM/4NO-4E0 inductive sensor with 4 mm sensing range, PNP output, 10–30 V DC operation and IP67 protection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 50129866 |
| Serial No. | 31945 |
| Series | 112 |
| Sensing Range | 4 mm |
| Operating Voltage | 10 / 30 V DC |
| Current Consumption | Max.10 mA |
| Digital Switching Outputs (DO No.) | 1 |
| Switching current, max. | 200 mA |
| Switching Element | Transistor, PNP |
| Switching frequency | 3,000 Hz |
| Switching Principle | 4 Normally Open (NO) |
| Material | Metal |
| Electrical Connection | Cable, 3-Wires, 2 m, PVC |
| Protection Class | IP67 |
| Temperature Range | -25 / 70 °C |
| Dimensions | 12 x 50 mm |
| Condition | New |
| Stock key | CON003 |
| SKU | 1098425 |
| Weight | 0,08 |
