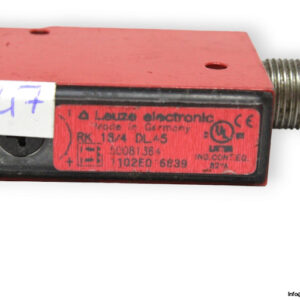

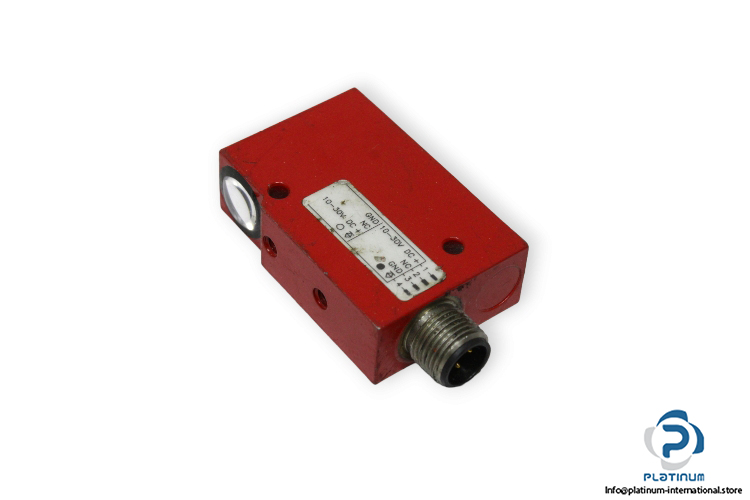

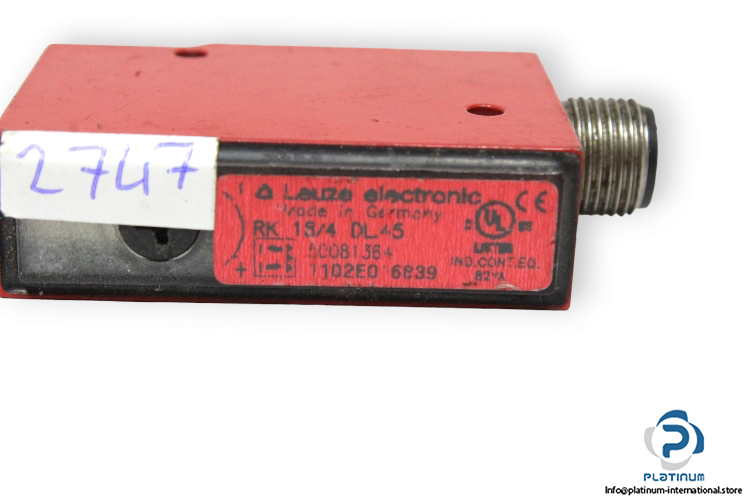

Leuze Electronic RK 18/4 DL.45 Unpolarized Photoelectric Retro-Reflective Sensor

Manufacturer: Leuze Electronic
Type: Unpolarized Photoelectric Retro-Reflective Sensor
Model: RK 18/4 DL.45
Part No.: 50081364

Application: Detection of highly transparent bottles, Detection of highl
transparent films and glass panes
Operating range: 0 … 2.4 m
Operating range limit: 0 … 3 m
Operating Voltage: 10 … 30 V DC
Electrical Design: PNP
Open-circuit current: 0 … 35 mA
Response time: 0.33 ms
Switching Output: Light/dark switching

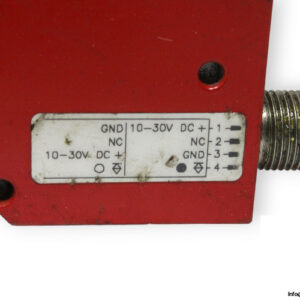

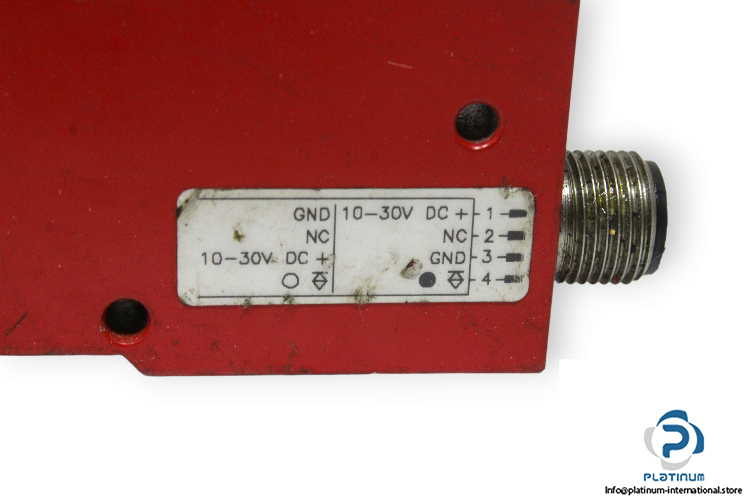

Connector type: M12 ,4-pin
Housing Material: Metal
Operational controls: Multiturn potentiometer
Degree of protection: IP 67,IP 69K
Operating Temperature: -25 … 55 °C
Dimensions: 15 x 50 x 33 mm
