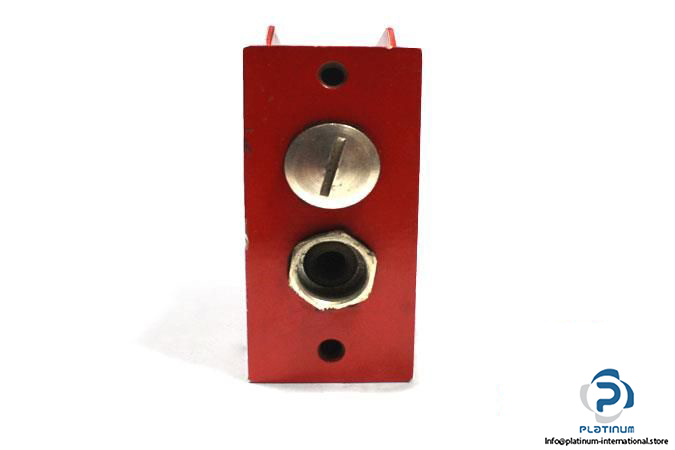

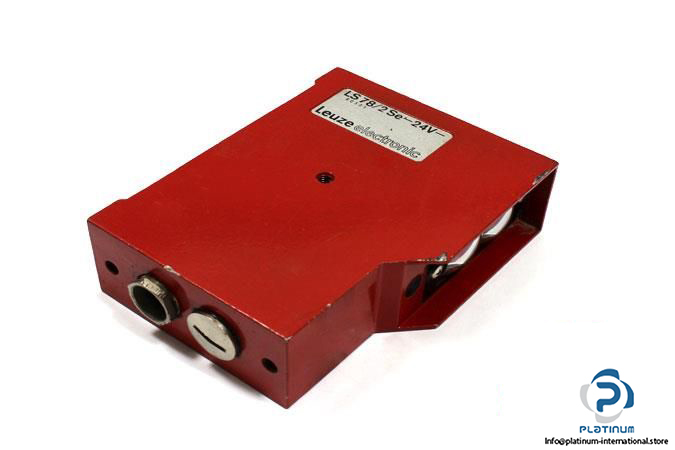

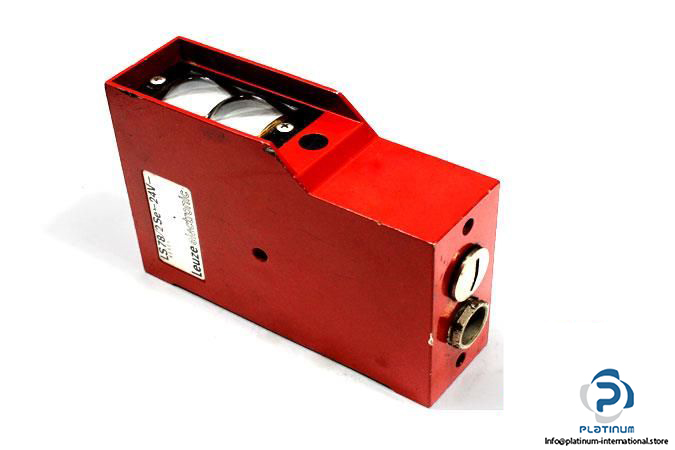

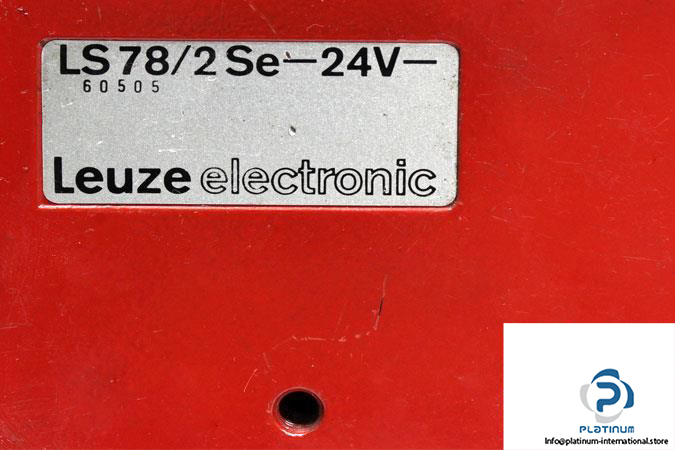

Leuze LS 78/2 SE-24V- Through-Beam Photoelectric Sensor Transmitter

Manufacturer: LEUZE

Type: THROUGH-BEAM PHOTOELECTRIC SENSOR – TRANSMITTER

Order Code: LS 78/2 Se-24V-

Part No.: 50000229

Typical operating range: 180 m

Adjustable range: 120 m

Response time: 5 ms , 25 ms (relay)

Delay before start up max.: 200 ms

Operating Voltage: 10 … 30 V DC

Output Current: 100 mA

Switching frequency: 100 Hz , 20 Hz (relay)

Electrical design: PNP/NPN

Switching output: Light/Dark Switching

Wave length: 880 nm

Connector type: Screw terminals

Protection class: I

Enclosure rating: IP65

Ambient Operating temperature: -20 … 60°C

Dimensions: 98 x 38 x 127 mm

Weight: 600 g

Housing: Rectangular

Housing material: Aluminum diecast

Optics Material: Glass

Condition: Used
