Leuze PRK 46B/66-S12 Photoelectric Sensor
Photoelectric Sensor

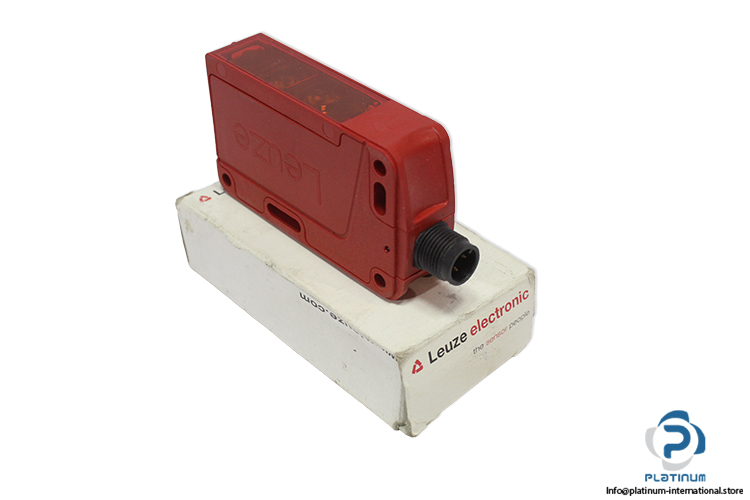

LEUZE ELECTRONIC PRK 46B/66-S12 polarized retro-reflective photoelectric sensor with 15 m guaranteed range, dual digital push-pull outputs, M12 connector, and IP67/IP69K protection for industrial applications.LEUZE ELECTRONIC PRK 46B/66-S12 Polarized Retro-Reflective Photoelectric Sensor
The LEUZE ELECTRONIC PRK 46B/66-S12 is a high-performance polarized retro-reflective photoelectric sensor designed for reliable object detection over long sensing distances. With advanced reflection principle technology, dual digital outputs, and robust industrial protection ratings, it ensures precise and stable operation in demanding environments.
Manufacturer: LEUZE ELECTRONIC
Type: Polarized Retro-Reflective Photoelectric Sensor

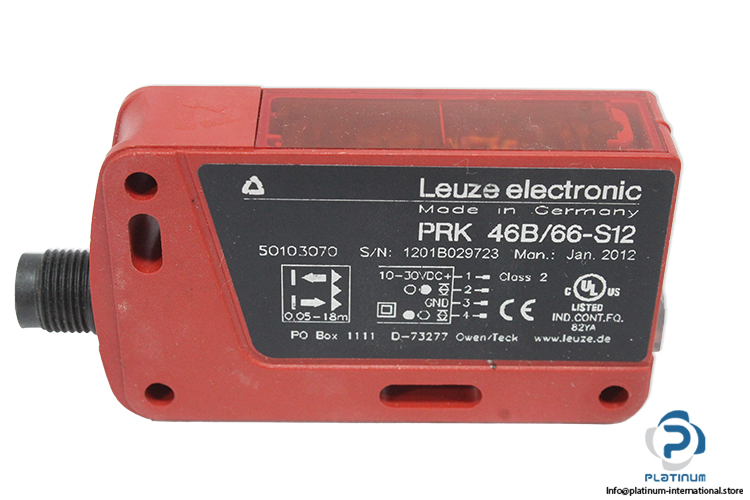

Model: PRK 46B/66-S12
Part No.: 50103070

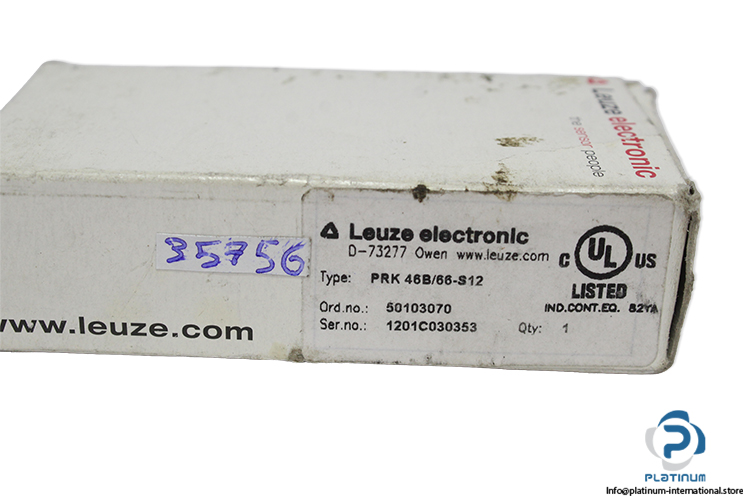

Serial No.: 1201C030353
Series: 46B
Operating Principle: Reflection Principle
Protective Circuits:
Polarity Reversal Protection
Short Circuit Protected
Connections:
| Operating Range | 0.05 ... 15 m (Guaranteed Operating Range) |
| Operating Range Limit | 0.05 ... 18 m (Typical Operating Range) |
| Light Source | LED, Red |
| Wavelength | 620 nm |
| Transmitted-Signal Shape | Pulsed |
| LED Group | 1 |
| Supply Voltage (UB) | 10 ... 30 V DC |
| Current Consumption, Max. | 20 mA |
| Residual Ripple | 0 ... 15 %, From UB |
| Open-Circuit Current | 0 ... 30 mA |
| Digital Switching Outputs | 2 Piece(s) |
| Output Type | Digital Switching Output |
| Switching Element | Transistor, Push-Pull |
| Switching Principle | Light Switching (PNP) / Dark Switching (NPN) |
| Switching Element | Transistor, Push-Pull |
| Switching Principle | Dark Switching (PNP) / Light Switching (NPN) |
| Switching Frequency | 500 Hz |
| Response Time | 1 ms |
| Readiness Delay | 300 ms |
| Number Of Connections | 1 Piece(s) |
| Function | Signal IN / Signal OUT / Voltage Supply |
| Type Of Connection | Connector |

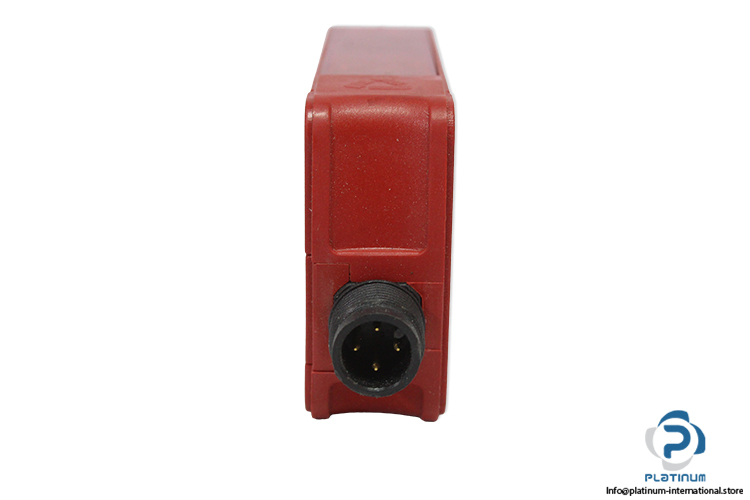

| Thread Size | M12 |
| Connector Type | Male |
| Material | Plastic |
| No. Of Pins | 4-Pin |
| Encoding | A-Coded |
| Dimensions (W x H x L) | 185 mm x 76.9 mm x 43.4 mm |
| Housing Material | Plastic |
| Plastic Housing | PC-ABS |
| Lens Cover Material | Plastic |
| Type Of Fastening | Through-Hole Mounting |
| Material Compatibility | ECOLAB |
| Display Type | LED |
| Number Of LEDs | 2 Piece(s) |
| Ambient Temperature (Operation) | -40 ... 60 °C |
| Ambient Temperature (Storage) | -40 ... 70 °C |
| Degree Of Protection | IP 67 / IP 69K |
| Protection Class | II |
| Approvals | c UL US |
| Standards Applied | IEC 60947-5-2 |
