Leuze PRK 95/A L.4 Polarized Retro-Reflective Photoelectric Sensor
Used
In stock1 unitReady to ship
Polarized Retro-Reflective Photoelectric Sensor
LEUZE Polarized Retro-Reflective Photoelectric Sensor PRK 95/A L.4 is designed for detecting highly transparent bottles, films, and glass panes. It offers reliable performance with a supply voltage of 26.5 / 31.6 V and an operating temperature range of -25 / 60 °C. It is equipped with an M12 connector and features a 100 ms readiness delay.4-Pin6795/AAs-InterfaceBottleConnectorDetectionFilmIndustrialIOIPL.4LeuzeM12PhotoelectricpolarizedPRKProtectionRetro-ReflectiveSensorTransparent
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

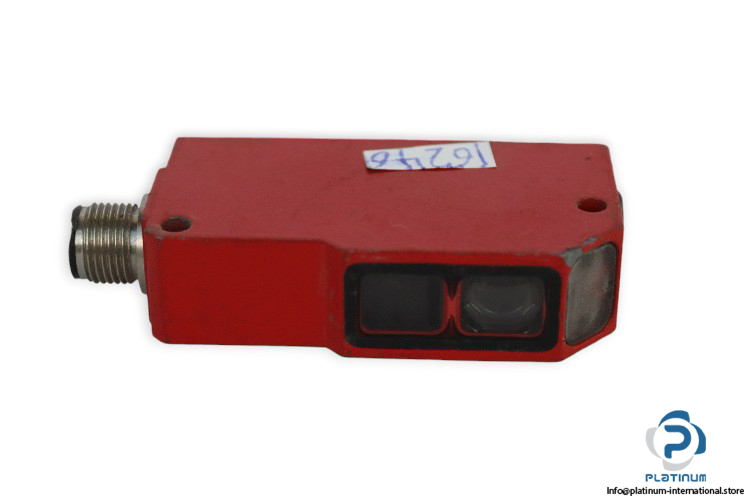

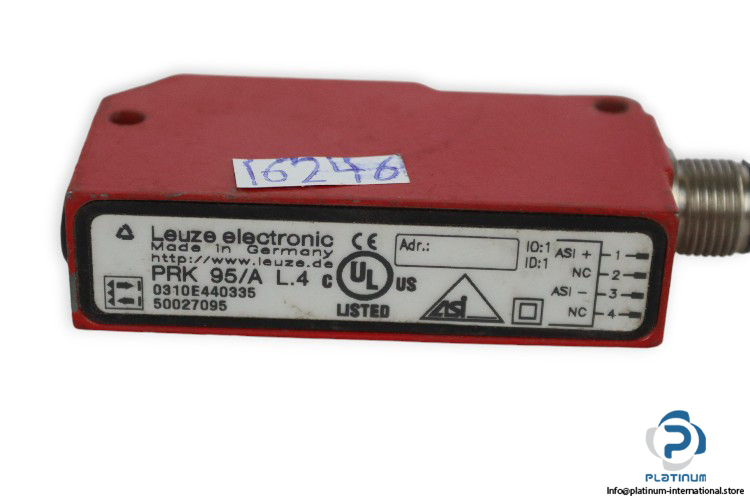

LEUZE Polarized Retro-Reflective Photoelectric Sensor PRK 95/A L.4
The LEUZE PRK 95/A L.4 Polarized Retro-Reflective Photoelectric Sensor is designed for precise detection of highly transparent objects such as bottles, films, and glass panes. With reliable performance and a robust design, this sensor is ideal for industrial automation systems.
Manufacturer: LEUZE
Type: Polarized Retro-Reflective Photoelectric Sensor
Model: PRK 95/A L.4
Technical Specifications
- Operating Principle: Reflection principle
- Application:
- Detection of highly transparent bottles
- Detection of highly transparent films and glass panes
- Supply Voltage UB: 26.5 / 31.6 V
- Open-Circuit Current: 0 / 35 mA
- Degree of Protection: IP 67
- Protection Class: II
- Interface Type: AS-Interface IO
- Readiness Delay: 100 ms
- Type of Connection: Connector
- Connection Function:
- Signal IN
- Signal OUT
- Voltage Supply

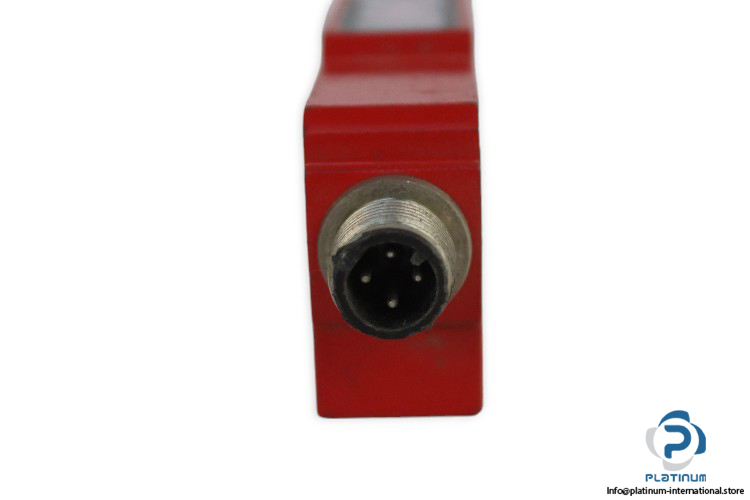

- Size: M12
- Number of Pins: 4-pin
- Housing Color: Red
- Ambient Temperature: -25 / 60 °C
- Housing Material: Metal
- Dimension (W x H x L): 17 mm x 66 mm x 35 mm
