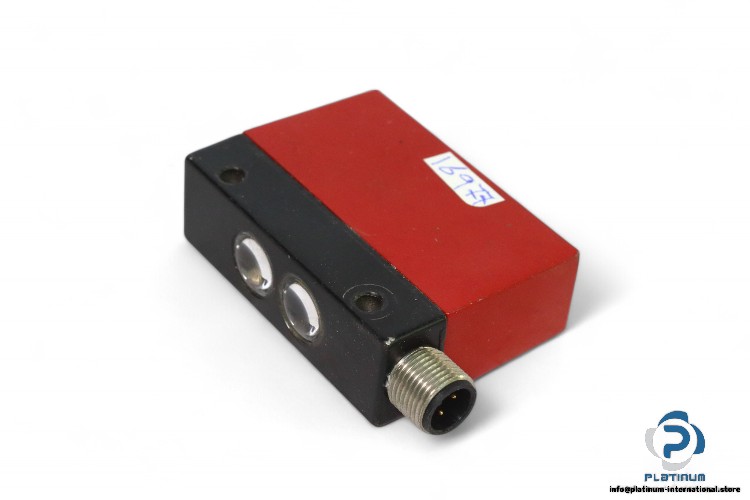

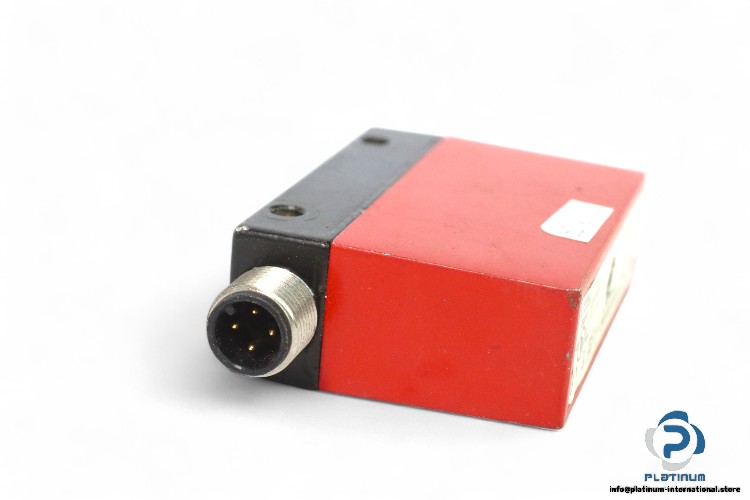

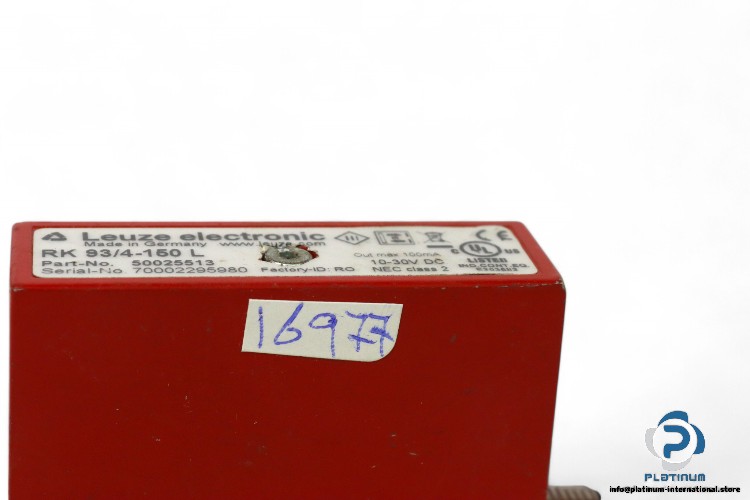

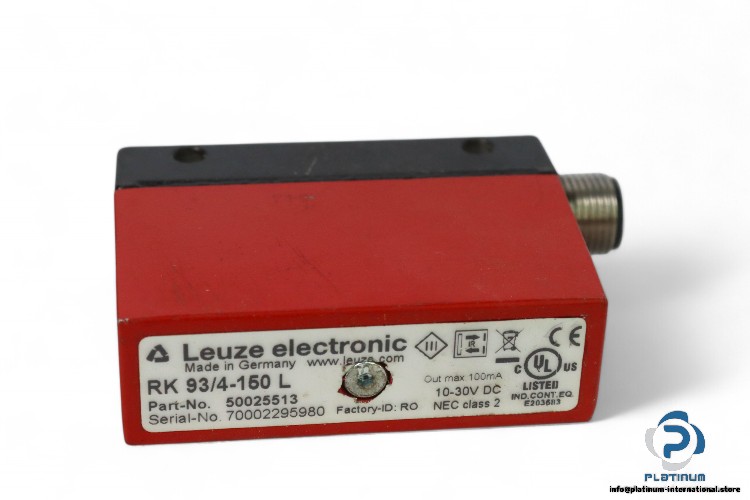

Leuze RK 93/4-150 L Energetic Diffuse Sensor

Manufacturer: LEUZE
Type: Energetic diffuse sensor
Model: RK93/4-150L
Part no.: 50025513

Operating Voltage: 10 … 30 V DC
Number of digital switching outputs: 1
Switching element: Transistor, PNP
Switching principle: Light switching
Switching frequency: 250 Hz
Type of connection: Connector, M12, 4 -pin
Housing Material: Metal
Metal housing : Diecast zinc
Operating range, white 90%: 0.005 … 0.15 m
Operating range, gray 18%: 0.02 … 0.1 m
Dimension (W x H x L): 20 mm x 60 mm x 44 mm
IP Class: IP 65
Operating Temperature: -20 … 60°C
