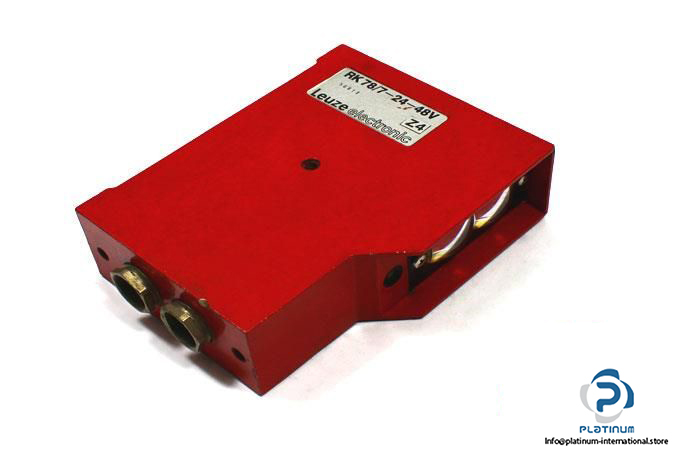

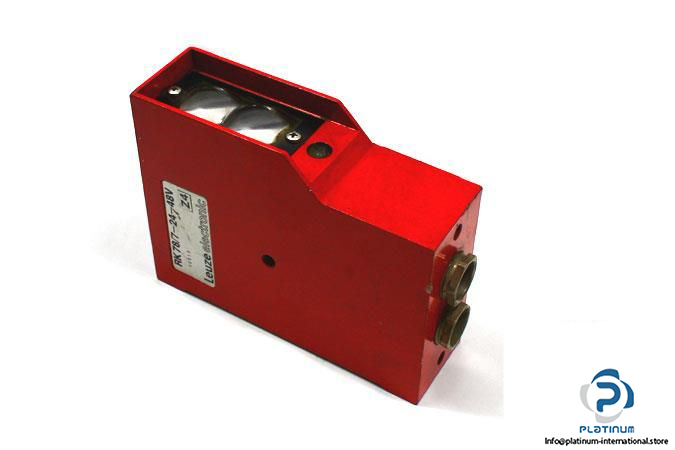

Leuze RK 78/7-24-48V Diffuse Reflection Light Scanner Energetic
Manufacturer: LEUZE
Type: DIFFUSE REFLECTION LIGHT SCANNER ENERGETIC

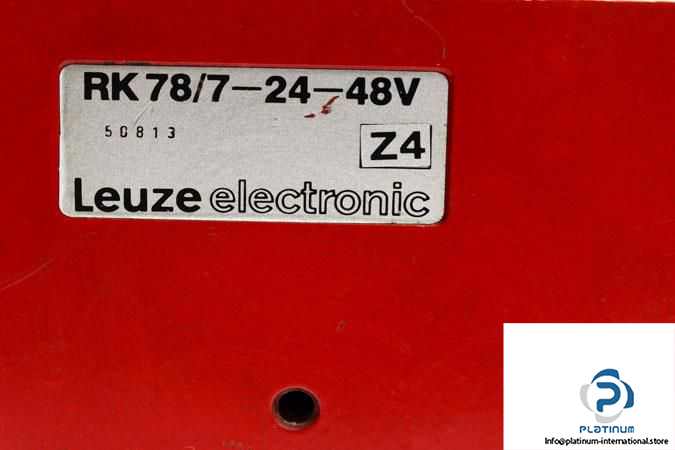

Order Code: RK 78/7-24-48V
Scanning range: 0 … 800 mm
Adjustment range: 5 … 100%
Response time: 25 ms
Operating Voltage: 24 … 48 V AC, 24 V DC
Switching frequency: 20 Hz
Switching output: Relay

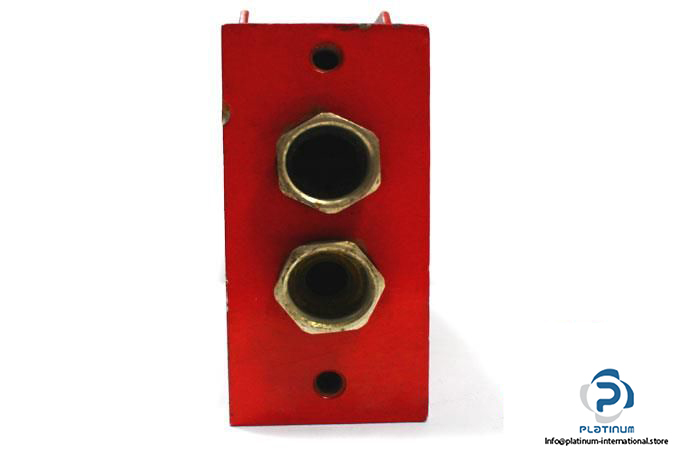

Connector type: Screw terminals
Protection class: I
Enclosure rating: IP65
Ambient Operating temperature: -20 … 60°C
Dimensions: 98 x 38 x 127 mm
Housing: Rectangular
Housing material: aluminum diecast
Optics: Glass lens
Weight: 0.7 Kg
