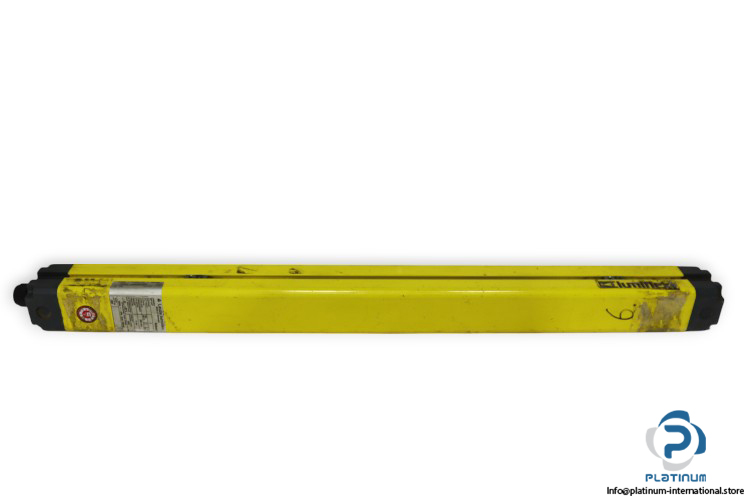

Leuze RRT 22.1 Multi-Beam Safety Light Barrier Transceiver
LEUZE RRT 22.1 multi-beam safety light barrier with 2 beams, 50 m max range, and fast 5 ms response time. Ideal for harsh industrial safety and automation environments.
Manufacturer: LEUZE
Type: Multi-Beam Safety Light Barrier Transceiver

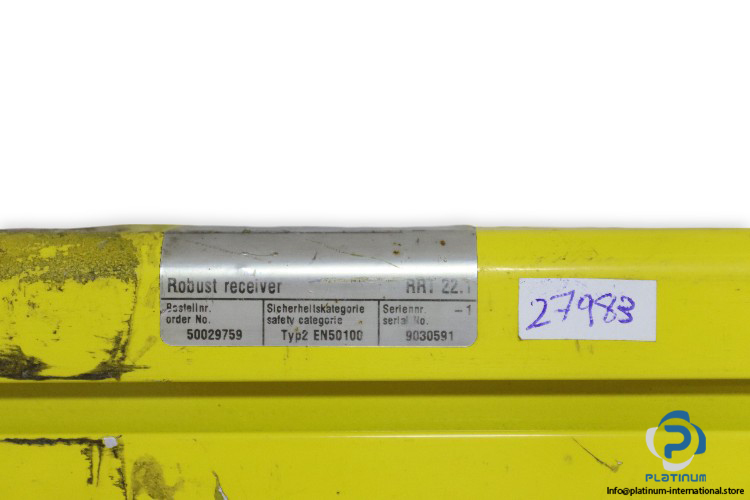

Model: RRT 22.1
Order No.: 50029759
Serial No.: 9030591
The LEUZE RRT 22.1 multi-beam safety light barrier transceiver is designed for reliable personnel and object protection in industrial automation and safety-critical zones. With a robust sensing range up to 50 meters, it provides dependable detection using two beams and a rapid 5 ms response time. Its compact design, IP67 enclosure rating, and wide temperature tolerance make it ideal for harsh environments. Engineered for high performance in conveyor systems, material handling, and access control applications.

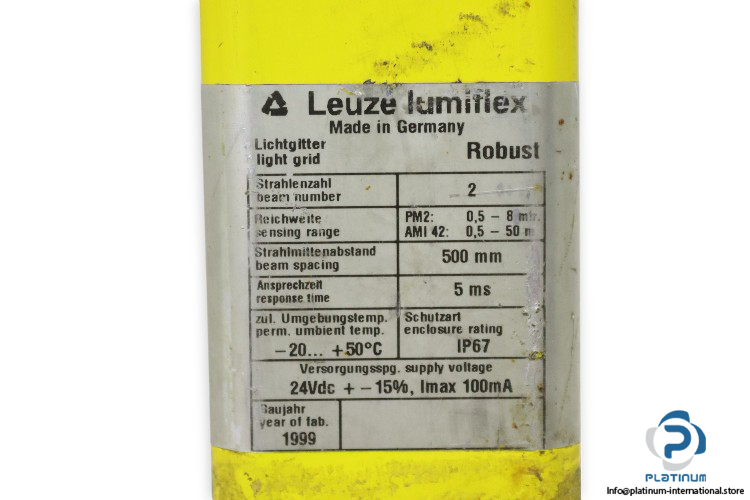

Technical Specifications:
- Supply Voltage: 24V DC
- Current Consumption: Max 100 mA
- Beam Number: 2
- Sensing Range: PM2: 0.5 “ 8 m / AMI42: 0.5 “ 50 m
- Beam Spacing: 500 mm
- Response Time: 5 ms
- Enclosure Rating: IP67
- Ambient Temperature: -20°C to +50°C
