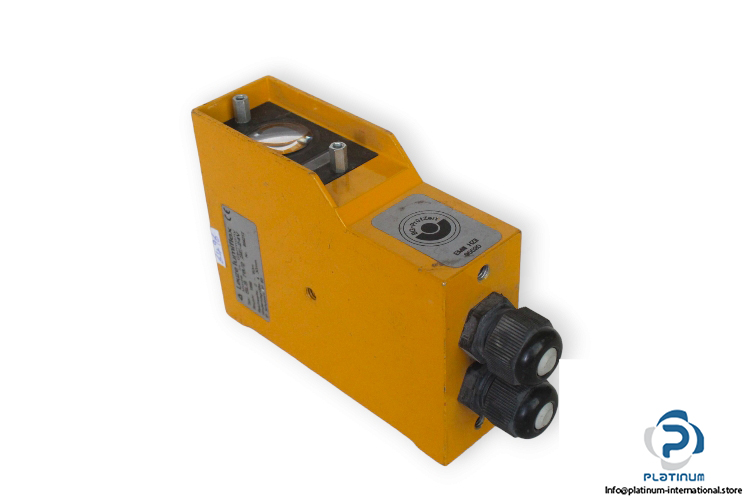

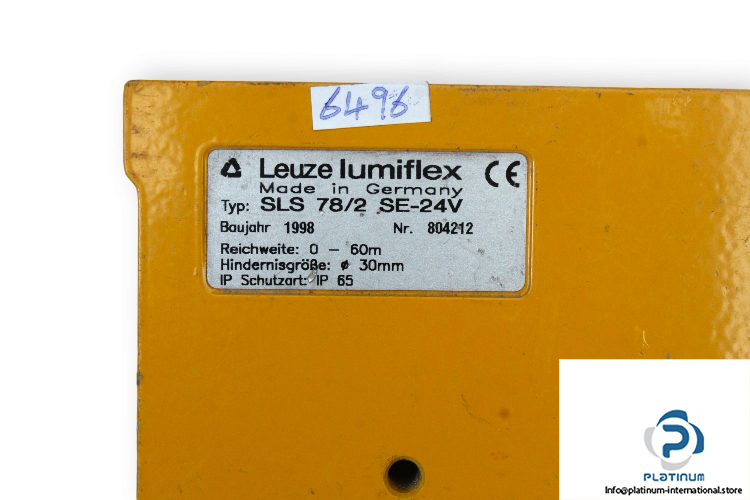

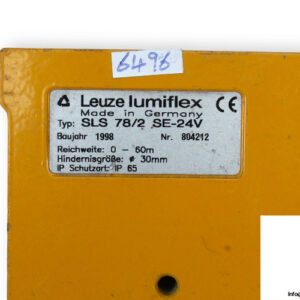

Leuze SLS 78/2 SE-24V Single Beam Safety Light Barrier Transmitter

Manufacturer: LEUZE
Type: Single Beam Safety Light Barrier Transmitter
Model: SLS 78/2 SE-24V
Part No.: 804212
Configured with Receiver: SLS 78/RE-24 V

Operation principle: A protective field of infrared beams is
generated between the transmitter and receiver of the safety
light beam device. If this protective field is penetrated the
guarded machine goes to a safe state before a person can be
put in a dangerous situation.
Sensing Range (without deflecting mirror): 0 … 60 m
Sensing range (with deflecting mirror): 0 … 51 m
Sensing range (with 2 deflecting mirror): 0 … 43 m
Operating Voltage: 24 V DC
Response time max.: ≤ 20 ms
Object size: Suitable for detecting objects with a minimum diameter of 30 mm
Operating Voltage: 24 V DC, ± 15 %
Connector type: Plug
Optics: Glass, 30 mm Ø
Dimensions: 98 x 38 x 128 mm
Wave length: 880 nm
Housing Material: Compact aluminum housing
Operating Temperature: -25 … 60°C
Enclosure Rating: IP65
