Bearings Housing Units Plummer Block Housing Units

LFD Ucfl 204 Oval Flange Ball Bearing Unit

Name: LFD UCFL 204 OVAL FLANGE BALL BEARING UNIT
SKU: 1005353
Availability: LimitedAvailability

lfd-UCFL-204-oval-flange-ball-bearing-unit-(new)-1

lfd-UCFL-204-oval-flange-ball-bearing-unit-(new)-2

New

In stock2 unitsReady to ship

Housing No.: FL204

Manufacturer:

LFD

Type:

Oval flange ball bearing unit

Model:

UCFL 204

Bearing No.:

UC 204

Manufacturer

LFD

SKU

1005353

Category

Plummer Block Housing Units

Condition

New

20 bearing bearings flanged Housing LFD mm Oval Two-Bolt Unit Units Žhousing

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: LFD
Type: Oval flange ball bearing unit
Model: UCFL 204
Bearing No.: UC 204
Housing No.: FL204

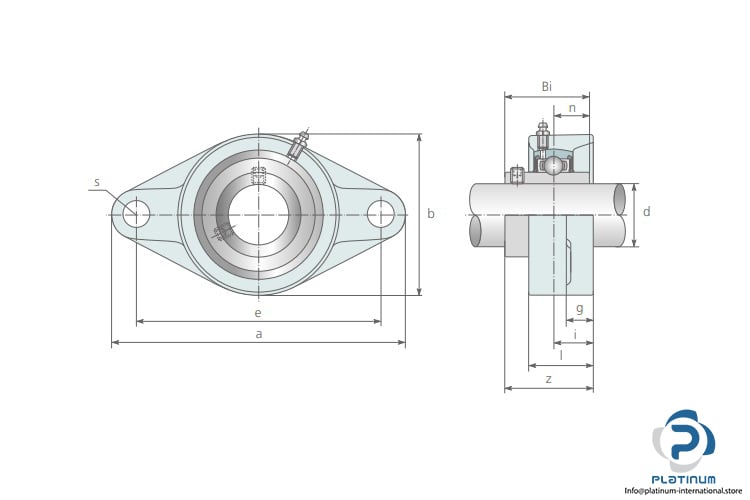

Dimensions
Bore Diameter d: 20 mm
Overall Length b: 60 mm
Overall Height a: 113 mm
Width of inner ring Bi: 31 mm
Distance Between Attachment Bolts e: 90 mm
Overall unit width z: 33.3 mm
Basic load rating:
Dynamic Cr: 12800 N
Static C0r: 6700 N
