Bearings Housing Units Plummer Block Housing Units

LFD Ucfl 208 Oval Flanged Housing Unit

Name: LFD UCFL 208 OVAL FLANGED HOUSING UNIT
SKU: 1005284
Availability: LimitedAvailability

lfd-UCFL-208-oval-flange-ball-bearing-unit-(new)-(carton)-1

lfd-UCFL-208-oval-flange-ball-bearing-unit-(new)-(carton)-2

New

In stock17 unitsReady to ship

Manufacturer:

LFD

Type:

Oval flange ball bearing unit

Model:

UCFL208

Manufacturer

LFD

SKU

1005284

Category

Plummer Block Housing Units

Condition

New

40 bearing bearings flanged Housing LFD mm Oval Two-Bolt Unit Units Žhousing

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: LFD
Type: Oval flange ball bearing unit
Model: UCFL208

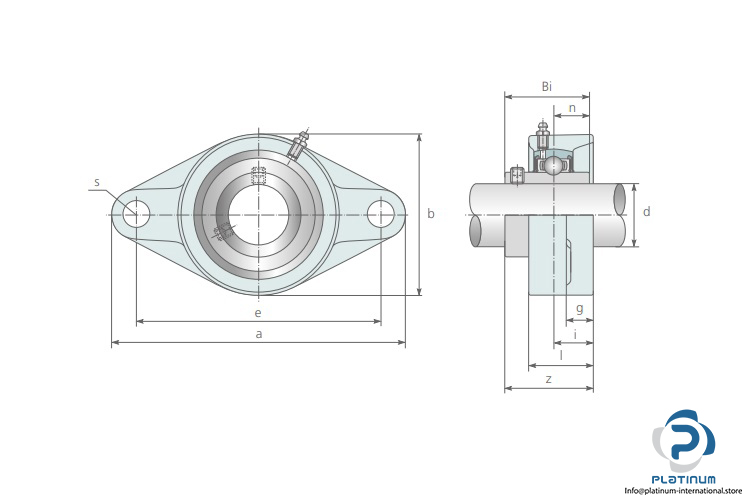

Dimensions
Bore Diameter d: 40 mm
Overall Length b: 100 mm
Overall Height a: 174.5 mm
Width of inner ring Bi: 49.2 mm
Distance Between Attachment Bolts e: 144 mm
Overall unit width z: 51.2 mm
Diameter of attachment bolt hole s: 19 mm
Basic load rating:
Dynamic Cr: 32000 N
Static C0r: 17800 N
