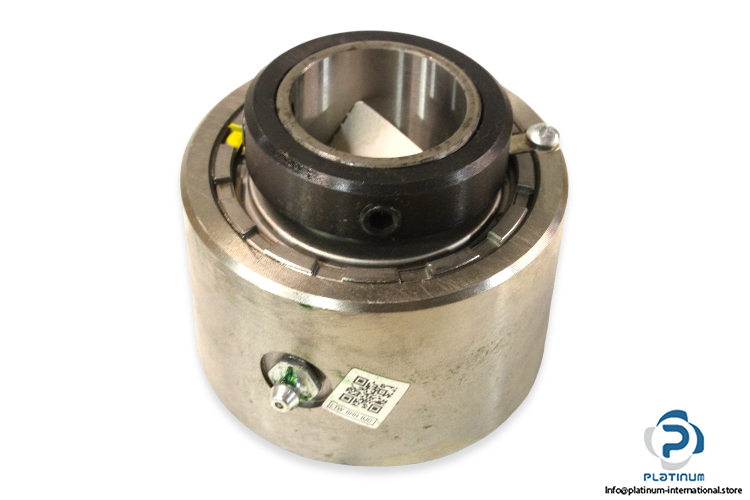

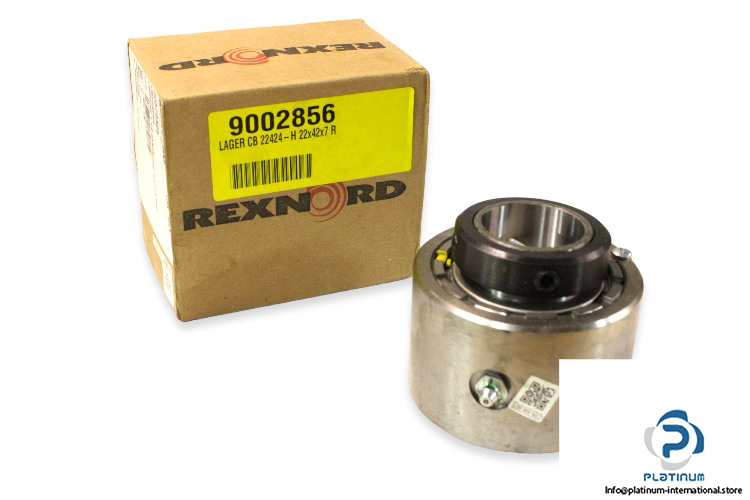

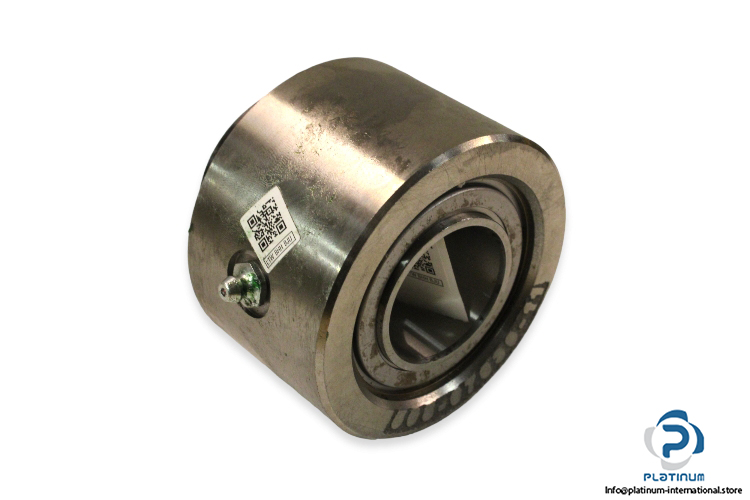

Link-Belt Rexnord CB22424H Spherical Roller Bearing Cartridge

Manufacturer: LINKBELT REXNORD

Type: Single Locking Collar Spherical Roller Bearing

Model: CB 22424 H

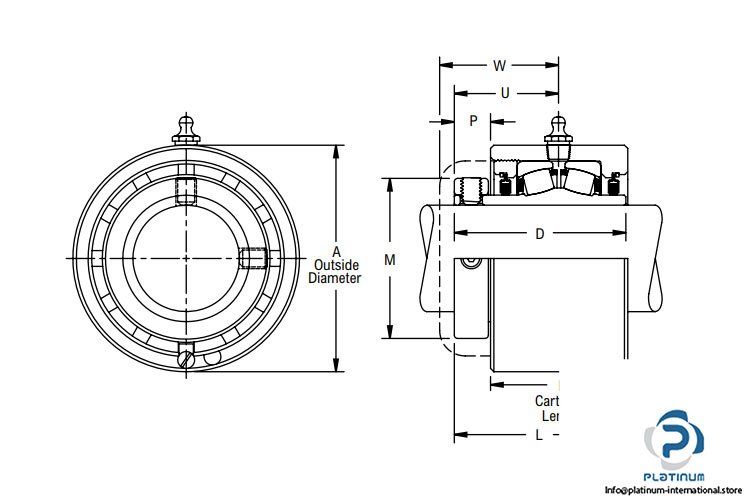

Dimensions:

Shaft diameter: 1 ½  inch

Outer diameter A: 3.437 inch

Cartridge length B: 2 3/16 inch

L: 2 29/32 inch

M: 2 5 /16 inch

Static load rating C₀: 20900 lb

Dynamic load ratings C: 17800 lb

Maximum speed: 3600 RPM

Maximum Temperature (°F (°C)): 225 (107) F (C)

Seal Type: H; Labyrinth Seal
