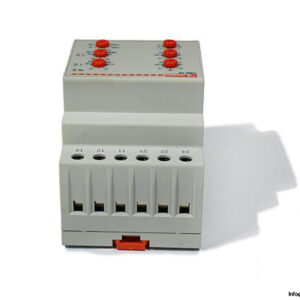

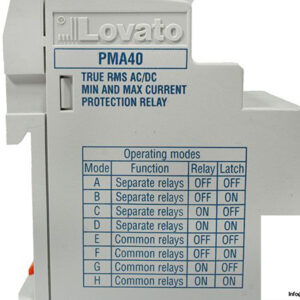

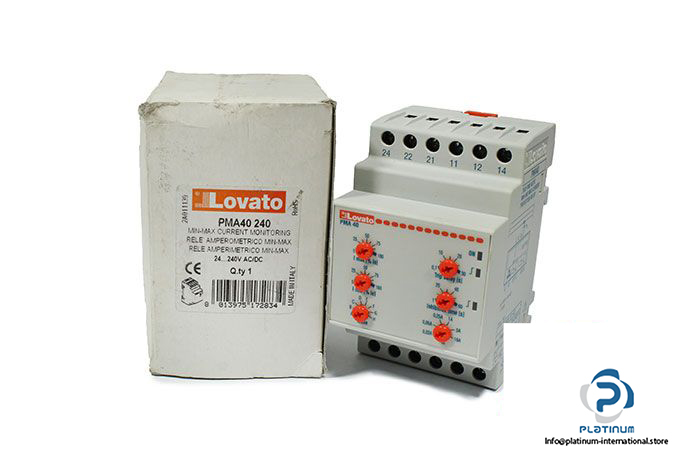

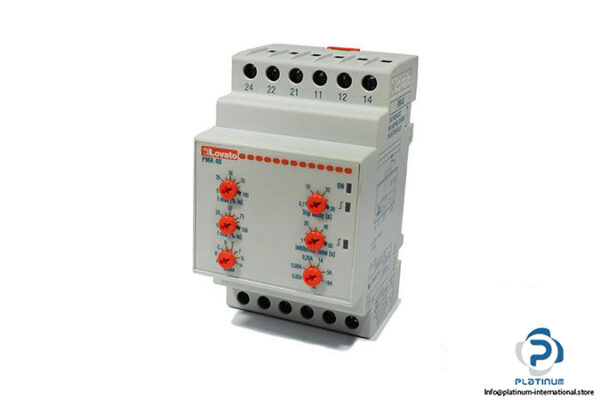

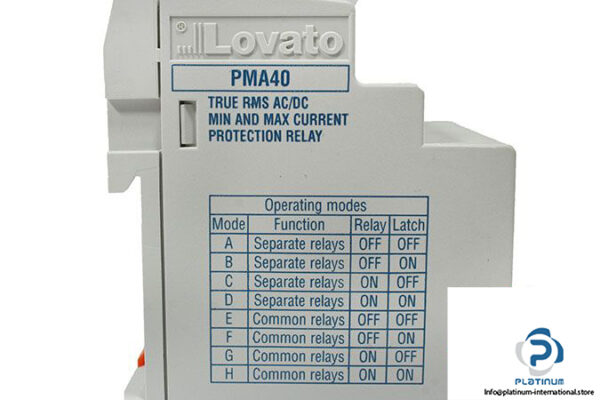

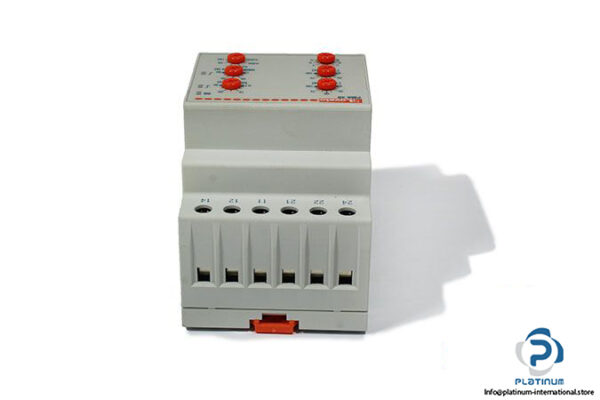

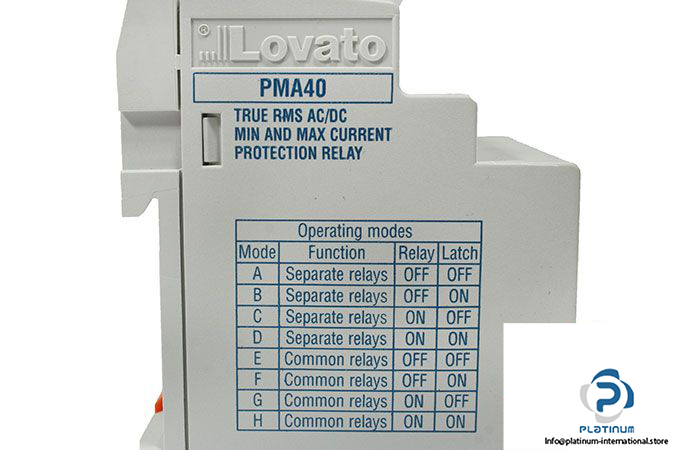

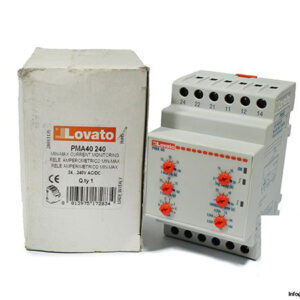

Lovato PMA40 240 Current Monitoring Relay

Manufacturer: Lovato

Type: Current Monitoring Relay

Model: PMA40240

Used for: for single-phase system, ac/dc minimum and maximum current control

Auxiliary Supply Voltage: 24 … 240 V AC/DC

Rated Current: 0.02-0.05- 0.25-1-5-16 A

Operating Voltage Range: 0.85 … 1.1 V

Rated Frequency: 50/60 Hz

Power Consumption: Max. 7 VA

Power Dissipation: Max. 1.7 W

Number of Relays: 2

Tripping Delay: 0.1 … 30 s

Inhibition Time: 1 … 60 s

Dimensions: 53.5 X 63 X 91 mm

Weight: 0.16 Kg
