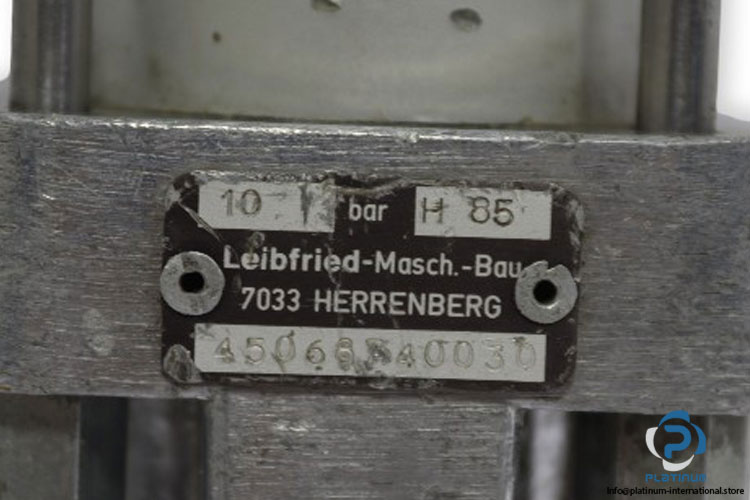

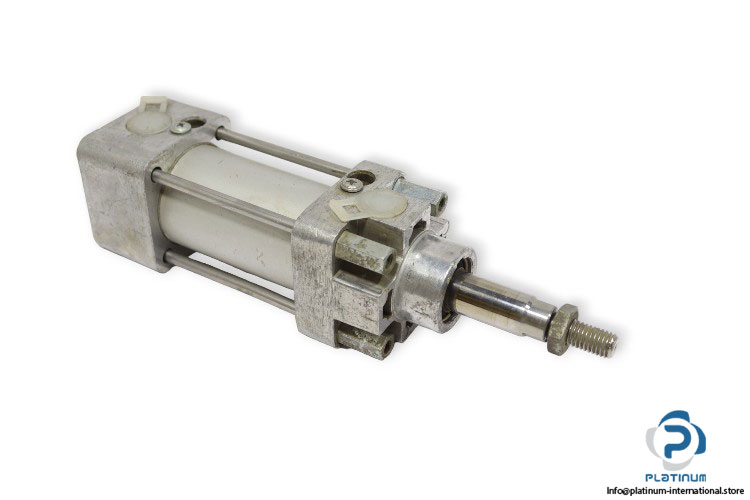

Luibfried 45068740030 ISO Cylinder

Manufacturer: Luibfried
Type: ISO Cylinder
Model: 45068740030


Media: Compressed Air
Stroke (mm): 30
Bore diameter (mm): 40
BorexStroke (mm): 40×30
Rod diameter (mm): 16
Fram Dimensions (mm): 170×57
Maximum pressure (bar): 10
Pneumatic connection: G1/4
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side
