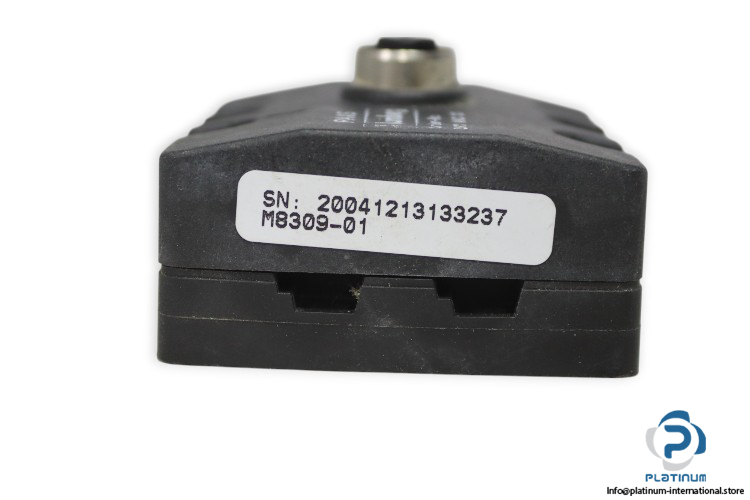

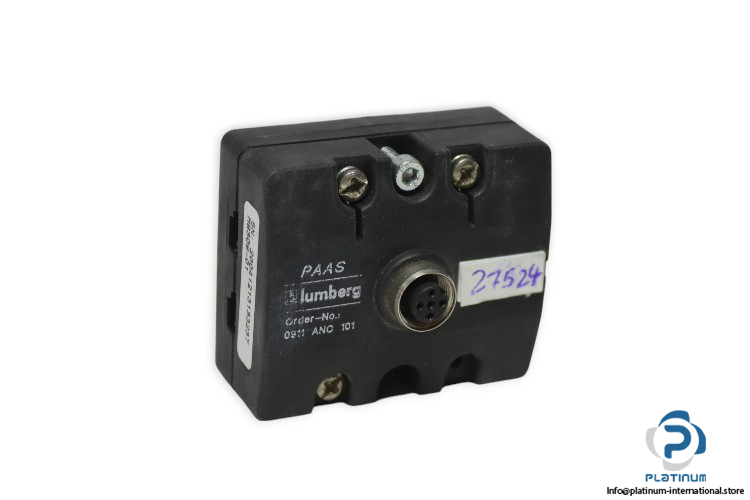

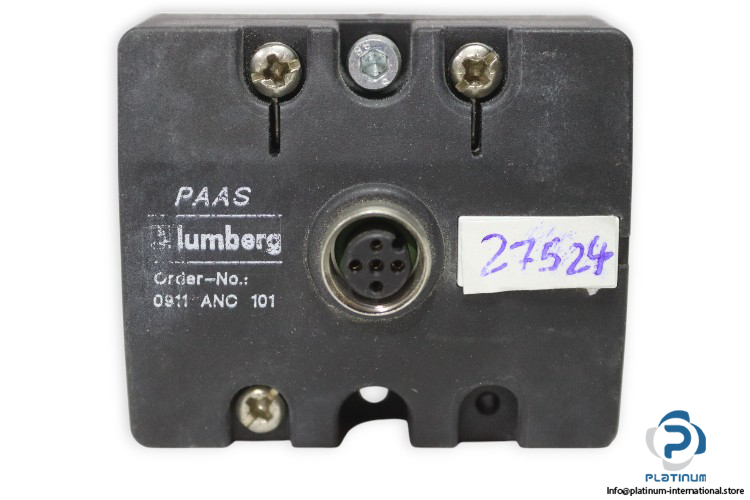

Lumberg 0911 ANC 101 Passive Branch Module
LUMBERG M8309-01 / PAAS passive branch module for ASi systems. 24 V DC supply, IP65-rated, M12 A-coded connector. Durable and compact for industrial automation.
Manufacturer: LUMBERG
Type: PASSIVE BRANCH MODULE / Circular Metric Connector
Model: M8309-01 / PAAS
Part No.: 0911 ANC 101
Product Family: ASi
Actuator Supply Voltage (Nominal): 24 V DC
Actuator Supply Voltage (Range): 10 V DC to 30 V DC
I/O Connection: M12, 5-poles, A-coded
Housing Material: Plastic, PA
Housing Color: Black
Fastening Torque (I/O Connection): M12: 0.5 Nm
Contact Base Material: CuZn
Degree of Protection: IP65
Dimensions (W x H x D): 55 mm x 32.5 mm x 64 mm
Ambient Temperature (Operation): -25 °C to 80 °C
The LUMBERG M8309-01 / PAAS is a robust passive branch module designed for reliable and efficient I/O distribution in ASi industrial environments. With a durable plastic housing, IP65 protection rating, and a 24 V DC nominal supply, it ensures dependable operation even in demanding conditions. Its compact design and M12 A-coded connection interface make it ideal for modern industrial automation systems.
