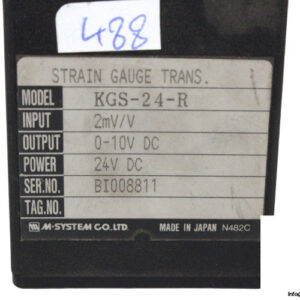

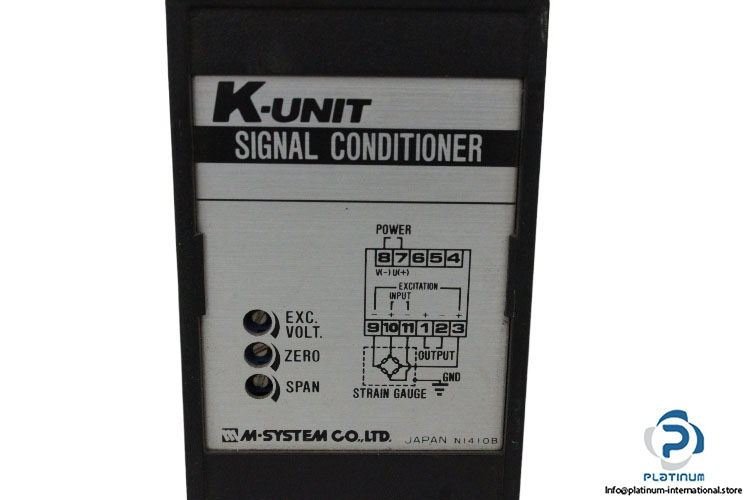

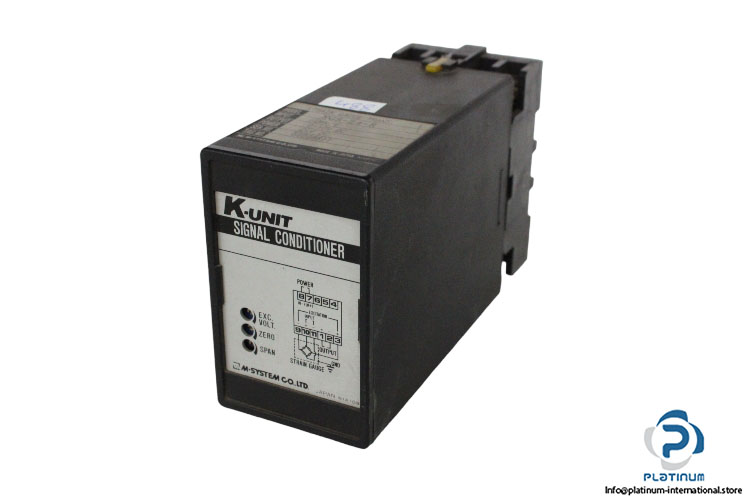

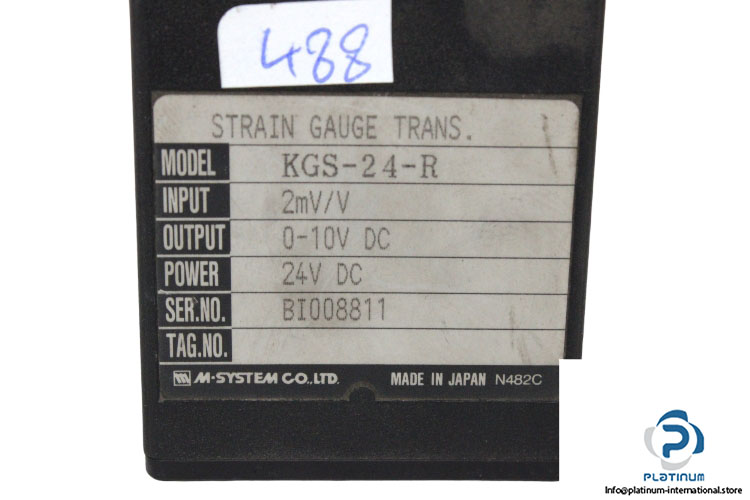

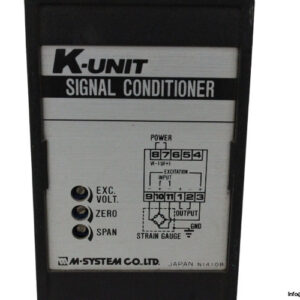

M.system/K.unit KGS-24-R Plug-IN Signal Conditioner

Manufacturer: M.System / K.Unit

Type: Plug-In Signal Conditioner

Model: KGS-24-R

Typical Applications

• Weighing system for tanks, hoppers, silos

• Weighing system using cranes

• Float level meter utilizing strain gauges

Input strain gauge: 2 mV/V

Output voltage: 0 … 10 V DC

Load resistance: 1000 Ω min

DC Power: 24 V DC

Construction: Plug-in

Connection: M3.5 screw terminals

Over range output: Approx. -10 … +120 % at 1 … 5 V

Screw terminal: Chromated steel (standard) or stainless steel

Housing material: Flame-resistant resin (black)

Mounting: Surface or DIN rail

Operating temperature: -5 … +55°C
