Magnehelic 2000-5KPA Differential Pressure Gauge
Used
In stock1 unitReady to ship
Differential Pressure Gauge
Magnehelic 2000-5KPA differential pressure gauge with 0“5 kPa measuring range, IP67 protection, frictionless operation, and 4-inch dial. Suitable for air and non-combustible gas applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

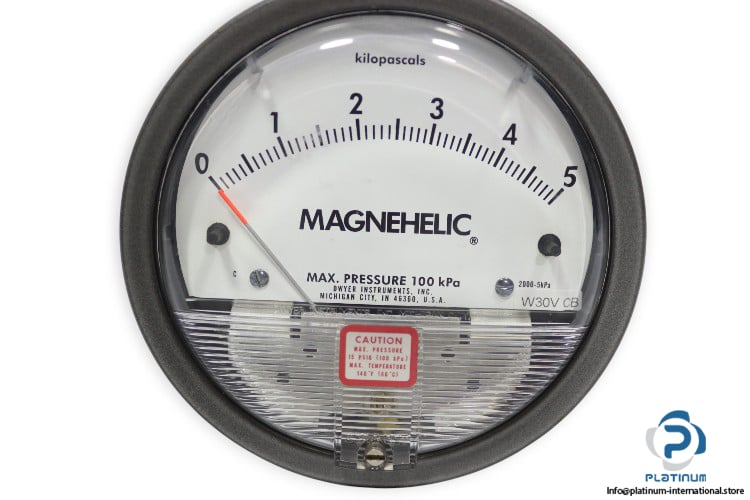

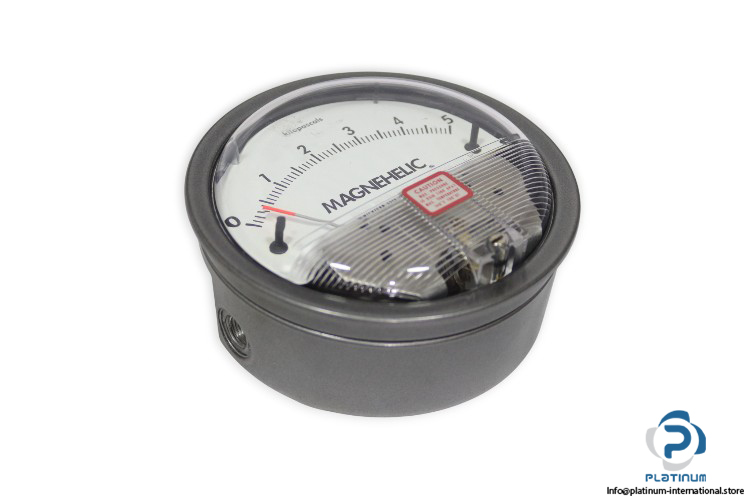

Magnehelic 2000-5KPA Differential Pressure Gauge
The Magnehelic 2000-5KPA is a differential pressure gauge designed for accurate and reliable measurement of low pressures in air and non-combustible, compatible gases. It features a frictionless mechanical operation that requires no external power, ensuring stable performance in industrial and HVAC applications.
Manufacturer: Magnehelic
Type: Differential Pressure Gauge
Model: 2000-5KPA

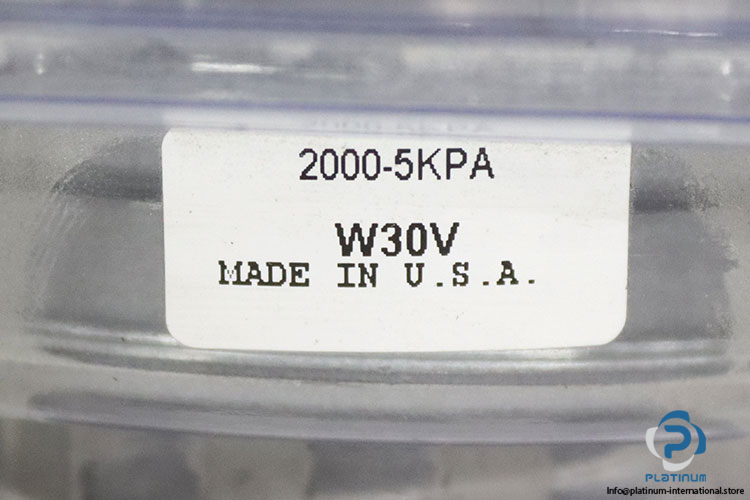

Code: W30V CB
Construction And Dimensions
Connection
| Service | Air And Non-Combustible, Compatible Gases |
| Pressure Range | 0 To 5 kPa |
| Maximum Pressure | 100 kPa |
| Maximum Operating Temperature | -6.7 °C To +60 °C |
| Ingress Protection | IP67 |
| Operation | Frictionless Movement, No Power Needed |
| Housing Material | Weatherproof Housing, Die Cast Aluminum Case And Bezel With Acrylic Cover |
| Dial Size | 4 Inch (101.6 mm) Diameter |
| Process Connection | G 1/8 Female NPT |
