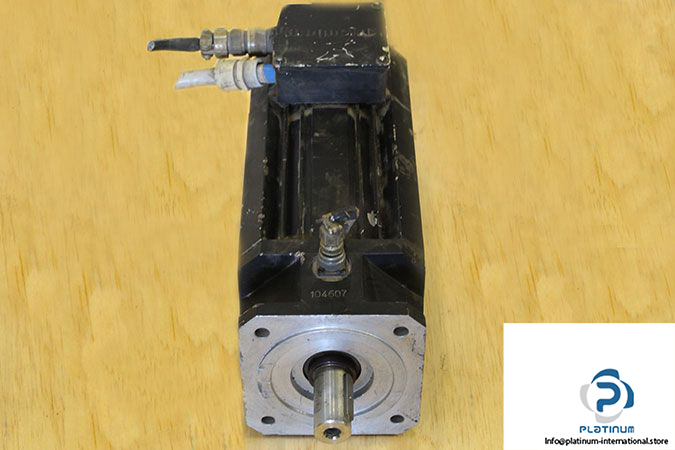

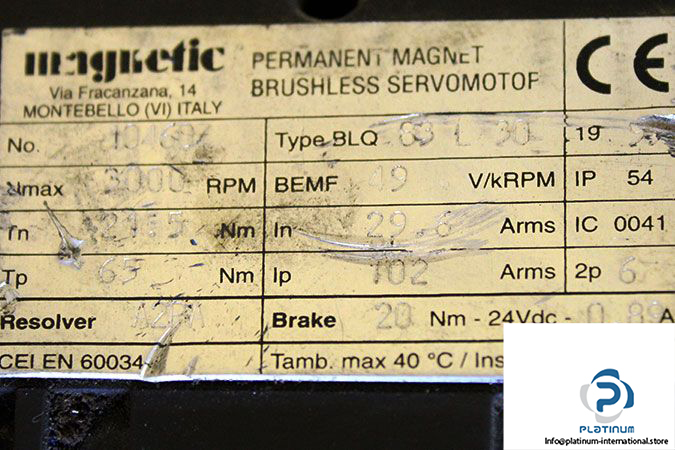

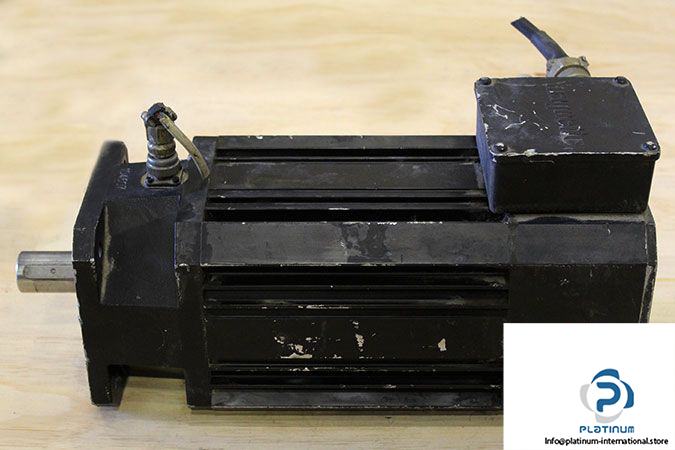

Magnetic BLQ 83 L 30 Brushless Servo Motor

Manufacturer: MAGNETIC

Type: BRUSHLESS SERVO MOTOR

Model: BLQ 83 L 30

Stall Current (In): 29.6 Arms

Max Current (Ip): 102 Arms

Voltage: 49 V/Krpm

Max. Speed: 3000 Revolution Per Minute (rpm)

Stall Torque (Tn): 21.5 Nm

Max Torque (Tp): 65 Nm

Brake Voltage: 24 VDC

Brake Current: 0.89 A

Brake Torque: 20 Nm

Max. Temperature: 40 °C

Insulation Class: F

Resolver: A2PA

Protection Class: IP 54

Weight: 34.00 kg
