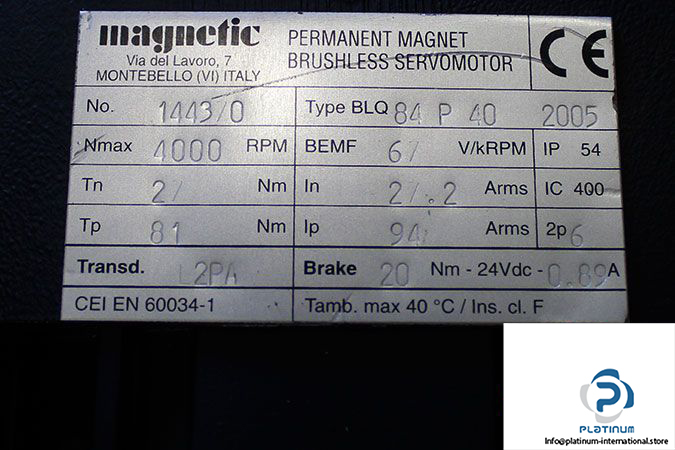

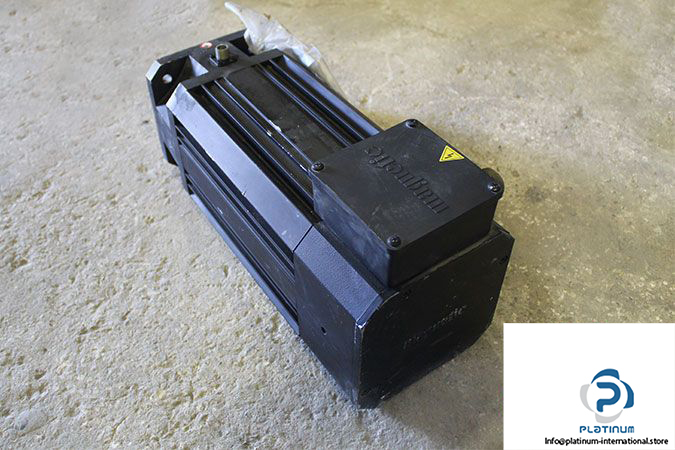

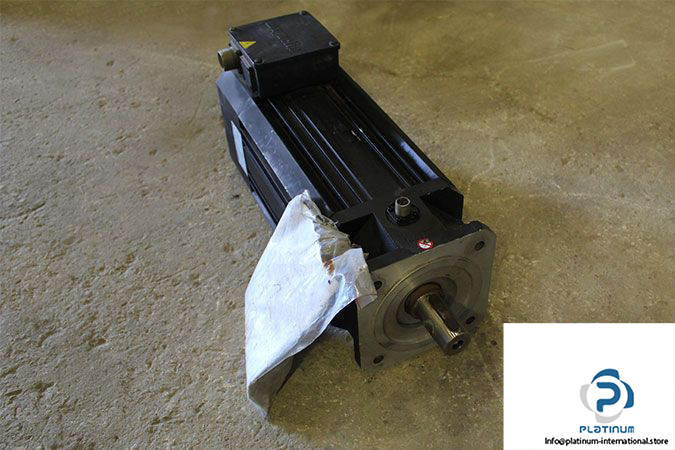

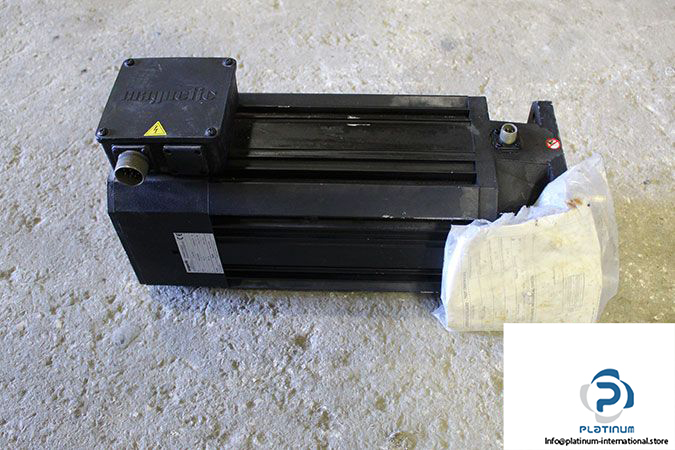

Magnetic BLQ84P 40 Brushless Servomotors

Manufacturer: Magnetic

Type: Brushless Servomotor

Model: BLQ 84 P 40

Max Supply Voltage [V]: 345

Rated Speed [rpm]: 4000

Continues Stall Torque [Nm]: 27

Continues Stall Current [A]: 27.2

Peak Stall Torque [Nm]: 81

Peak Current [A]: 94

Bemf [V/krpm]: 86.8

Terminals Resistance [Ohm]: 0.3

Terminals Inductance [mH]: 8.5

Moment of Inertia [kgcm²]: 62

Supply Voltage Brake [VDC]: 24

Rated Current Brake [A]: 0.89

Torque Emergency Brake [Nm]: 20

Max. Temperature [°C]: 40

Insulation Class: F

Protection Class [IP]: 54

Weight [Kg]: 35
