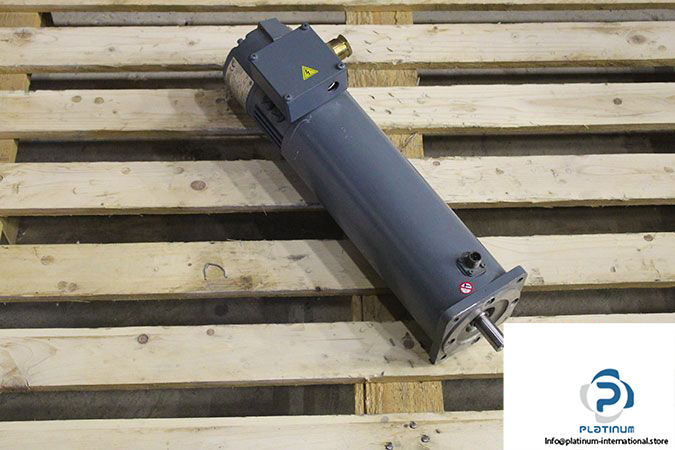

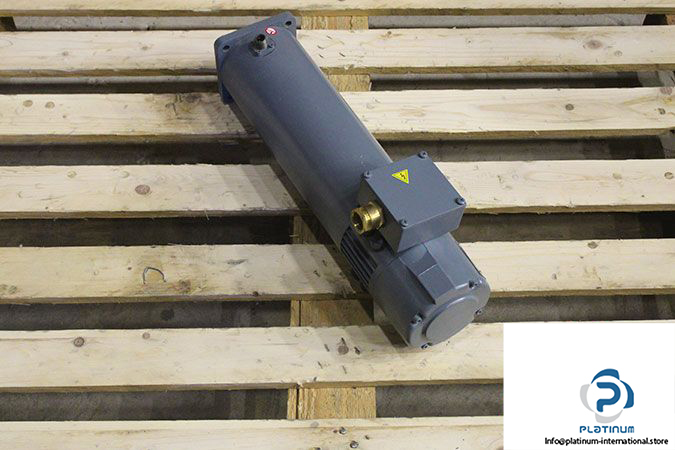

Magnetic BR 60L 28/17 Permanent Magnets DC Servomotor
Used
In stock1 unitReady to ship
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: Magnetic
Type: Permanent Magnets DC Servomotors

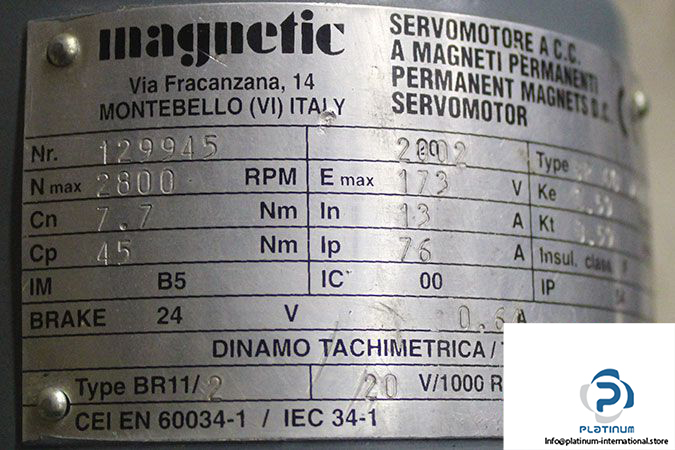

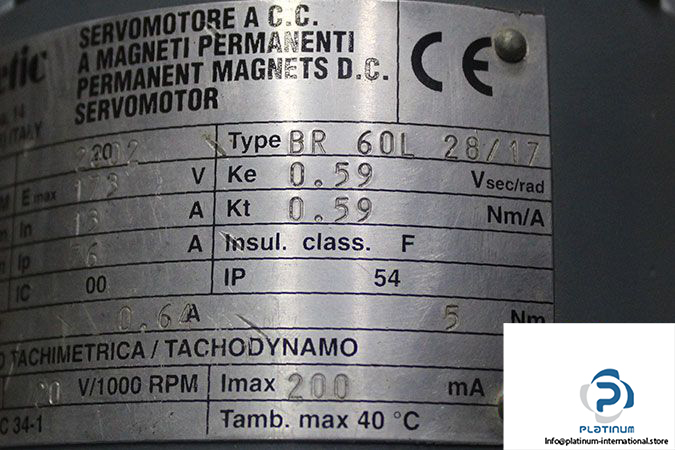

Model: BR60L28/17
Part No.: 129945
Rated Torque [Nm]: 7.7
Rated Current [A]: 13
Peak Current [A]: 76
Peak Torque [Nm]: 45
Max Voltage [V]: 173
Constant Voltage [Vs/rad]: 0.59
Constant Torque [Nm/A]: 0.59
Max Speed [rpm]: 2800
Brake Voltage [VDC]: 24
Brake Current [A]: 0.6
Brake Torque [Nm]: 5
Dinamo Type: BR11/2
Constant Voltage [V/1000rpm]: 20
Max Current [mA]: 200
Max. Ambient Temperature [°C]: 40
Mounting Position [IM]: B5
Protection Class [IP]: 54
Thermal Class: F
Weight [kg]: 22.0
