Martonair SM91750 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
The Martonair Norgren SM91750 ISO Cylinder features a square profile, 1.7 Inch bore, 200 mm stroke, and 10 bar pressure capacity. It™s double-acting and designed for compressed air operation.1.71/410200ActingActuatorAirbarboreCompressedconnectionCylinderDoubleEndframeGinchIndustrialISOmaleMartonairmmNorgrenOnePneumaticPressureRODsideSM91750SquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

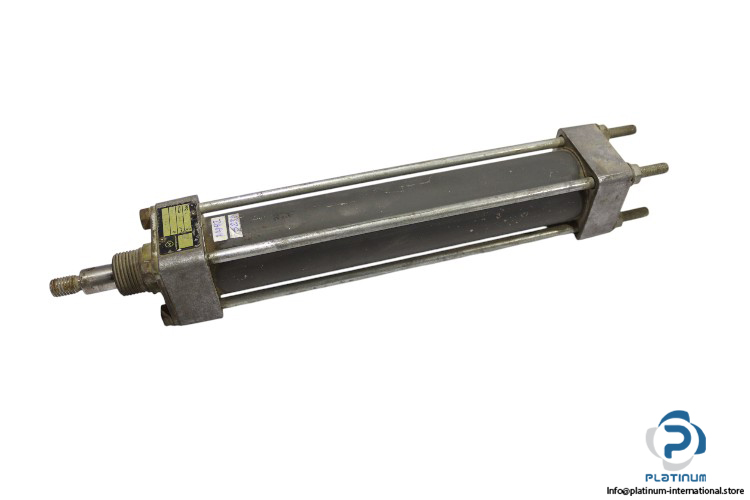

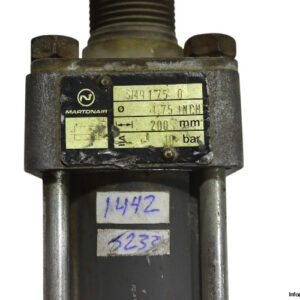

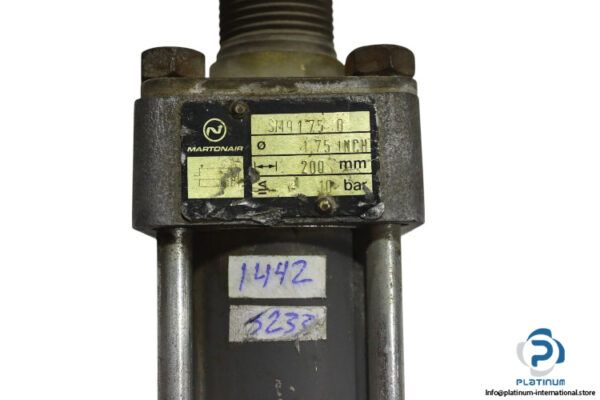

Martonair Norgren SM91750 ISO Cylinder
The Martonair Norgren SM91750 ISO Cylinder is a high-quality pneumatic actuator designed for industrial applications. It features a square shape and robust construction, operating with compressed air and capable of handling up to 10 bar pressure.
Manufacturer: MARTONAIR NORGREN
Type: ISO Cylinder
Model: SM91750
| Media | Compressed Air |
| Bore Diameter | 1.7 Inch |
| Stroke | 200 mm |
| Bore x Stroke | 1.7 Inch x 200 mm |
| Rod Diameter | 15 mm |
| Frame Dimensions | 58 x 325 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
