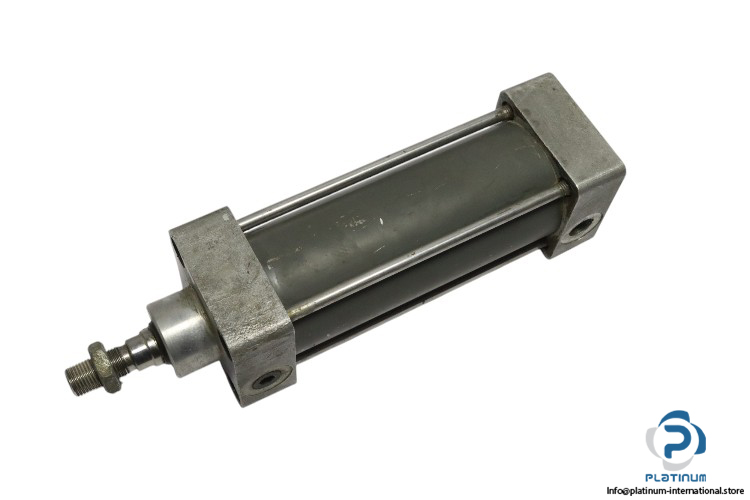

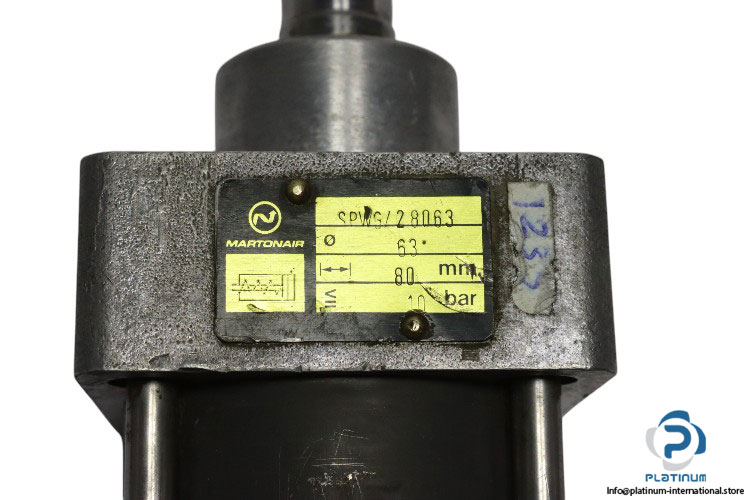

Martonair SPWG/28063 ISO Cylinder

MARTONAIR ISO Cylinder SPWG/28063

The MARTONAIR ISO Cylinder SPWG/28063 is designed for high-performance pneumatic applications. It features a robust square shape, a maximum pressure of 10 bar, and operates using compressed air. With a stroke of 80 mm and bore diameter of 63 mm, this cylinder ensures reliable and efficient operation in various industrial environments.

Manufacturer: MARTONAIR

Model: SPWG/28063

Technical Specifications

• Media: Compressed Air
• Bore Diameter: 63 mm
• Stroke: 80 mm
• Bore x Stroke: 63 x 80 mm
• Rod Diameter: 20 mm
• Frame Dimensions: 75 x 255 mm
• Pneumatic Connection: G 3/8
• Pressure Max.: 10 bar
• Operation Mode: Single
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
