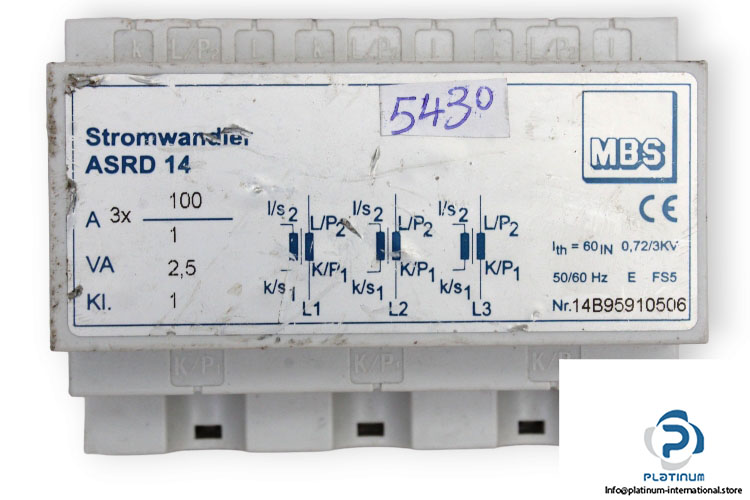

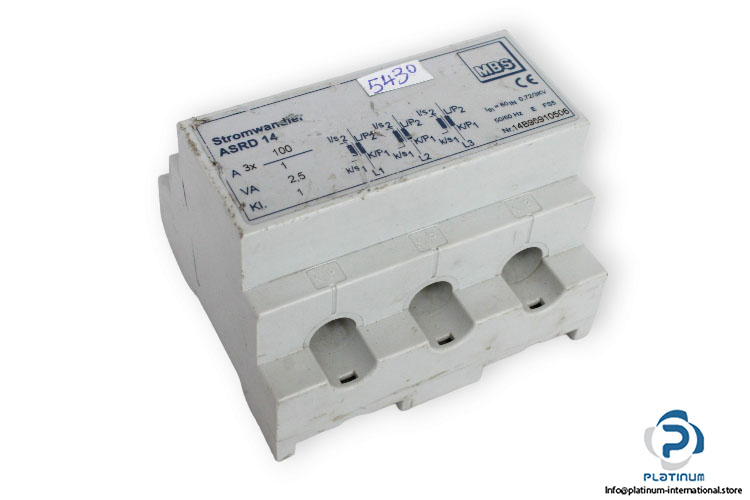

MBS Asrd 14 Current Transformer

Manufacture: Mbs
Type: Current Transformer
Model: ASRD14
Part No.: 14B95910506

Thermal nominal continuous current Icth: 1,0 x Ipr
Thermal nominal short-time current Ith: 60 x Ipr, 1s
Primary Current: 3×100 A
Secondary Current: 1 A
Power: 2,5 VA
Max. operating voltage Um: 0,72 kV
Isolation test voltage: 3 kV, Ueff, 50 Hz, 1 Min.
Nominal rated frequency: 50/60 Hz
Isolation class: E
Dimensions: 105 x 71 x 90 mm
