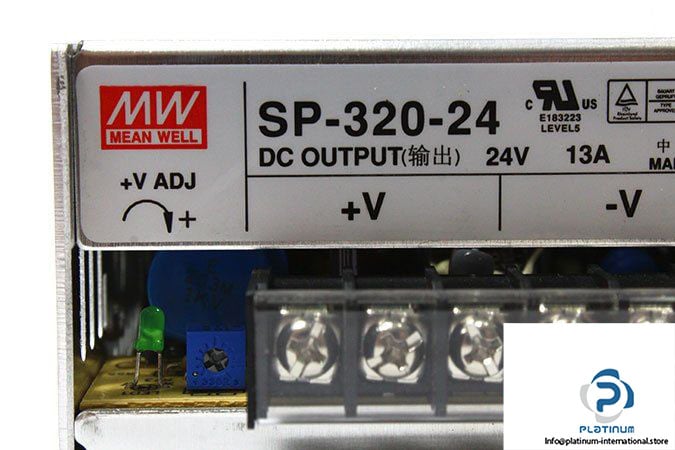

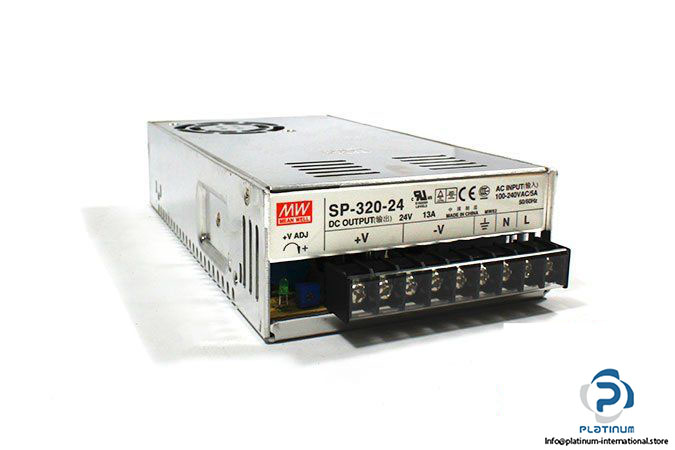

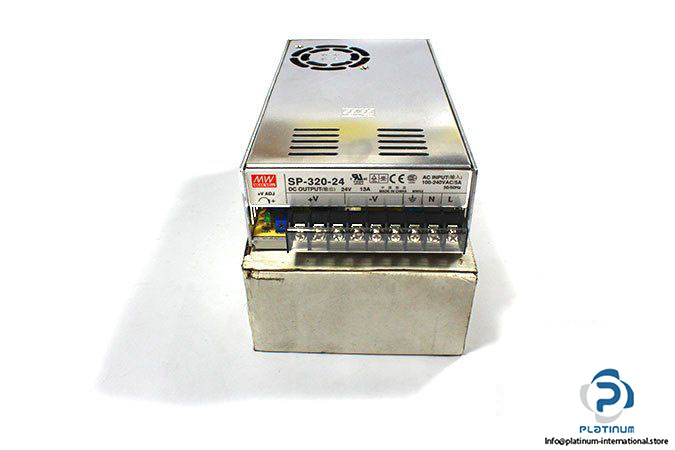

Mean Well SP-320-24 Switching Power Supply

Manufacturer: MEAN WELL

Type: 320W SINGLE OUTPUT SWITCHING POWER SUPPLY WITH PFC FUNCTION

Series: SP-320

Model: SP-320-24

 Features:

• Protections ( Short circuit – Overload – Over voltage -Over temperature )
• Forced air cooling by built-in DC Fan
• Built-in fan speed control
• Fixed switching frequency at 100KHz

Output DC Voltage: 24 V

Output Current: 13 A

Output Power: 312 Watt

Voltage Tolerance: ± 1.0%

Input Voltage Range: 88-264 V AC

Input Voltage Range: 124-370 V DC

Input Current: 5A

Voltage Adj. Range: 20-26.4 V

Frequency: 50/60 Hz

Temperature: -40 … 85 °C

Weight: 1 kg
