MGM BM 56 B2 Brake Motor
New
In stock1 unitReady to ship
BRAKE MOTOR
MGM BM56B2 brake motor with electromagnetic brake, 0.12 kW at 50 Hz, 0.14 kW at 60 Hz, IM B14 construction, IP54 protection, insulation class F, and continuous duty operation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

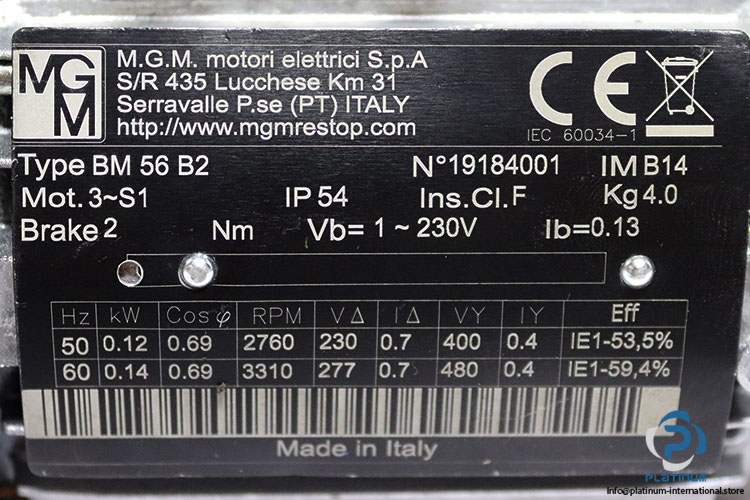

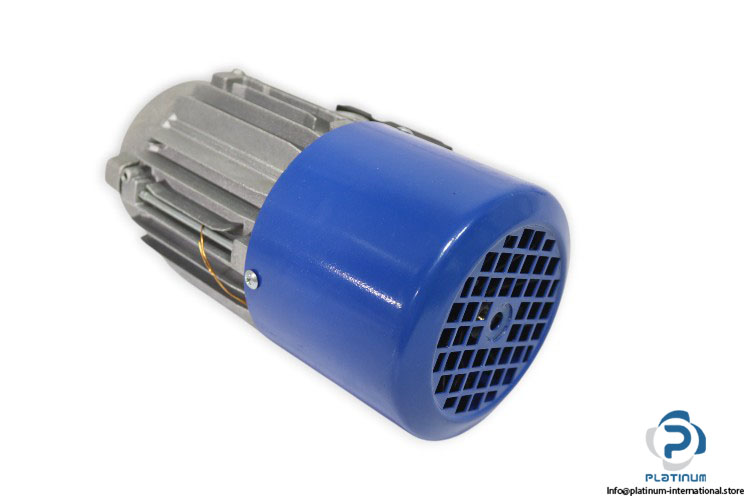

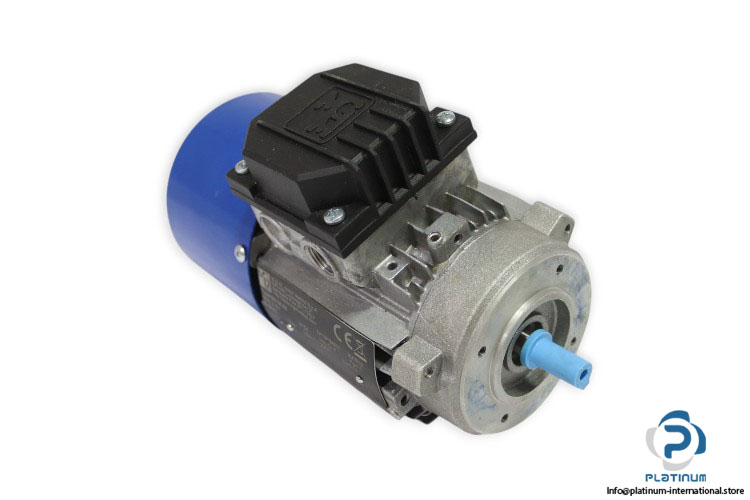

MGM BM56B2 Brake Motor
The MGM BM56B2 is a compact and efficient brake motor designed with an integrated electromagnetic brake for reliable stopping performance. Built for continuous duty (S1) applications, it delivers dependable operation with protection class IP54 and insulation class F, making it suitable for demanding industrial environments.
Manufacturer: MGM
Type: Brake Motor
Model: BM56B2
Part No.: 19184001
Performance at 50 Hz
Performance at 60 Hz
| Construction | IM B14 |
| Brake | Type 2 (Electromagnetic brake motor) |
| Protection Class | IP54 |
| Insulation Class | F |
| Duty Cycle | S1 (Continuous duty) |
| Supply Voltage for Brake (Vb) | 1~ 230 V |
| Brake Current (Ib) | 0.13 A |
| Power | 0.12 kW |
| Voltage Δ/Y | 230/400 V |
| Current Δ/Y | 0.7/0.4 A |
| Speed | 2760 rpm |
| Power Factor (cos φ) | 0.69 |
| Efficiency | IE1 “ 53.5% |
| Power | 0.14 kW |
| Voltage Δ/Y | 277/480 V |
| Current Δ/Y | 0.7/0.4 A |
| Speed | 3310 rpm |
| Power Factor (cos φ) | 0.69 |
| Efficiency | IE1 “ 59.4% |
