MGM BM 63 A4 Brake Motor

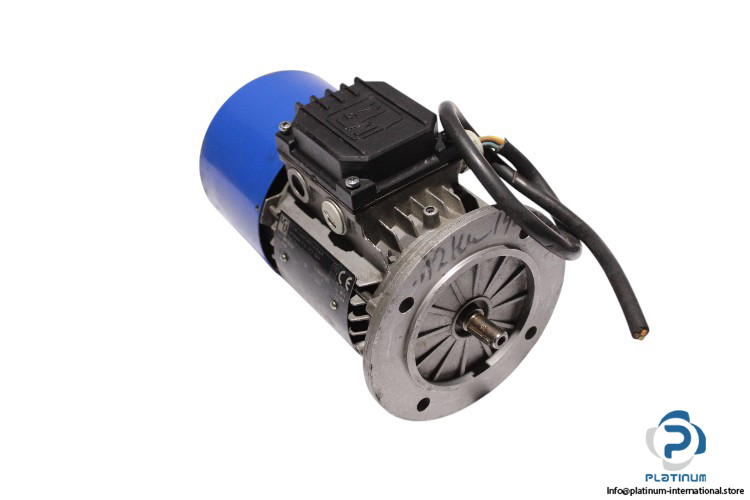

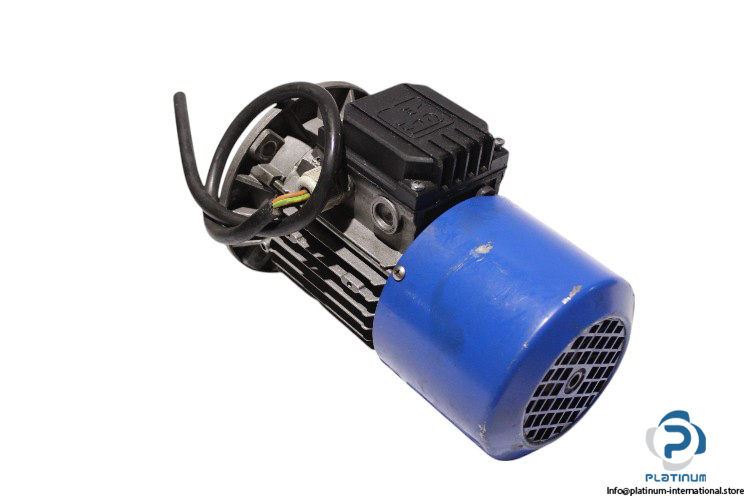

MGM BM63A4 BRAKE MOTOR

The MGM BM63A4 Brake Motor offers reliable and efficient performance for various industrial applications. With a rated power of 0.12/0.14 kW, rated speed of 1330/1600 min-1, and a brake torque of 5 Nm, this motor ensures smooth and precise operation. It is designed with a thermal class of F, protection class IP54, and various mounting options for flexibility in installation.

Manufacturer: MGM

Type: BRAKE MOTOR

Model: BM63A4

Part No.: 08281825

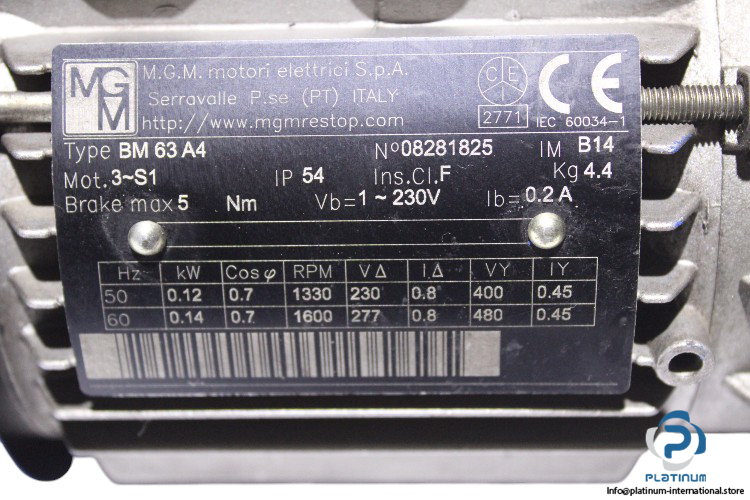

Technical Specifications

• Rated Power [kW]: 0.12/0.14
• Rated Voltage [V]: 230 delta / 400 star at 50 Hz, 277 delta / 480 star at 60 Hz
• Rated Current [A]: 0.45 / 0.45
• Rated Speed [min-1]: 1330 / 1600
• Frequency [Hz]: 50/60
• Protection Class [IP]: 54
• Thermal Class: F
• Duty: S1
• Power Factor [cos]: 0.7
• Mounting Positions: IMB14
• Brake Voltage [V]: 230
• Brake Torque [Nm]: 5
• Brake Current [A]: 0.2
