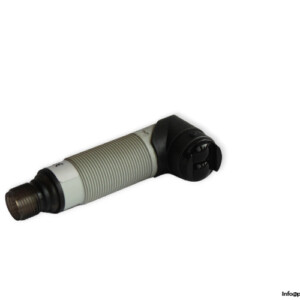

Micro Detectors SPC/AP-0E Photoelectric Sensor

Manufacturer: Micro Detectors MD

Type: Photoelectric Sensor

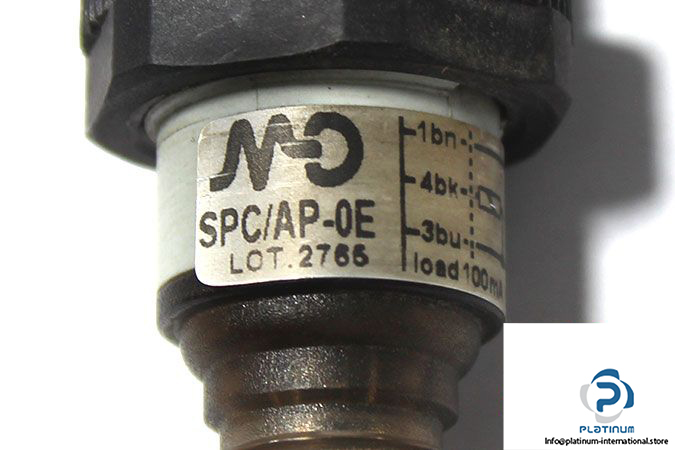

Model: SPC/AP-0E

Optic: Right Angle

Nominal Sensing Distance: 5 m with Reflector RL 110

Differential Travel: ≤ 10 %

Ripple: ≤ 10 %

Switching Frequency: 250 Hz

Power-on Delay: 200 ms

Operating Voltage: 10…30 VDC

Supply Current: 30 mA

load Current: 100 mA

Tightening Torque: 1 Nm

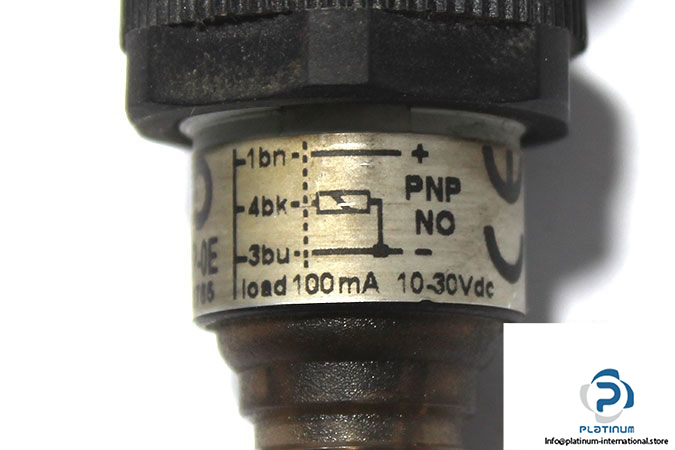

Electrical Design: PNP

Output Function: Normally Open

Protection Class: IP67

LEDs: Yellow

Operating Temperature: -25…70°C

Connection: 4-pin / M12

Housing: PBT

Mounting: M18

Length: 76 mm

Weight: 30 g
