Mindman MCGB-03-25-50 BSP Twin-Guide Cylinder
Used
In stock1 unitReady to ship
Twin-Guide Cylinder
The Mindman MCGB-03-25-50 BSP twin-guide cylinder features a 50 mm stroke and 25 mm tube diameter. It operates with double acting motion, a 1 MPa max pressure, and is ideal for industrial pneumatic systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

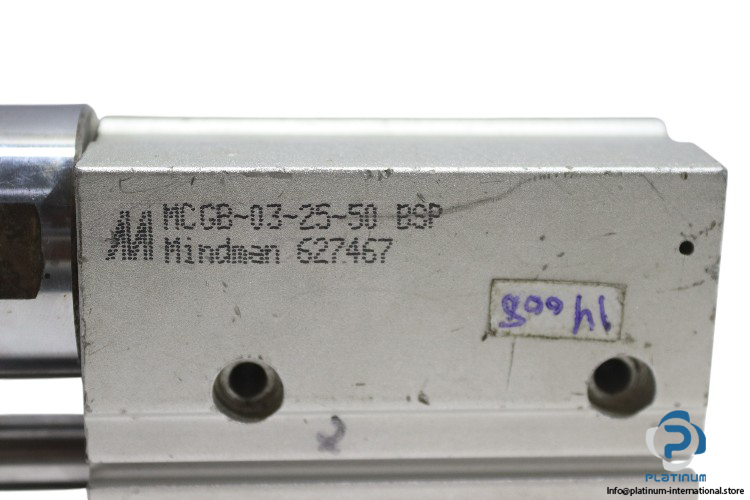

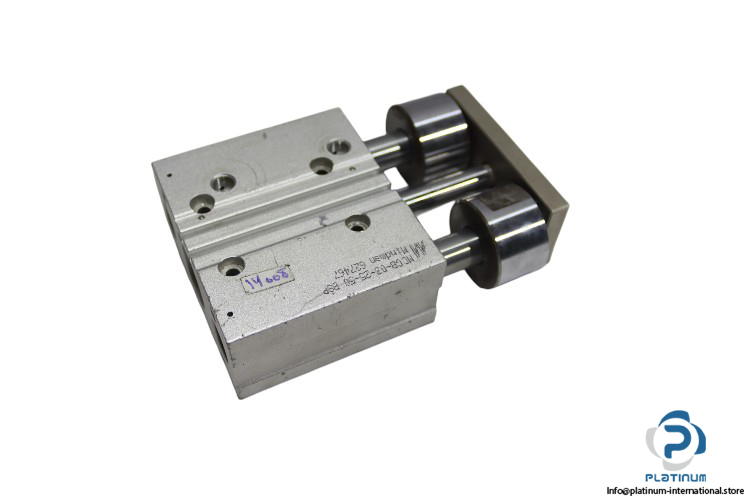

Mindman MCGB-03-25-50 BSP Twin-Guide Cylinder
The Mindman MCGB-03-25-50 BSP twin-guide cylinder is a durable pneumatic actuator designed for high-performance industrial applications. With a stroke length of 50 mm and a tube inner diameter of 25 mm, this cylinder ensures smooth and precise linear motion under high pressure conditions.
Manufacturer: MINDMAN
Type: Twin-guide Cylinder
Model: MCGB-03-25-50 BSP
Part No.: 627467
Technical Data:
- Stroke Length: 50 mm
- Tube Inner Diameter: 25 mm
- Type of Bearing: Stop/Slide Bearing
- Max. Operating Pressure: 1 MPa
- Mode of Operation: Double Acting
- Medium: Air
- Pneumatic Connection: G1/8
- Ambient Temperature: -5°C to +60°C
