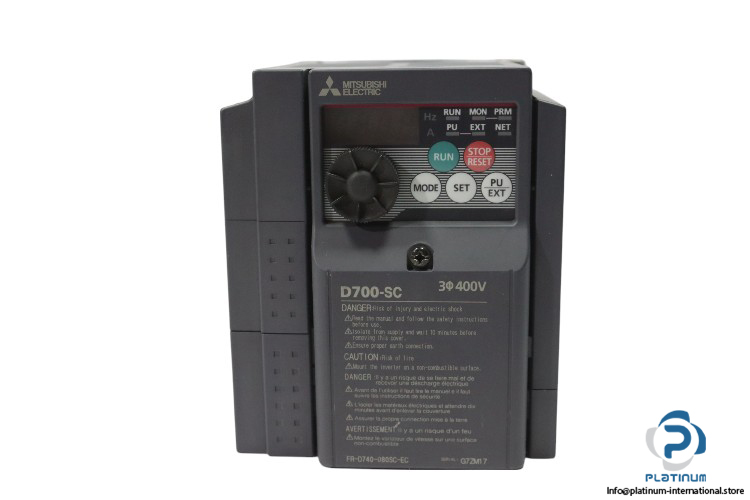

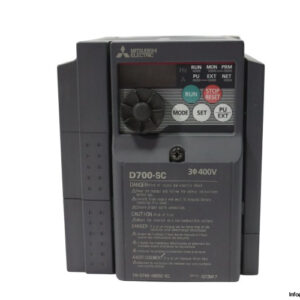

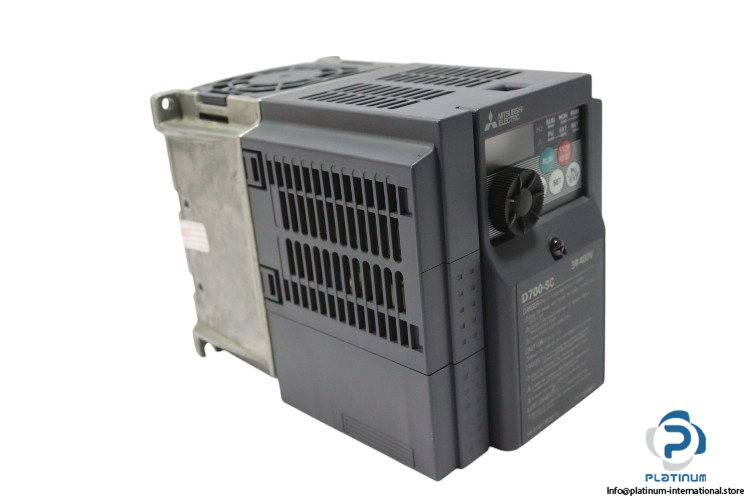

Mitsubishi FR-D740-080SC-EC Compact Inverter

Mitsubishi FR-D740-080SC-EC Compact Inverter “ FR-D700 Series

The Mitsubishi FR-D740-080SC-EC is a high-performance compact inverter from the FR-D700 series. Designed for 3-phase AC induction motors, it offers advanced control features, efficient energy management, and reliable protection for a wide range of industrial applications.

Manufacturer: Mitsubishi

Type: Compact Inverter

Series: FR-D700

Model: FR-D740-080SC-EC

Technical Data:

• Minimum Rated Voltage: 380 V
• Minimum Permissible Voltage: 325 V
• Maximum Rated Voltage: 480 V
• Maximum Permissible Voltage: 528 V
• Current Type: AC
• Phases: 3
• Rated Output Current ND: 8 A
• Rated Motor Capacity ND: 3.7 kW
• Frequency Range: 0.2“400 Hz
• Control Method: V/F Control, Soft-PWM/High Frequency PWM, Magnetic Flux Vector Control
• Motor Type: Induction Motor
• Brake Chopper ED: 30%
• Display: Built-in
• Display Type: 4 Digits LED
• Integrated Digital Inputs: 5
• Digital Outputs (Transistor): 1
• Digital Outputs (Relay): 1
• Integrated Analogue Inputs: 2
• Integrated Analogue Outputs: 1
• I/O Type of Terminal Block: Spring Clamp
• Leakage Current: 1 mA
• Power Loss ND: 180 W
• Standby Power Consumption: 10.5“17 W
• Protection Class: IP20
• Dimensions: 165.5 x 1.5 x 108 mm
