Moeller DILM17-10 Contactor
New
In stock2 unitsReady to ship
Moeller / Eaton Contactor DIL M17-10 with 3 poles, 1 normally open contact, rated operational current of 40 A at AC-1 (380 V), and high impulse withstand voltage of 8000 V AC. Ideal for industrial control and switching applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

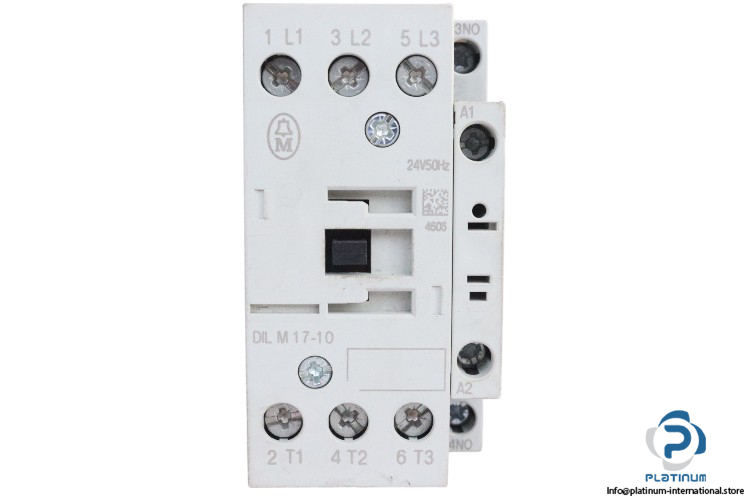

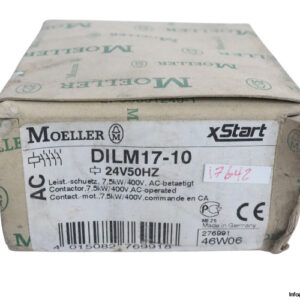

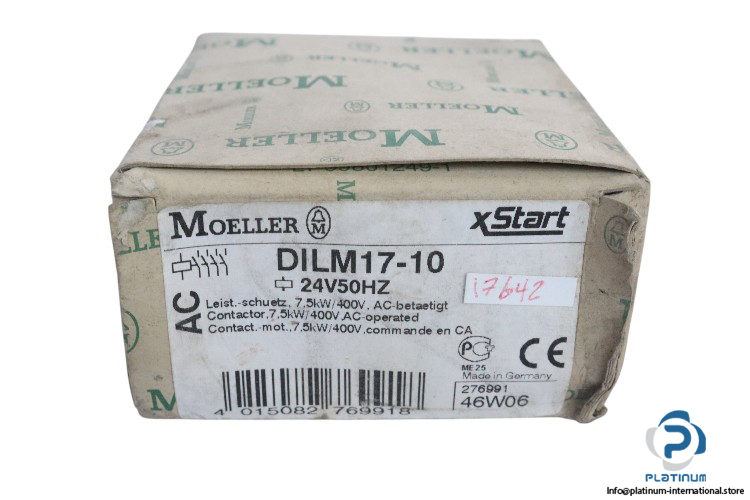

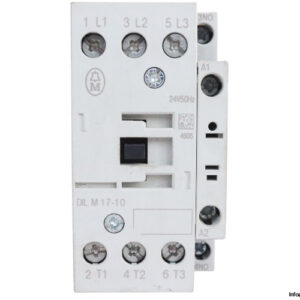

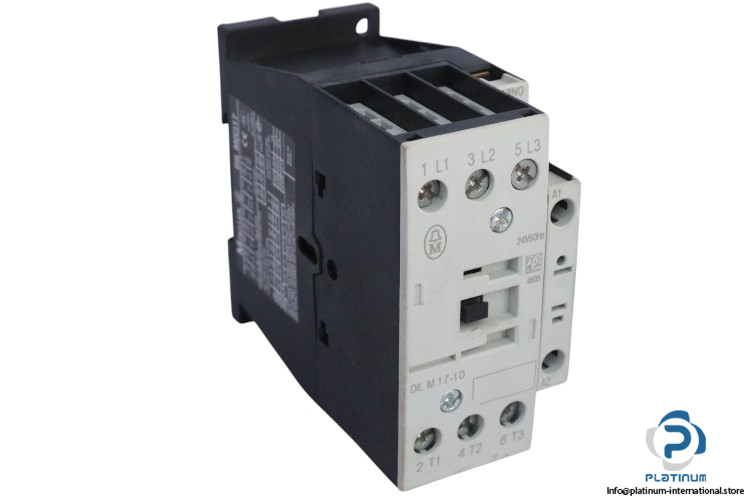

Moeller / Eaton Contactor DIL M17-10
Moeller / Eaton Contactor DIL M17-10 is designed for high-efficiency control and switching in industrial electrical applications. It is part of the DILM series and offers reliable performance with high operational current ratings, compact size, and easy installation. Below are the key technical specifications:
- Manufacturer: Moeller / Eaton
- Type: Contactor
- Model: DIL M17-10
- Series: DILM
- EAN No.: 4015082769918
Technical Data:
- Coil Voltage: 24 V AC at 50 Hz
- Conventional Thermal Current (Ith): 35 A at 60°C (3-pole, open)
- Rated Operational Current (Ie) at AC-1, 380 V, 400 V, 415 V: 40 A
- Rated Operational Current (Ie) at AC-3, 380 V, 400 V, 415 V: 18 A
- Rated Operational Current (Ie) at AC-4, 440 V: 10 A
- Rated Operational Current (Ie) at DC-1, 60 V, 110 V, 220 V: 35 A
- Rated Operational Power at AC-3, 380/400 V, 50 Hz: 7.5 kW
- Rated Impulse Withstand Voltage (Uimp): 8000 V AC
- Contact: 1 Normally Open
- Number of Poles: 3
- Connection: Screw terminals
- Degree of Protection: IP00
- Pollution Degree: 3
- Operating Temperature: -25 to 60°C
- Dimensions: 97 x 85 x 45 mm
