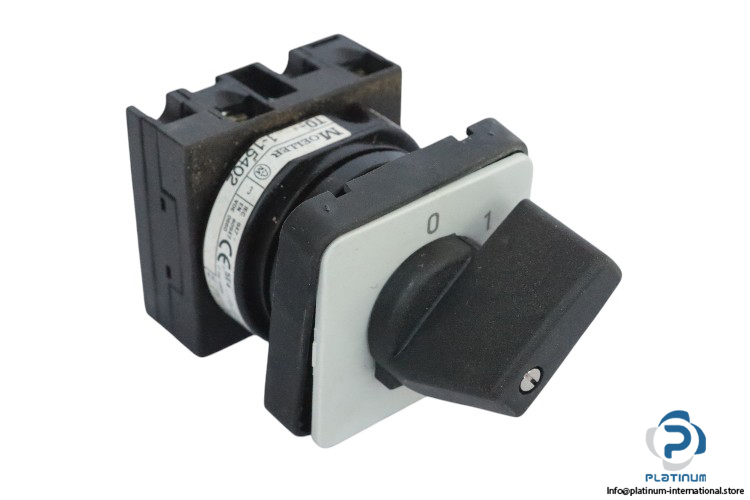

Moeller T0-1-15402/E Changeover Switch

Moeller / Eaton Changeover Switch T0115402/E

Moeller / Eaton Changeover Switch T0115402/E is a versatile and reliable control switch designed for industrial applications. It ensures secure and efficient switching between operational states with features such as high rated voltage, operational current, and durable protection standards.

• Manufacturer: Moeller / Eaton
• Type: Changeover Switch / Control Switch
• Model: T0115402/E
• Series: T0

Technical Data:

• Rated Voltage Ue: 960 V AC
• Rated Current Ie: 12 A
• Rated Operational Current at AC-15 at 415 V: 4 A
• Rated Breaking Capacity at 400/415 V: 110 A
• Rated Operational Power at AC-23A at 380 to 440 V: 6.5 kW
• Rated Operational Power at AC-3 at 380 to 440 V: 4/2.2 kW
• Rated Impulse Voltage (Uimp): 6 kV
• Switching Angle: 45 degrees
• Number of Contacts: 2
• Number of Poles: Two-pole
• Pollution Degree: 3
• Actuator Type: Toggle
• Fitted With: Black thumb grip and front plate with 0 (off) position inscription: 0-1
• Mounting: Flush mounting
• Protection Class: IP65
• Standard: IEC 947, EN 60947, VDE 0660
• Ambient Operating Temperature: -25 to 50 °C
• Dimensions: 76 x 48 x 48 mm
