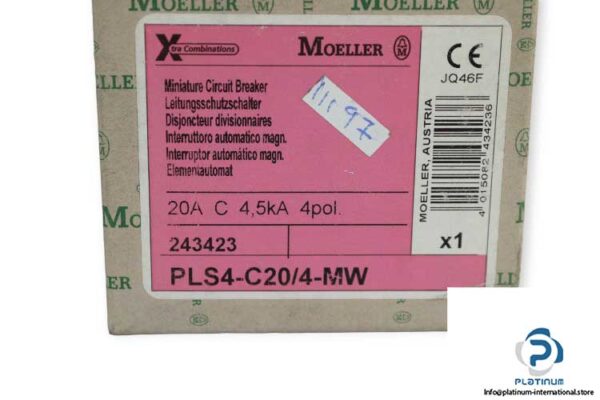

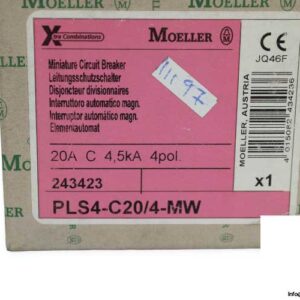

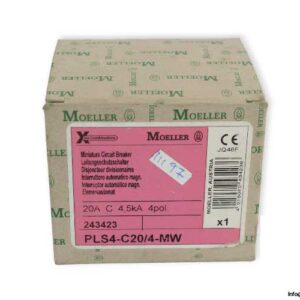

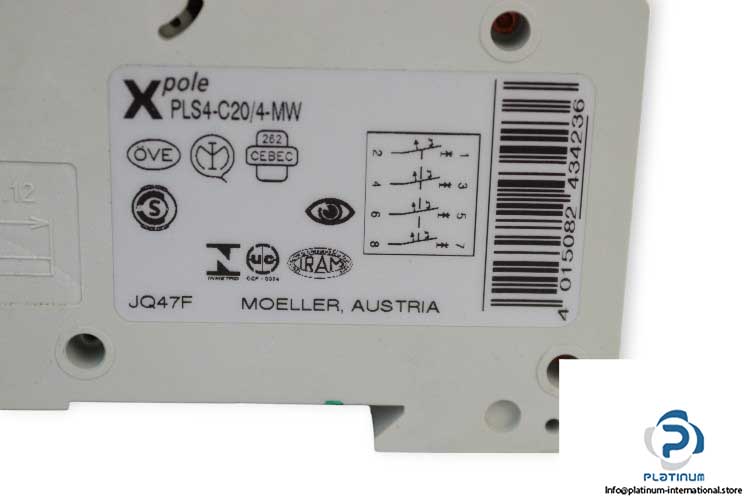

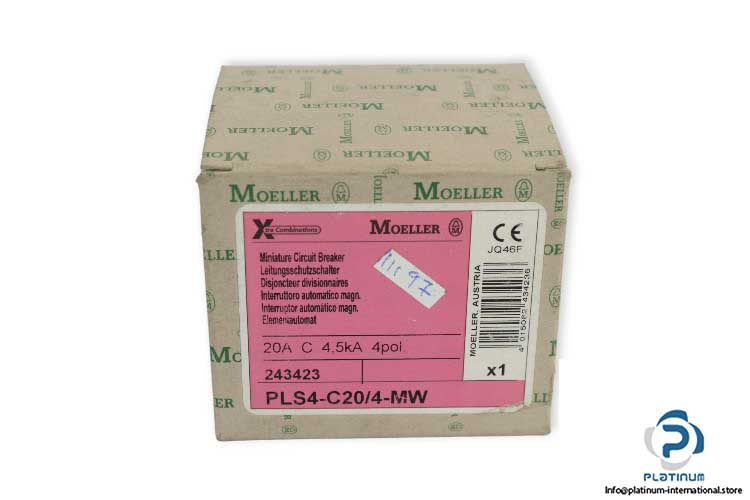

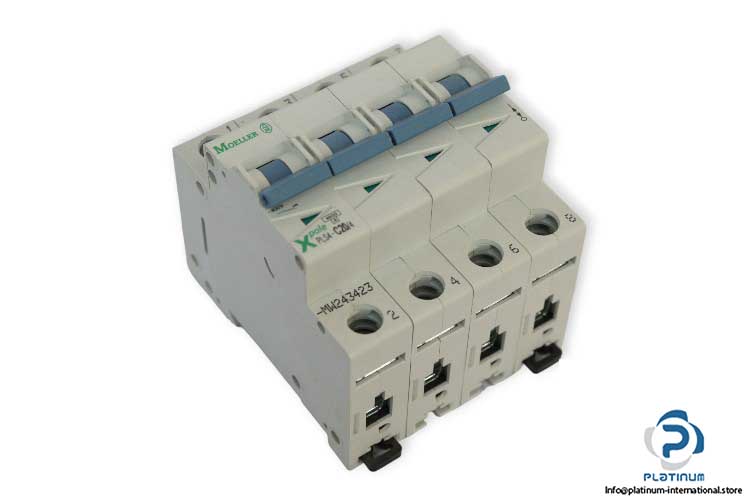

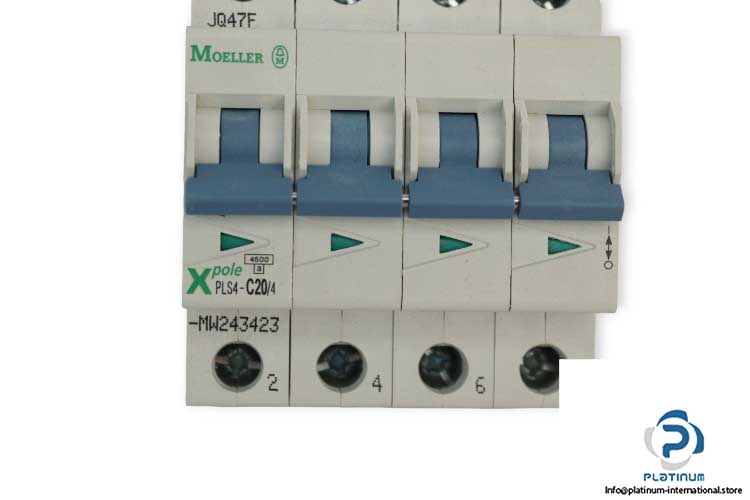

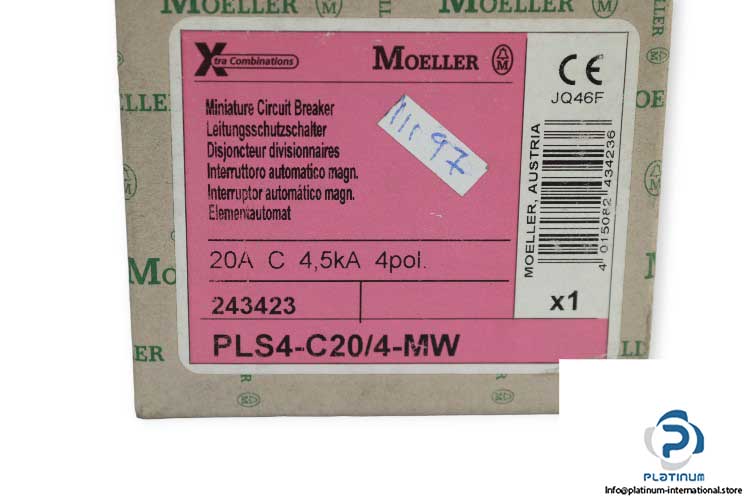

Moeller PLS4-C20/4-MW Miniature Circuit Breaker

Manufacturer: Moeller / Eaton
Type: Miniature circuit breaker
Model: PLS4-C20/4-MW
Part No.: 243423

Application: Switchgear for residential and commercial applications xPole – Switchgear for residential and commercial applications
Rated operational voltage (Ue):  max 400 V AC
Rated insulation voltage (Ui): 440 V AC
Rated impulse withstand voltage (Uimp): 4 kV
Frequency: 50/60 Hz
Rated Current (In): 20 A
Rated short-circuit breaking capacity Icn: 4.5 kA
Pollution degree: 2
Power loss: 10.5 W
Degree of protection: IP20
Ambient operating temperature: -25 … 75°C
Number of poles: 4 Poles
Dimensions: 85 x 73 x 70 mm
