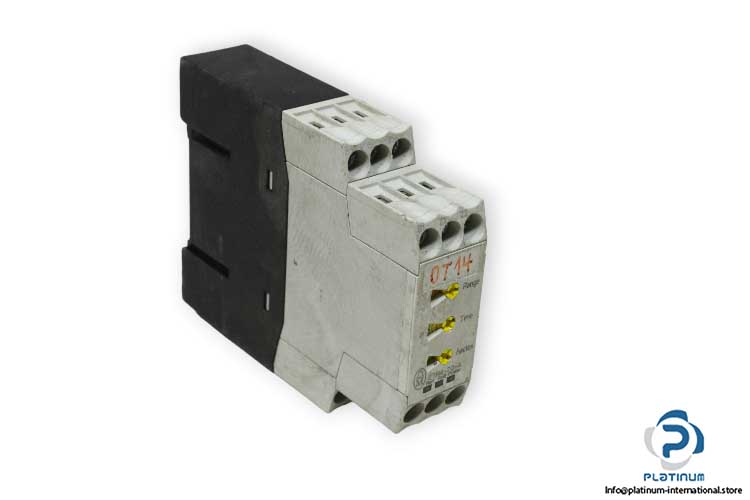

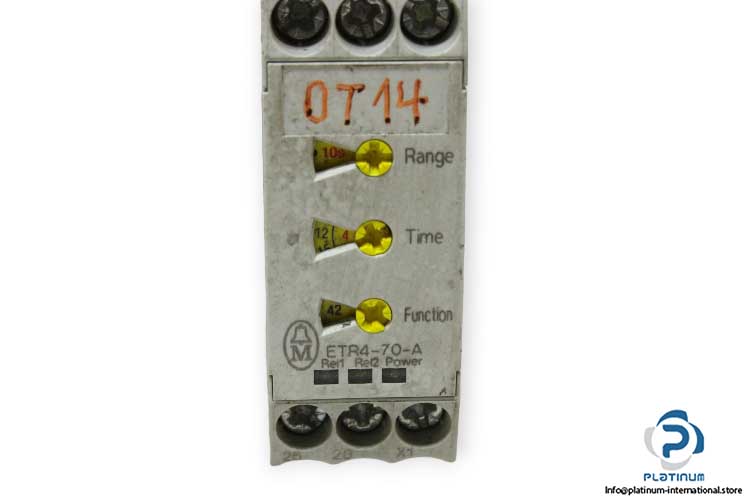

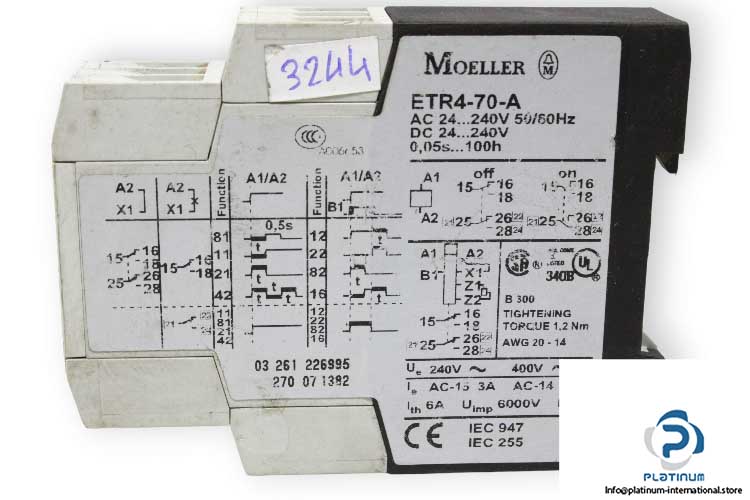

Moeller ETR4-70-A Timer Relay

Manufacturer: Moeller
Type: Timer Relay
Model: ETR4-70-A

Actuating Voltage: 24 … 240 V DC, 24 … 240, 50/60 Hz
Rated Operational current: 3 A
Time Range: 0.05 … 100 h
Function: Multi-functional, On-delayed ,Off-delayed
Output Configuration: 2 Change over contact
Type of electric connection: Screw connection
Thermal current Ith: 6 A
Rated impulse with stand voltage Uimp: 6000 V
Rated insulation voltage: 400 V
Overvoltage category/pollution degree: III/3
Ambient temperature operation: -25 … +60°C
Dimensions: 103 x 22.5 x 82.5 mm
