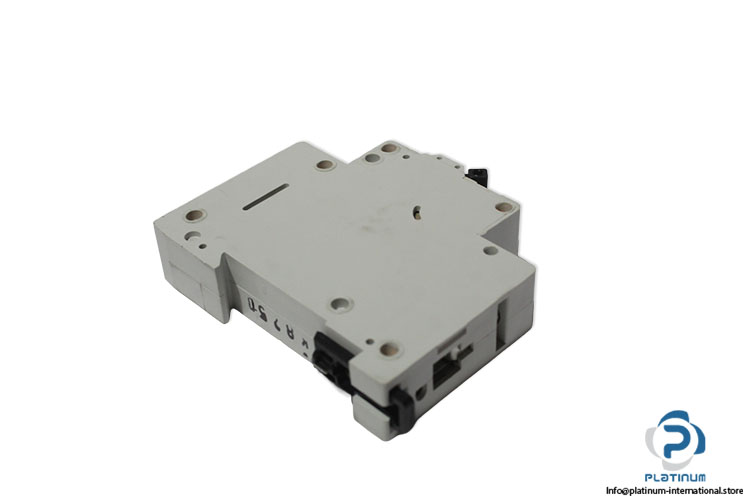

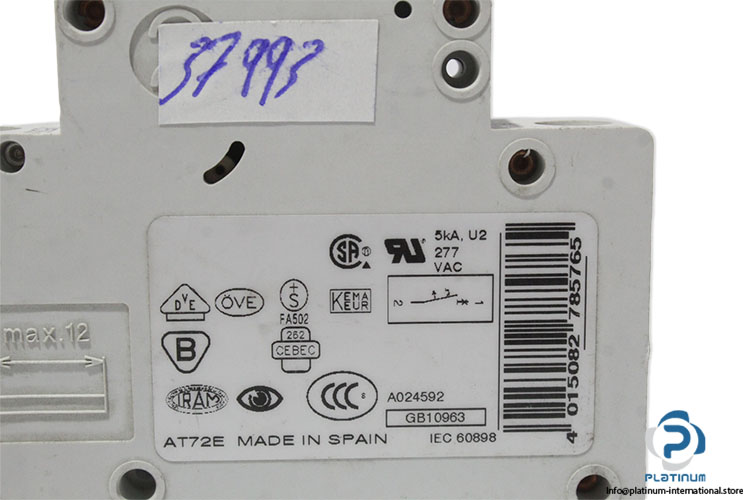

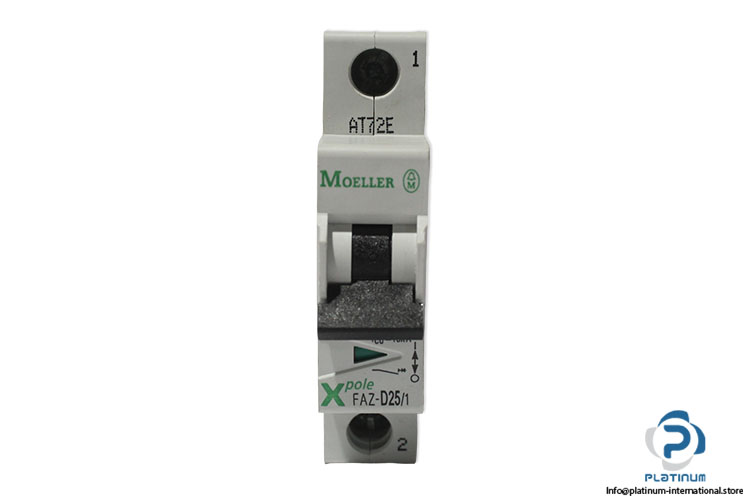

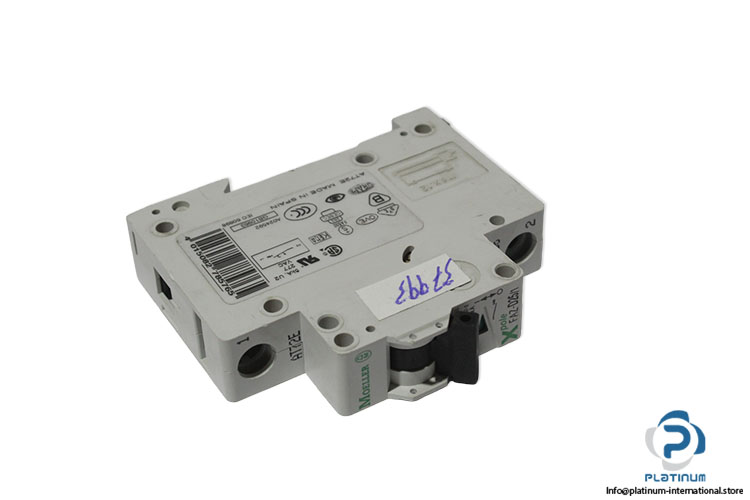

Moeller FAZ-D25/1 Miniature Circuit Breaker
New
In stock1 unitReady to ship
Miniature Circuit Breaker ABB 2-pole miniature circuit breaker with C tripping characteristic, 4 A rated current and DIN-rail mounting, designed for industrial electrical circuit protection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Number of poles | 1 |
| Tripping characteristic | D |
| Rated current | 25 A |
| Rated Impulse Withstand Voltage (U_imp) | 4 kV |
| Rated operational voltage | 240 V |
| Rated insulation voltage | 440V |
| Rated short-circuit breaking capacity 400 V | (EN 60898: 0 kA), (IEC 60947-2: 15 kA) |
| Frequency | 50 – 60 Hz |
| Mounting width per pole | 17,5 mm |
| Enclosure height | 80 mm |
| Degree of Protection | IP20, IP40 |
| Operating ambient temperature | -40 to 75 °C |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093924 |
| Weight | 0,12 |
